The TMG POWER TMGB-50L diesel generator is a powerful and reliable solution for autonomous and emergency power supply to private, commercial, and industrial facilities. The device generates three-phase 400 V voltage and is designed for intensive use, including as a continuous power source. Brand: TMG POWER. Category: Energy Independence > Generators.
The nominal power of the unit is 45.4 kVA / 36.3 kW, and the maximum power is 50 kVA / 40 kW. The automatic voltage regulator ensures stable and high-quality electricity even under variable loads.

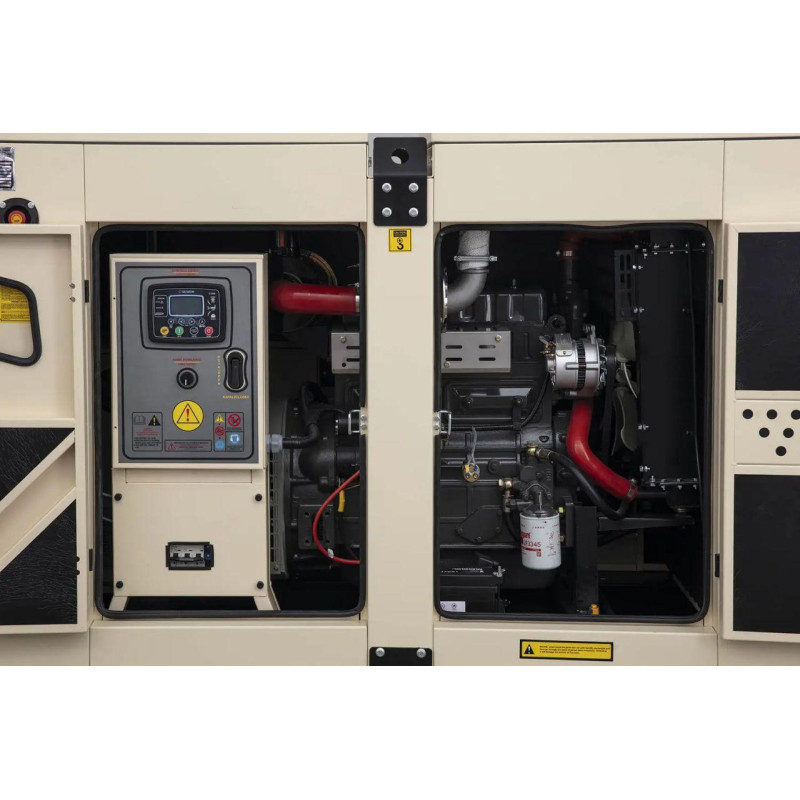

The installed French-made four-stroke universal Baudouin engine guarantees high performance with moderate fuel consumption. The alternator with copper winding minimizes the risk of overheating and increases the generator's reliability. The design also includes an automatic transfer switch (ATS) unit, automatic coolant preheating, and monitoring with automatic battery charging, making operation comfortable in the cold season.

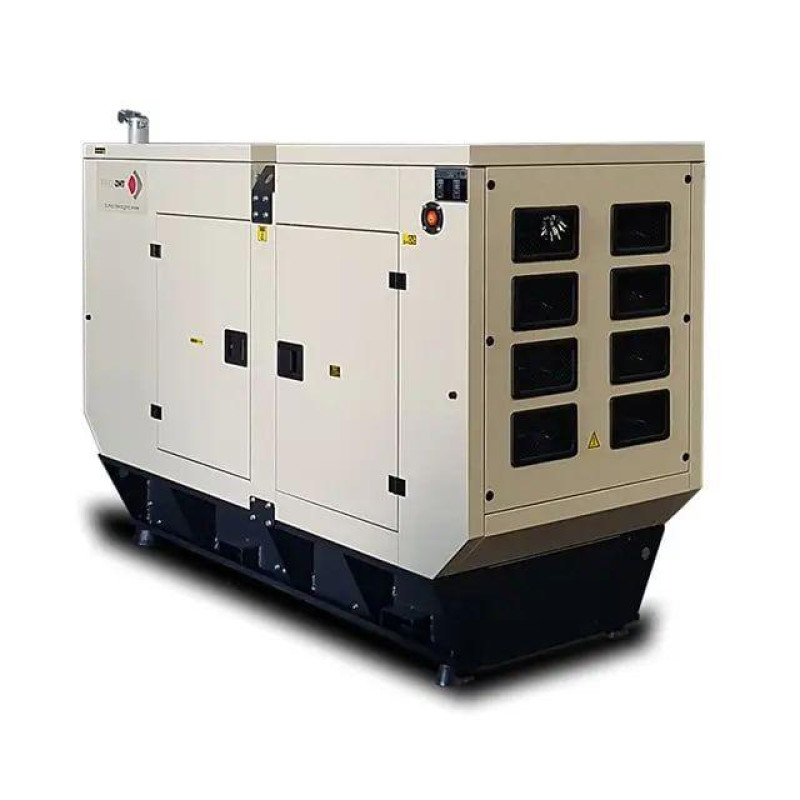

The sound-absorbing all-weather casing with stiffening ribs and sound insulation made of special fiberglass layers reduces noise levels and allows the generator to be installed outdoors without additional shelter. The casing is galvanized and coated with powder polyester paint, which prevents corrosion and moisture penetration into the mechanisms.
Scope of Application for the TMG POWER TMGB-50L Diesel Generator
This generator is effective for powering the following facilities:
- Private households
- Industrial enterprises
- Agricultural sector
- Office premises
- Banking institutions
- Medical facilities
- Other state and commercial facilities
Why Choose the TMG POWER TMGB-50L Diesel Generator
Key features and technical advantages of the equipment:
- Maximum power: 50 kVA / 40 kW; nominal power: 45.4 kVA / 36.3 kW
- Three-phase output voltage 400 V
- 4-stroke universal Baudouin engine
- Copper winding alternator for better heat dissipation and reliability
- Automatic Voltage Regulator (AVR)
- Sound-absorbing all-weather casing with stiffening ribs
- Sound insulation made of special fiberglass layers
- Galvanized casing with powder polyester coating
- Automatic Transfer Switch (ATS) unit included
- Automatic coolant preheating function
- Monitoring and automatic battery charging
- Convenient DATAKOM control panel
- Remote monitoring capability (optional)
- Programming via USB, RS-232, and GSM (optional)
Advantages and Disadvantages of the TMG POWER TMGB-50L Diesel Generator
| Pros | Cons |
|---|---|
| Quite high power | Higher cost compared to budget Chinese engines |
| High-quality electricity | |
| Effective use in all seasons | |
| Simple and intuitive control |
What's Included with the TMG POWER TMGB-50L Diesel Generator
The generator comes with the following equipment:
- Coolant preheater
- Automatic charger
- Battery
- Automatic Transfer Switch (ATS) unit
How to Properly Use the TMG POWER TMGB-50L Diesel Generator
Operation must be carried out in accordance with technical documentation and manufacturer's recommendations. Only a qualified specialist should install, connect, and start the generator. Our specialists can, by arrangement, travel to perform commissioning works.
Tips for Operation and Maintenance
For safety and equipment preservation, it is forbidden to:
- Make changes to the design and mechanisms of the equipment
- Use open flames near a running generator
- Add fuel while the generator is running or the engine is still hot
- Mix different types of fuel and lubricants
Frequently Asked Questions
Answers to the most common questions will help you better understand the generator's features.
Which power should I focus on – nominal or maximum?
Focus on the nominal power (45.4 kVA / 36.3 kW) for continuous operation. Maximum power (50 kVA / 40 kW) is used for short periods during peak loads.
What is the fuel consumption of industrial generators?
Fuel consumption depends on power, load, fuel quality, and other factors. Specific figures can be provided for a particular generator configuration after clarifying operating conditions.
How to properly install and start the generator?
We recommend contacting qualified specialists for installation and startup. Our specialists can perform commissioning at the client's site.
How to calculate the required generator power for my facility?
Power calculation is complex and individual – contact our managers for professional selection and calculation.
What is the difference between air-cooled and liquid-cooled generators?
Air-cooled generators are not designed for long continuous operation and require breaks for cooling. Liquid-cooled generators can operate longer without breaks and are typically used in powerful installations.
The unit uses high-quality components, including a Baudouin engine and alternators from world-class manufacturers such as Leroy-Somer, whose solutions are used by leading generator manufacturers. Leroy-Somer products have been known for efficiency and reliability since 1919.
Our online store offers generators in Lutsk and delivery across Ukraine with the possibility of commissioning works by arrangement.
