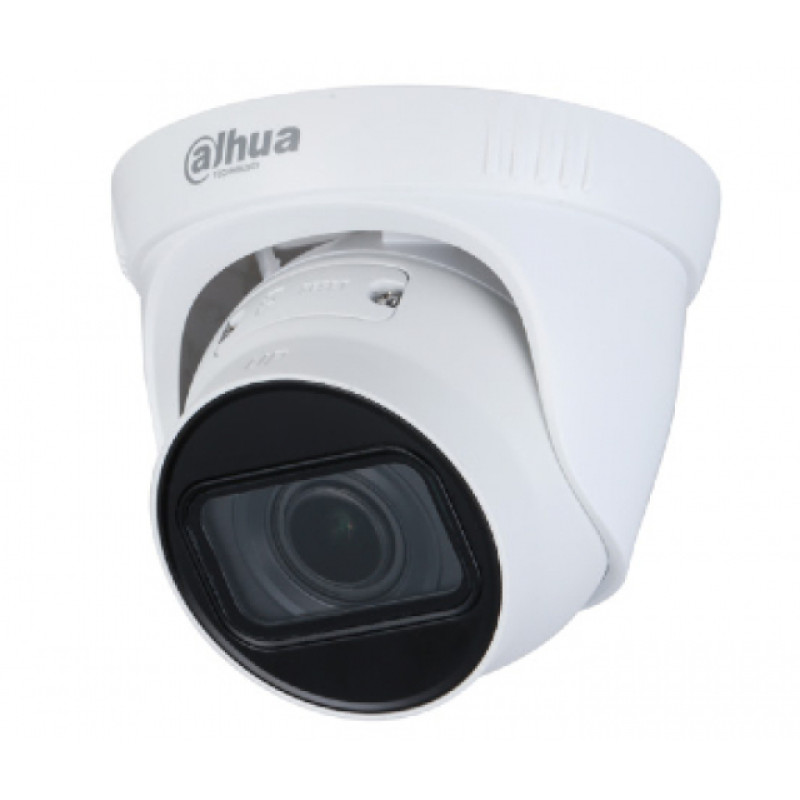

DH-IPC-HDW1230T1-ZS-S5 2MP IP Dahua Vari-focal Eyeball Camera

DH-IPC-HDW1230T1-ZS-S5 2MP IP Video Camera Dahua with Varifocal Lens

Brand: Dahua Lite. Category: Electronics > Video Surveillance > Video Cameras. This compact and functional IP camera is designed for reliable video surveillance in both home and professional security systems. High image quality and a set of modern video processing algorithms make it an optimal choice for entrance groups, offices, stores, and open areas.

Key Technical Specifications:

• Resolution: 2MP IP with varifocal lens
• Sensor: 1/2.8` CMOS
• Video Compression: H.265, H.264, H.264B, Smart H.265+/Smart H.264+
• Lens: f=2.8-12mm (viewing angle 101-33)
• Sensitivity: 0.005 lux F1.5
• Recording: 1080p - 25fps
• Functions: Day/Night (ICR), 3D-DNR, BLC, HLC, DWDR
• PoE Support: PoE (802.3af)

The camera is equipped with a varifocal lens with a focal range from 2.8 to 12 mm, allowing flexible adjustment of the viewing angle from wide (101°) to narrow (33°) for more precise zone control. The 1/2.8` CMOS sensor ensures a clear image at 2MP resolution, and 1080p recording at 25 frames per second provides a smooth picture for playback and event analysis.

The encoding series with H.265 and Smart H.265+ support allows for efficient reduction of stored data volumes without noticeable quality loss, which is important for long-term archiving. The camera includes image quality enhancement functions: 3D-DNR reduces digital noise in challenging lighting conditions, BLC and HLC equalize exposure in scenes with bright light sources, and DWDR provides better visibility in high-contrast conditions.

A sensitivity of 0.005 lux at F1.5 allows for acceptable images even in low light, and the day/night mode with a mechanical IR filter (ICR) automatically switches to ensure maximum shooting quality at dusk and night. PoE (802.3af) support simplifies installation: power and data transmission over a single cable, reducing installation costs and making setup quick and neat.

This Dahua Lite model is suitable for integration with modern network video recorders (NVRs) and monitoring systems, as well as for connection to cloud services and mobile applications, depending on the system configuration. The camera is ideal for those who need a balance between price and functionality, with the ability to precisely adjust the viewing angle thanks to varifocal optics.

Summary: DH-IPC-HDW1230T1-ZS-S5 is a reliable video surveillance solution with 2MP resolution, a varifocal f=2.8-12mm lens (101-33°), a 1/2.8` CMOS sensor, high-efficiency H.265/H.264 compression, and PoE (802.3af) support, combining high-quality imaging and ease of installation.
