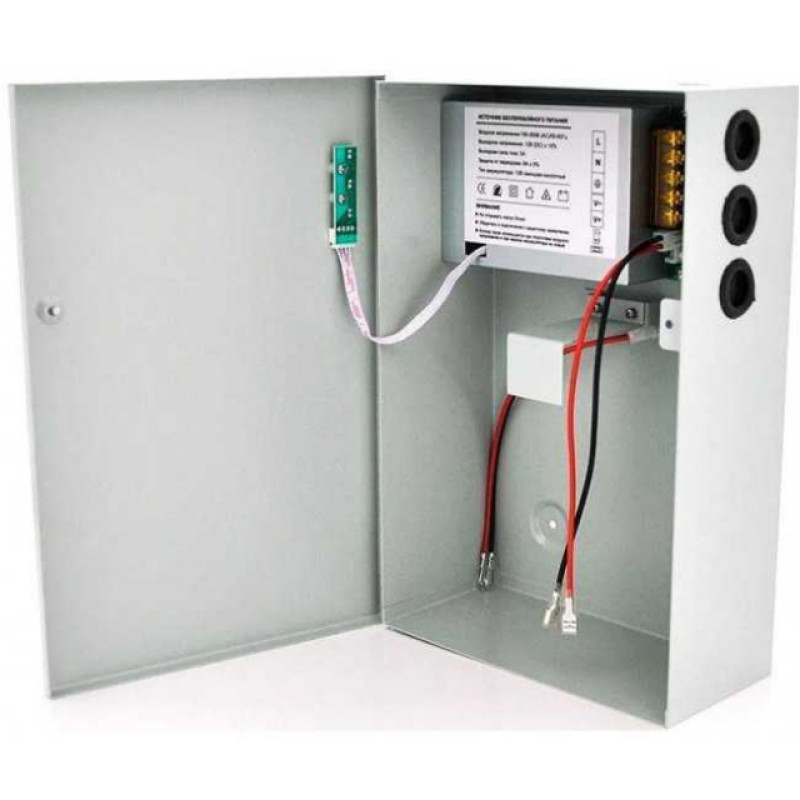

Uninterruptible Power Supply UPS TB-0504-7Ah (U-tex)

The U-TEX UPS TB-0504-7Ah uninterruptible power supply is a compact 12V 5A switching power supply in a metal enclosure, designed to stabilize voltage and protect equipment with a 12V input. The enclosure dimensions allow for the installation of an internal 7-9 Ah battery (a 12V battery of the required capacity is purchased separately). The device is ideal for powering CCTV cameras, video recorders (DVR, NVR), network equipment, security alarms, electronic locks, and other equipment that requires continuous 12-volt power. The built-in automatic switch to battery backup ensures the operation of connected devices during power outages, while protection against overcharge, deep discharge, and short circuit extends the service life of the battery and connected equipment.

Key Features

• Input voltage 100 - 240 V AC (AC 100 - 240V);
• Number of outputs: 2 / 4;
• Output voltage: 12 V ± 5%;
• Output current 5 A;
• U-TEX UPS TB-0504-7Ah power – 60 W;
• Terminal connection;
• Output short-circuit protection;
• Automatic switch to battery backup (АКБ) upon power outage;
• Protection against deep discharge of the battery, optimal battery charging when mains voltage is present;
• Battery overcharge protection;
• Maximum battery charging current up to 0.8 A;
• Electronic output protection against overcurrent, including short circuit, with restoration of normal operation after overload removal;
• Overheat protection;
• Automatic restoration of output voltage after eliminating the cause of the short circuit;
• Light indication of operating modes (LEDs): mains voltage presence, output voltage presence, battery charge;
• Metal enclosure (box);
• Space for 12V 7 - 9 Ah battery;
• Enclosure material – metal;
• Wall-mount capability;
• 12-month warranty.

Purpose and Capabilities

The U-TEX UPS TB-0504-7Ah provides continuous power and overload protection for the entire range of 12V devices. Connecting a sealed maintenance-free 12V battery will ensure autonomous operation during power outages. Thanks to electronic protections, the device independently restores normal operation after eliminating a short circuit or overload, and the built-in indication allows for quick determination of network status and battery charge level.

Package Contents

• U-TEX UPS TB-0504-7Ah – 1 pc.
• Set of keys – 1 pc.

Manufacturer: U-tex. Product category: Energy Independence > Uninterruptible Power Supplies. We recommend using a sealed maintenance-free 12V battery (purchased separately) with a capacity of 7–9 Ah for optimal operation in backup power mode.
