Product Code: FA94-22781-94
356 108 грн.
Buy this product in 1 click:
Main specifications
Battery life, cycles:
7000
Battery status:
LCD display
Battery Terminals:
M8
Battery type:
LiFePO4
Capacity, Wh:
2560
All specifications
We will deliver this product:
Payment
Specifications
Battery life, cycles
7000

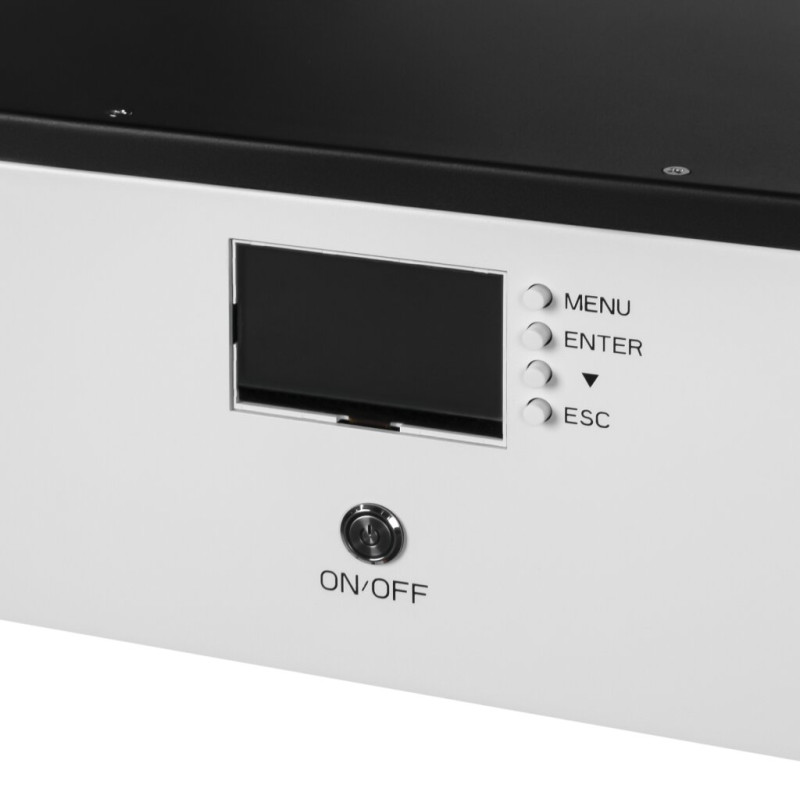

Battery status
LCD display
Battery Terminals
M8
Battery type
LiFePO4
Capacity, Wh
2560
Capacity, Wh
15000
Charge cut-off voltage, V
58.4±0.2
Charging stages
3 Stages

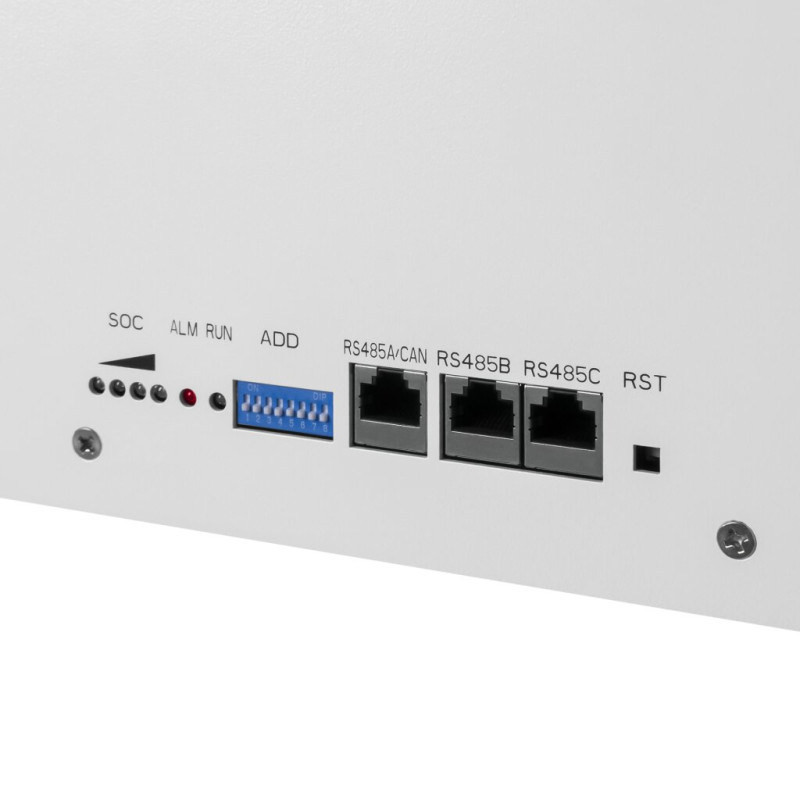

Communication mode
RS485/CANBUS
DC voltage range at full load, V
300-425
Discharge cut-off voltage, V
40±0.2
Efficiency (Euro classification), %
97
Housing
metal
Inverter type
hybrid
Max MPPT current, A
17+17
Max. battery discharge current, A
200
Maximum battery charge current, A
200
Maximum Efficiency, %
97.6
Maximum solar array power, W
6500
MPPT Current, A
13+13
MPPT Efficiency, %
99.9
MPPT nominal voltage, V
370
MPPT operating range, V
150-425
MPPT Start, V
150
Noise, dB
≤30
Number of MPPT trackers, pcs
2
Number of Phases
1
Number of PV inputs, pcs
1+1
Operating temperature range, C
0 ~ +45
Operating temperature range, discharge, C
-5 ~ +55
Output frequency, Hz
50/60Hz (software selectable)
Output voltage waveform
pure sine wave
Power, VA/W
5000/5000
Protection level
IP65
Type
Backup Power Systems
Voltage range, V
125-500
Warranty
60
