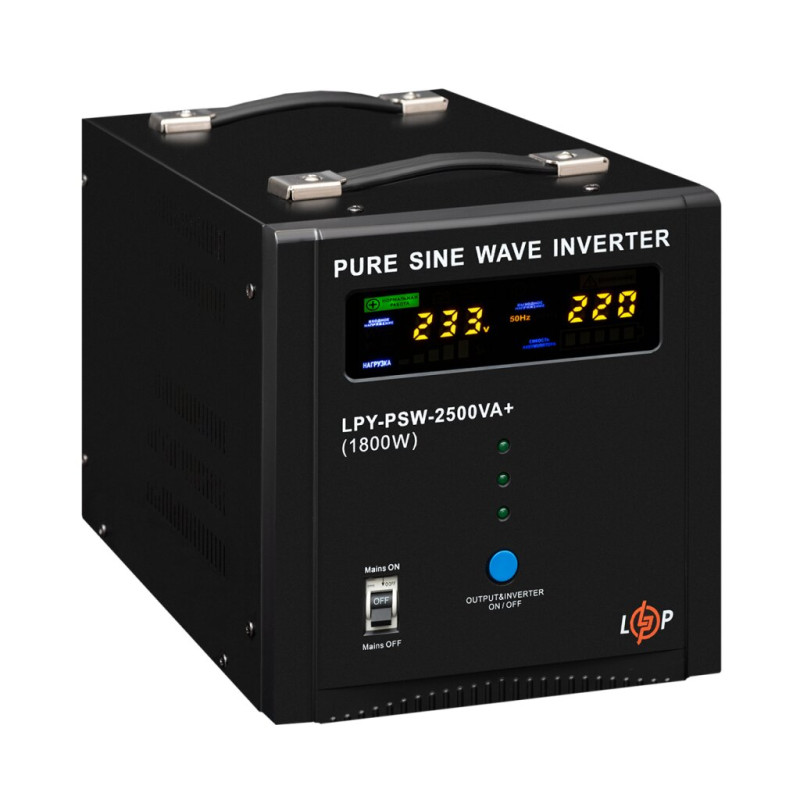

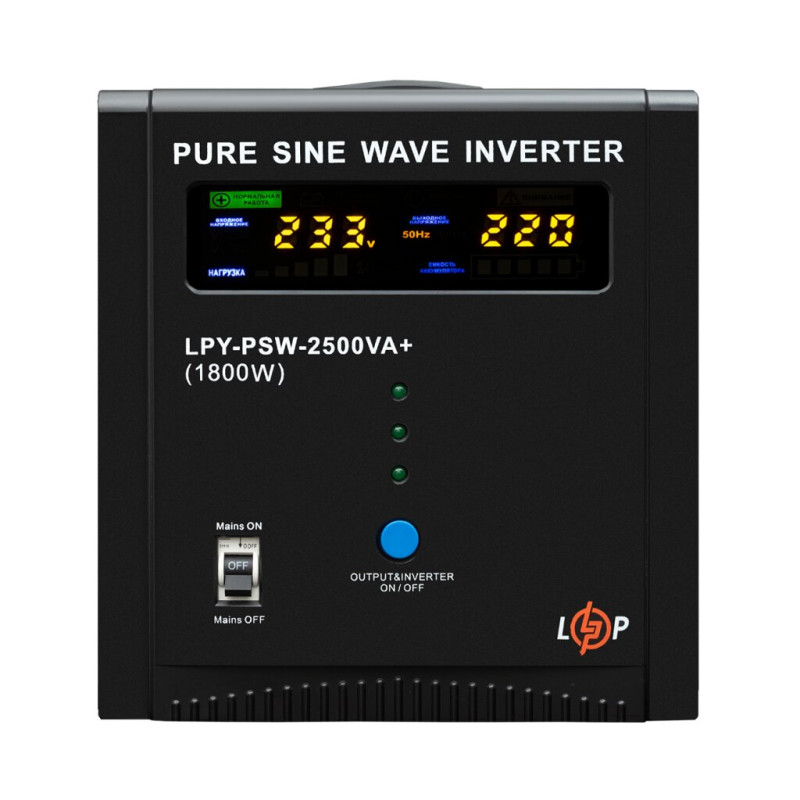

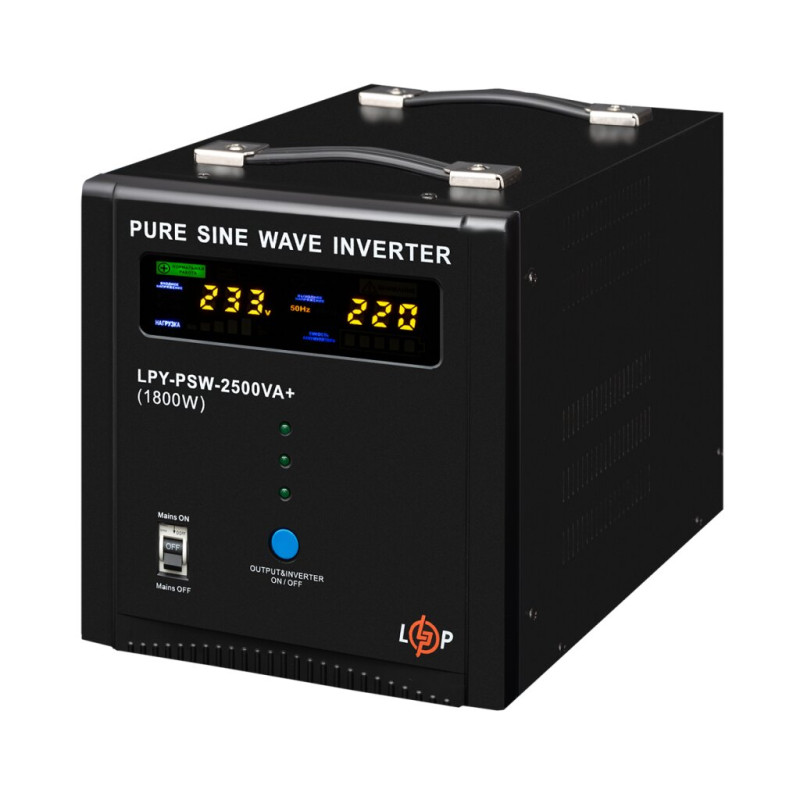

UPS with Pure Sine Wave LPY-PSW-2500VA+ (1800W) 10A/20A

Uninterruptible power supplies (UPS) with pure sine wave output provide autonomous operation of electrical equipment from a battery in case of power outage from the main grid.

The output voltage in the form of a pure sine wave allows the use of this type of UPS for electrical equipment:

• with transformer power supplies
• with large inductive coils
• with chokes
• with APFC (active power factor correction) power supplies, etc.

The LPY-PSW-2500VA+ (1800W) 10A/20A uninterruptible power supply has a built-in voltage stabilization function in the range from 140-275V at the input to 220±10% at the output.

The UPS must be used only with a battery that meets the technical specifications of the device.

Types of external batteries that can be connected to the UPS:

• Lead-acid AGM. Service life - up to 400 charge/discharge cycles

• AGM (multigel). Service life - up to 800 charge/discharge cycles

• Gel battery. Service life - up to 1200 charge/discharge cycles

• Lithium iron phosphate battery adapted for use with an uninterruptible power supply (UPS). Service life up to 7000 charge/discharge cycles.

3 steps to connect the UPS:

1. Connect the battery observing polarity;
2. Connect the UPS to the mains by plugging the UPS into a 220V socket;
3. Wait for self-diagnosis to complete and the UPS to turn on.

Attention! The UPS will turn on automatically! Do not press the power button or interrupt self-diagnosis!

UPS with pure sine wave and external battery are used:

• as uninterruptible power supplies for gas or solid fuel heating boilers
• UPS for emergency lighting
• to provide backup power for server stations and telecommunication equipment, thanks to the hot-swap battery function
• UPS with pure sine wave for circulation pumps
• as a voltage stabilizer with a backup power source for powerful and high-speed computers

How to choose a UPS for heating boilers and emergency lighting systems?

Before buying a UPS with a pure sine wave, you need to consider the following technical characteristics:

• Total power of electrical appliances that will be connected to the UPS. This parameter can be found in the technical documentation of each piece of equipment.

• Starting power – the amount of electricity consumed by the device when it is turned on. To connect a UPS to equipment with high inrush currents, you need to choose a more powerful UPS model.

• Required time for autonomous operation from the battery. Determined by the individual needs of the consumer. For long-term autonomous operation, you should choose a UPS with a pure sine wave output to which an external battery can be connected.

The UPS with pure sine wave LPY-W-PSW-2500VA+ (1800W) 10A/20A has a power of 2500/1800 W.

Where can you buy an inexpensive and high-quality uninterruptible power supply with a pure sine wave in Ukraine?

LogicPower company is a leading manufacturer of electrical equipment in Ukraine!

By purchasing a UPS on the official LogicPower website, you get:

• High-quality and efficient equipment at an affordable price. LogicPower offers the opportunity to buy an uninterruptible power supply complete with a battery at manufacturer's prices.

• Professional managers who will competently advise on how to choose a UPS based on the client's individual needs and help place an order.

• Several payment methods: prepayment, payment to card, cash on delivery, as well as "instant installment" and "payment in parts" from PrivatBank.

• Quality guarantee and technical support. We provide an official manufacturer's warranty for 24 months.
