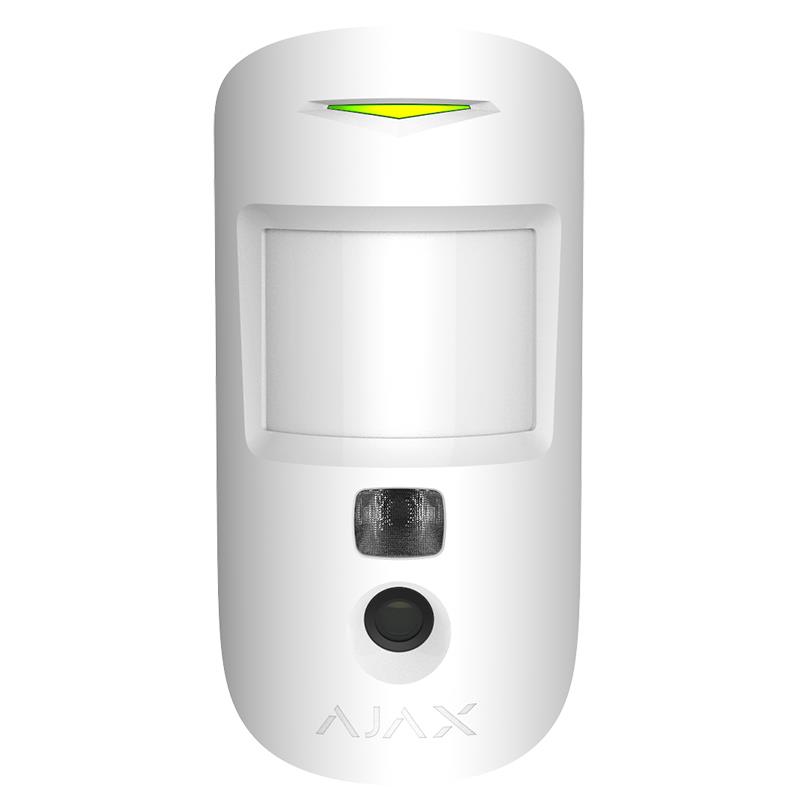

MotionCam is a wireless motion detector with photo verification of alarms for indoor use. The detector operates for up to 4 years on the included batteries, detects motion at a distance of up to 12 meters, recognizing a person from the first step. MotionCam detects intrusion into a protected area by using an infrared sensor to detect moving objects with a temperature close to that of the human body. Thanks to the temperature compensation function, the sensor is effective in rooms with temperatures from 0 to +40 °C. With proper placement and settings, MotionCam does not react to pets.
When the sensor is triggered, the built-in MotionCam camera can take 1 to 5 photos with a resolution of 320 × 240 and up to 3 photos with a resolution of 640 × 480 pixels. A series of photos is played back in the application as an animation, allowing you to assess the event in dynamics. Photos are available both in Ajax applications and in the monitoring station software of the security company. Before sending images to the hub, MotionCam uses the Wings radio protocol. For shooting in the dark, the sensor is equipped with infrared illumination, which is activated only when an alarm occurs.

An important aspect of the sensor is that it only works with Ajax Hub 2!

Technical parameters

Optical-electronic radio channel security detector
Sensor type: Wireless
Installation: Indoors
Motion detection range: Up to 12 m
Pet immunity:
Weight — up to 20 kg
Height — up to 50 cm
Compatibility: Works only with Hub 2
Sensitive element: PIR sensor
Motion sensor viewing angle:
Horizontal — 88.5°
Vertical — 80°
Camera viewing angle: 90°
Alarm signal delivery time: 0.15 s
Photo on alarm
Photo delivery time with default settings: up to 9 seconds
Image resolution: up to 640 × 480 pixels
Photos in series: 1-5 pieces
Infrared illumination for shooting in the dark
Recommended installation height: 2.4 m
Power supply: Power element: 2 CR123A batteries, 3 V
Battery life:
Up to 4 years (up to 2.5 years if "Entry delay" setting is enabled)
Radio protocol: Jeweller
Communication range with sensors — up to 1700 m in open space
Two-way communication between devices
Operating frequencies — 868.0 - 868.6 MHz
Self-regulating radio signal power — up to 20 mW
Block encryption based on AES algorithm
Sensor polling period — 12-300 seconds
Radio protocol: Wings
Transmission: series of photos
Temperature sensor: Yes
Operating temperature range:
From 0°C to +40°C (production date before June 1, 2020)
From -10°C to +40°C (production date from June 1, 2020)
Permissible humidity: Up to 75%
Anti-sabotage
Jamming notification
Tamper for opening and attempt to detach from mounting
Compatibility with CMS
Protection class: IP50
Dimensions: 135 × 70 × 60 mm
Weight: 167 g
Warranty: Warranty service for 24 months from the date of sale. Warranty does not cover the battery

Package contents

MotionCam motion detector
SmartBracket mounting panel
2 CR123A power elements (pre-installed)
Mounting kit
User manual
