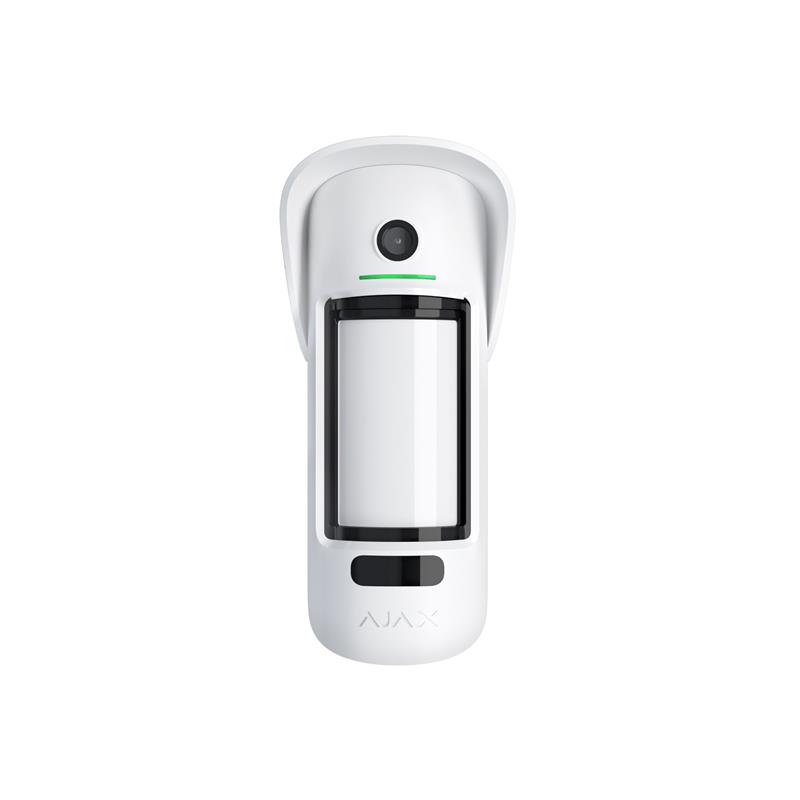

MotionCam Outdoor - wireless outdoor motion detector with photo camera for alarm verification

Lightning-fast response. Verified alarms

MotionCam Outdoor detects intrusion into the territory from the first steps and confirms it with an animated series of photos. Visual verification helps to instantly assess the situation, saving users unnecessary worry and security companies from futile patrol dispatches.

Detected motion -> Raised alarm -> Sent evidence

Won't miss a single detail

Combining the best optics, a fast processor, and advanced software algorithms, MotionCam Outdoor takes informative shots in any weather, day or night.

• HDR camera
• IR illumination
• Series of 2-5 frames

A camera designed for security

An outdoor camera often has to shoot in challenging lighting conditions. Direct sunlight, reflective surfaces, or streetlights can blind the camera, depriving the image of important details. This is unacceptable for a security device. We faced the challenge of obtaining a clear and contrasting image that would confirm an intrusion in seconds and allow the security company to react in time.

Quality in detail

We abandoned plastic optics and made a waterproof lens from glass and metal. The wide-angle lens covers the entire protected area, providing a complete picture of what is happening. In bright light, an infrared filter is automatically applied, ensuring color reproduction without distortion, and two bright IR LEDs help to see an intruder even in absolute darkness.

To take one photo, the MotionCam Outdoor camera takes two consecutive frames with long and short exposures. The processor instantly combines the frames, balancing light and dark areas of the photo, then compresses it for the fastest possible transmission.

Thanks to the HDR function, the sensor uses IR illumination less in the dark, saving battery power.

Intelligent false alarm filter

MotionCam Outdoor is equipped with two independent IR sensors, whose signals are analyzed by the two-stage LISA algorithm. As soon as both IR sensors detect motion, LISA performs a correlation and spectral analysis of the signals, allowing it to instantly distinguish a real threat from interference.

Correlation analysis

During each motion detection, the LISA algorithm analyzes and compares the shapes of two signals in real time. If the shapes are similar, the sensor raises an alarm.

Spectral analysis

If both sensors detect motion, but the correlation analysis does not reveal sufficient similarity in shapes, LISA compares the frequency components of the signals from the two sensors.

Multi-level anti-sabotage protection

MotionCam Outdoor cannot be secretly disabled, even if the system is disarmed. The sensor is equipped with masking sensors that react to obstructions, covering, and painting of the lens.

The hub will take less than a minute to detect loss of communication with the sensor and notify the security console and users. It will be instantly known if MotionCam Outdoor has been dismantled.

• Anti-masking system
• Notification of detachment from mounting
• Flexible hub-sensor polling periods

Reliable security in any weather

MotionCam Outdoor withstands temperatures from -25°C to +60°C, and we have provided a special canopy to protect the masking system sensors from rain and snow.

• Effective in heat and cold
• IP54 enclosure protection
• Canopy for rain and snow protection included

Uncompromising communication reliability

MotionCam Outdoor uses two secure radio protocols simultaneously: Jeweller and Wings. The radio protocols operate independently of each other, and each is tailored to its function. Jeweller transmits alarms in 0.15 seconds, and thanks to Wings, the first image from the scene will be in the application in less than 9 seconds.

The radio signal range is sufficient to install the sensor where it will be most effective. And a battery life of up to 3 years from pre-installed batteries minimizes maintenance efforts.

• Two-way communication with the hub up to 1700 meters away
• Photo delivery in less than 9 seconds
• Up to 3 years of operation on included batteries

Minimum manual labor. Maximum settings in the app.

The process of connecting and configuring MotionCam Outdoor saves the installation engineer's time as much as possible. To add the sensor to the system, simply scan the QR code with the Ajax app, give it a name and room. Configuration takes place in the app in real time using detection zone and signal level tests. If necessary, the sensor can be temporarily disabled or reconfigured without visiting the protected object.

Technical parameters

Classification: Optical-electronic radio channel security detector

Sensor type: Wireless

Installation method: Outdoor / indoor

Installation height: 0.8 – 1.3 m

Compatibility:

• Hub 2
• Hub 2 Plus
• Does not work with ReX range extenders

Sensitive element: Two IR sensors

Motion detection range: Adjustable, from 3 to 15 m

Pet immunity: Up to 80 cm tall

Sensitivity: Adjustable, 3 levels

Motion sensor viewing angle:

• Horizontal 88.5°
• Vertical 80°

Camera viewing angle:

• Horizontal 105°
• Vertical 102°

Distortion: Barrel, –77%

Photos on alarm

• Photo resolution: 320 × 176 pixels (default) or 640 × 352 pixels
• Series of up to 5 frames

Infrared illumination for shooting in the dark: Yes

Power:

• 4 CR123A batteries
• Power supply voltage 3 V
• Battery life Up to 3 years (up to 2.5 years with "Entry delay" option enabled)

Calculate battery life

Jeweller radio protocol:

• Communication range with central unit — up to 1700 meters in open space
• Two-way communication between hub and device
• Operating frequencies — 868.0−868.6 MHz34
• Self-regulating radio signal power — up to 20 mW
• Block encryption with floating key
• Sensor polling period — 12–300 seconds
• Frequency hopping

Alarm signal delivery time 0.15 s

Wings radio protocol:

• Transmission of photo series
• Photo delivery time with standard settings — up to 9 seconds
• Temperature sensor: Yes

Operating temperature range: From −25°С to +60°С

Permissible humidity: Up to 95%

Protection class: IP55

Anti-sabotage:

• Anti-masking
• Tamper protection
• Jamming notification
• Tamper for opening and detachment

Remote configuration and testing: +

Compatibility with CMS: Motion alarms are transmitted to CMS supporting SIA (DC-09) and Contact ID protocols.

Dimensions: 206 x 108 x 93 mm

Weight: 470 g

Warranty: 24 months from date of sale
