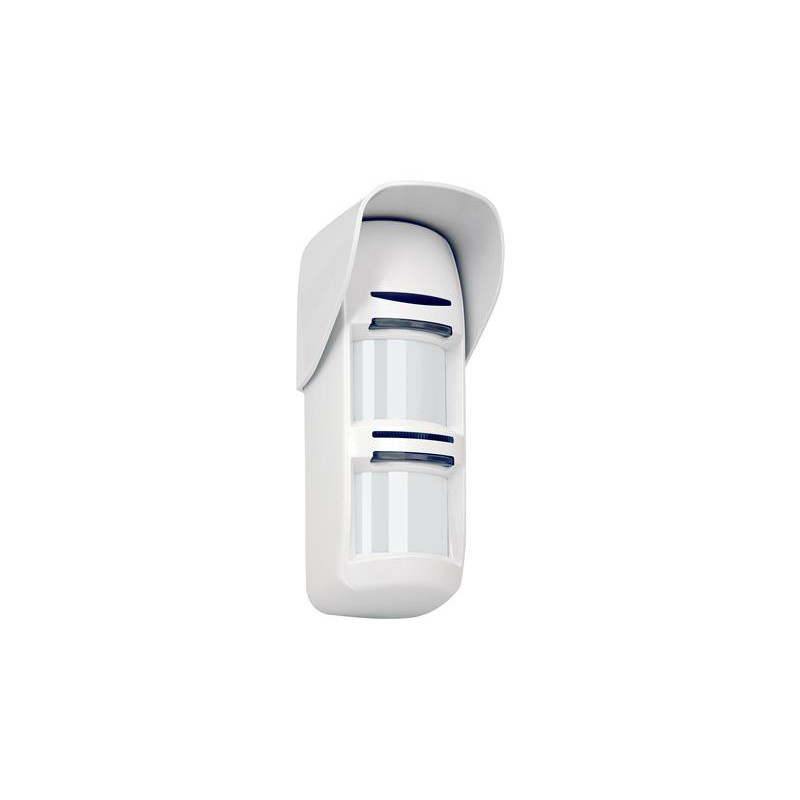

U?Prox PIR Outdoor V2 is a wireless outdoor motion sensor with passive infrared technology, protection against adverse weather conditions (IP55), anti-masking, and pet immunity for animals up to 80?cm tall. Its robust design makes this device ideal for outdoor perimeter security.
Key advantages:
-
Motion detection at a distance of 3 to 15?m with a 90° coverage angle.
-
Anti-masking system reacts to full or partial lens obstruction.
-
Light immunity over 6500?Lux minimizes false alarms in bright light.
-
Powered by two CR123A batteries, with a lifespan of up to 5 years.
-
Supports over-the-air (OTA) firmware updates.
-
Sensitivity adjustment via mobile application.
-
Operates on frequencies 868–868.6 MHz (EU/Ukraine) or 916.5–917 MHz (Australia), encrypted two-way radio communication with a range of up to 4800?m (in open space).
-
Operating temperature: from −20 to +55?°C, humidity up to 95%.
Specifications
| CharacteristicValue | |
|---|---|
| Detection range | 3–15?m |
| Viewing angle | 90° |
| Object speed | 0.2–5?m/s |
| Light immunity | >6500?Lux |
| Pet immunity | Up to 80?cm in height |
| Recommended mounting height | 0.9–1.1?m |
| Protection rating | IP55 |
| Power supply | 2×CR123A (3?V) |
| Battery life | Up to 5 years |
| Radio frequency bands | 868–868.6?MHz (EU/UA), 916.5–917?MHz (AU) |
| Communication range | Up to 4800?m (open area) |
| Communication type and encryption | Two-way, 256-bit |
| Anti-masking | Detects full and partial lens obstruction |
| OTA firmware updates | Supported |
| Operating temperature | −20 to +55?°C |
| Maximum humidity | Up to 95% |
| Environmental class | III (according to EN?50131) |
| Dimensions with visor | 183.8 × 77.2 × 88.6?mm |
| Dimensions without visor | 180 × 70 × 62.5?mm |
| Weight | 290?g |
| Package contents | Sensor, protective visor, mounting kit, 2 CR123A batteries |
| Warranty | 2 years (excluding batteries) |
