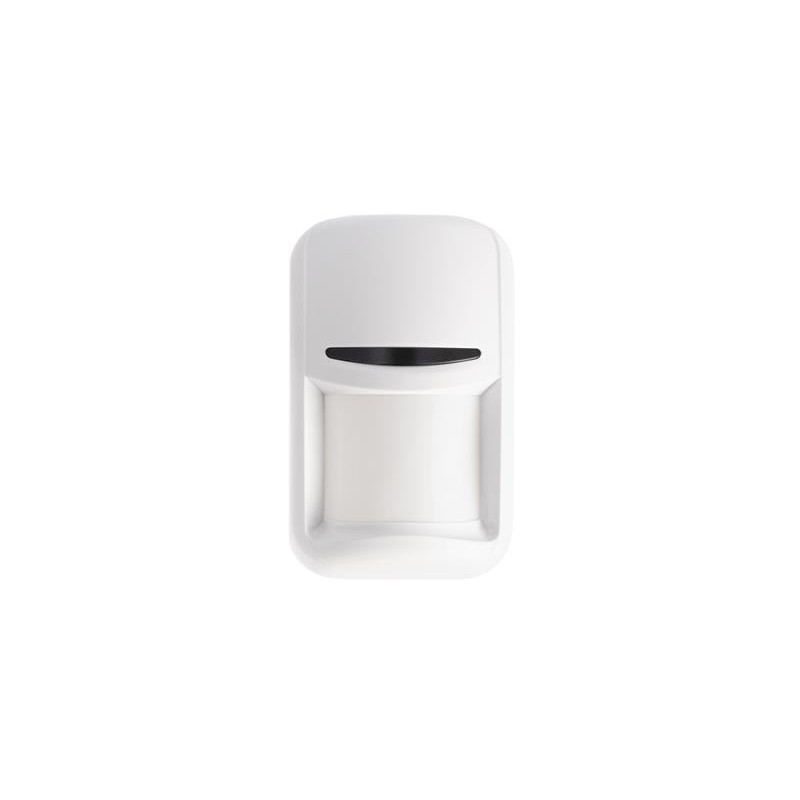

U-Prox PIR — is a reliable wireless infrared motion sensor designed for securing various types of premises: apartments, offices, shops, or warehouse areas. The device quickly detects thermal changes in the coverage area and transmits an alarm signal to the security system. Thanks to modern analysis algorithms and high light immunity, it accurately recognizes real threats and ignores false alarms, for example, from pets.
The sensor has a detection range of up to 12 meters with a wide viewing angle of 88°. It recognizes motion at speeds from 0.3 to 3 meters per second. Equipped with pet immunity for animals weighing up to 20 kg, allowing its use in premises with pets. Light immunity of over 6500 Lux ensures stable operation even in bright sunlight.
It operates at 868 MHz via a secure two-way radio channel with 256-bit encryption, guaranteeing data transmission security. Power is supplied by one CR123A battery, and its service life is up to 5 years, depending on usage conditions. The sensor supports remote firmware updates (OTA) and has sabotage protection. Installation is possible using flat or corner brackets, which are included in the kit. It operates in a temperature range from –10 to +55 °C.
Technical Specifications
| Characteristic | Value |
|---|---|
| Device Type | Wireless Infrared (PIR) Motion Sensor |
| Detection Range | up to 12 m |
| Viewing Angle | 88° |
| Object Speed | 0.3–3 m/s |
| Pet Immunity | up to 20 kg |
| Light Immunity | >6500 Lux |
| Radio Frequency | 868–868.6 MHz |
| Communication Range | up to 4800 m (in open area) |
| Encryption | Two-way, 256 bit |
| Power Supply | 1×CR123A (3 V) |
| Battery Life | up to 5 years |
| Firmware Update (OTA) | Supported |
| Operating Temperature | from –10 to +55 °C |
| Permissible Humidity | up to 75 % |
| Protection Class | II, EN 50131?1, Grade 2 |
| Dimensions without bracket | 90×60×34.35 mm |
| Dimensions with bracket | 90×60×41.6 mm (flat) / 90×60×48.84 mm (corner) |
| Weight | 130 g |
| Housing Color | White or Black |
| Package Contents | Sensor, battery, brackets, mounting kit |
| Warranty | 24 months |
