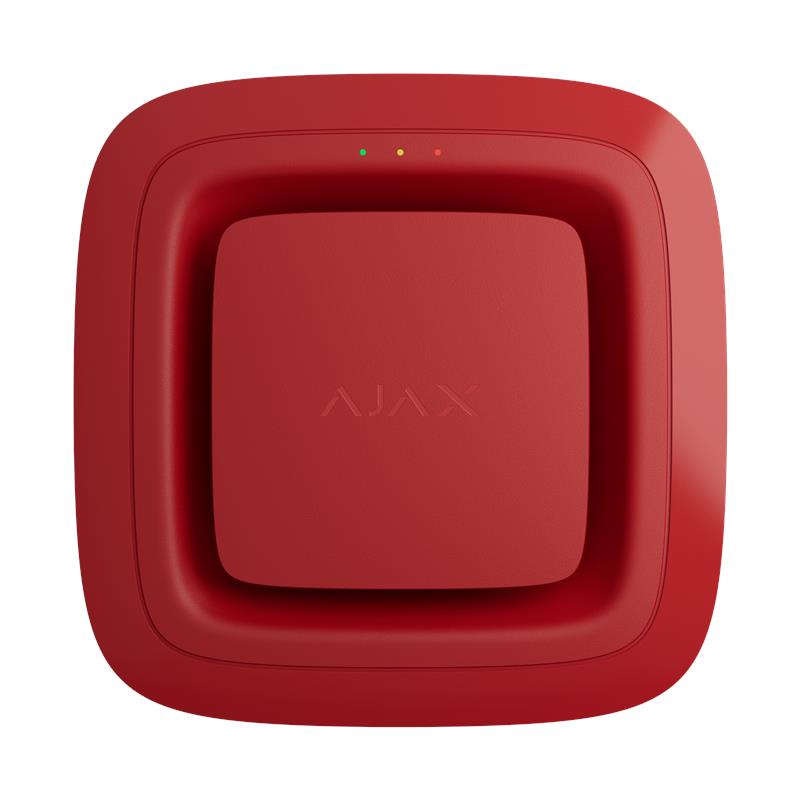

The Ajax EN54 FireProtect Sounder Jeweller is a wireless addressable fire alarm sounder designed for prompt fire notification with an audible signal. The device is certified to EN 54-3 (sounder devices) and EN 54-25 standards, providing a loud and clear warning in commercial and public premises.
Upon receiving an alarm signal from connected fire detectors or the hub, the built-in siren emits a signal with a loudness of approximately 85–100 dB at 1 meter, which corresponds to the EN 54-3 temporal pattern. The signal continues until the alarm is canceled or manually turned off by the user.
Data transmission to the central unit is carried out via the secure Jeweller radio protocol (868 MHz), which ensures stable two-way communication at a distance of up to 1700–2000 m in open space. The device constantly monitors its status, transmitting information about low battery, tamper activation, loss of connection, or malfunctions with precise indication of the device and zone.
Power is provided by a pre-installed CR123A battery with an additional backup CR2032 battery to support the tamper function. The device's battery life is up to 5 years at a standard polling interval.
Installation is carried out via the SmartBracket system, which allows the device to be mounted without disassembly. Connection to the system is performed quickly via a QR code in the mobile application. LED indicators (green, yellow, red) allow for quick checking of the device's status.
Key Features
-
EN 54-3 (audible alarm) and EN 54-25 certification
-
Sound signal volume: 85–100 dB at 1 m (EN 54-3 temporal pattern)
-
Automatic notification upon fire detector activation
-
Jeweller protocol with communication range up to 1700–2000 m
-
Status monitoring: low battery, tamper, loss of connection
-
Up to 5 years of battery life
-
Simple SmartBracket installation, quick connection via QR code
-
Full integration into the Ajax system with transmission of all events
Specifications Table
| Parameter | Value |
|---|---|
| Certification | EN 54-3 (audible alarm), EN 54-25 |
| Device Type | Wireless fire alarm sounder |
| Sound Signal | 85–100 dB at 1 m, EN 54-3 temporal pattern |
| Activation | From fire detector or Ajax hub |
| Communication Range (Jeweller) | Up to 1700–2000 m in open space |
| Frequency / Protocol | 868 MHz, Jeweller, two-way communication, AES encryption |
| Power Supply | Main battery CR123A; backup CR2032 for tamper |
| Battery Life | Up to 5 years (36 s polling interval) |
| Operating Temperature | 0 °C to +65 °C, humidity up to 80 % |
| Mounting | SmartBracket, adding via QR code |
| Status Indication | LED indicators: battery, connection, tamper, malfunctions |
| Event Transmission | Signal activation, tamper, low battery, connection loss |
| Warranty | 2 years (batteries not included in warranty) |
