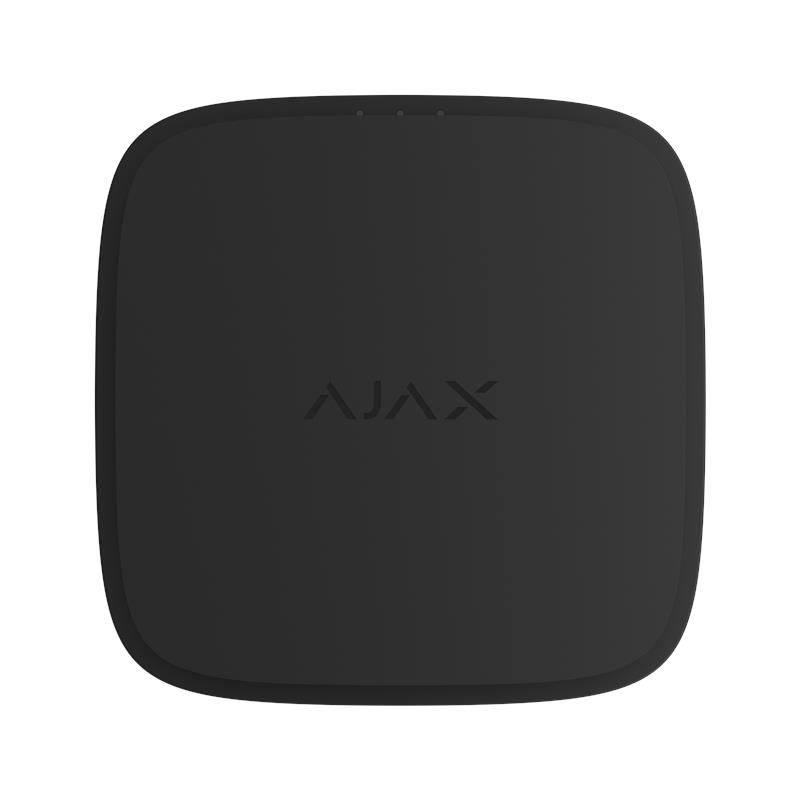

The Ajax EN54 FireProtect Heat/Sounder is a wireless certified fire heat detector with a built-in siren, compliant with EN 54-5 (heat detector classes A1/A1R/A1S, B/BR/BS, C/CR/CS) and EN 54-3 (audible alarm) standards. The device is designed to protect premises where smoke detectors are less effective: kitchens, garages, workshops, and utility rooms. It reacts to reaching a critical temperature or its rapid increase, activating the built-in siren with a volume of up to 85 dB.
The detector transmits information to the central module EN54 Fire Hub Jeweller via the secure Jeweller radio protocol, ensuring stable two-way communication at a distance of up to 1700 m in open space. The device is equipped with tamper protection, radio signal jamming detection, and synchronization of all detectors in the system.
The detector's sensors analyze temperature changes: they react to both exceeding a set threshold and an abnormally rapid increase. Upon activation, the siren emits an audible signal compliant with EN 54-3, simultaneously with visual LED indication. All devices in the system simultaneously alert to danger.
Power is provided by a pre-installed CR123A/CR2 battery, which guarantees up to 5 years of autonomous operation with a standard polling interval of 36 seconds. An additional CR2032 backup battery supports the Tamper protection functionality.
Detector installation is simplified thanks to the SmartBracket mount, which allows the device to be installed without disassembly. Connection to the system takes a few seconds via a mobile application and QR code. LED indication allows for easy checking of the device status.
The Ajax EN54 FireProtect Heat/Sounder transmits all events to the central monitoring station or security company via supported protocols (Contact ID, ADEMCO 685, SIA), including activation, malfunctions, communication status, and battery charge level.
Key Advantages
-
EN 54 certification for use in professional fire systems
-
Up to 5 years of autonomous battery operation
-
Communication range up to 1700 m in open space
-
Built-in 85 dB siren for instant local notification
-
Addressability of each device and identification zone
-
Tamper protection and radio signal jamming detection
-
Simple installation without disassembly thanks to SmartBracket
-
Integration into third-party systems via ocBridge Plus or uartBridge
-
Synchronous notification of all detectors in the system
-
Full transmission of statuses and events to the security console
Specifications Table
| Parameter | Value |
|---|---|
| Certification Standards | EN 54-5 (heat), EN 54-3 (sound) |
| Detector Type | Wireless heat with built-in siren |
| Heat Detection Classes | A1/A1R/A1S, B/BR/BS, C/CR/CS, fixed temperature |
| Temperature Threshold | From +45 °C to +85 °C (adjustable), rapid rise detection |
| Siren Volume | 85 dB |
| Communication Range (Jeweller) | Up to 1700 m in open space |
| Frequency/Protocol | 868 MHz, Jeweller, two-way communication, AES encryption |
| Power Supply | CR123A/CR2 main battery + CR2032 backup |
| Battery Life | Up to 5 years (at 36 s polling interval) |
| Operating Temperature Range | From 0 °C to +65 °C, humidity up to 80 % |
| Dimensions / Weight | 132 × 132 × 31 mm; 220 g |
| Radio Protection | AES encryption, jamming detection, Tamper |
| System Integration | Ajax Hub, ocBridge Plus, uartBridge |
| Transmitted Events | Fire, restore, malfunction, low battery, Tamper, communication |
| Mounting | SmartBracket, installation via QR code |
| Warranty | 2 years (batteries not included in warranty) |
