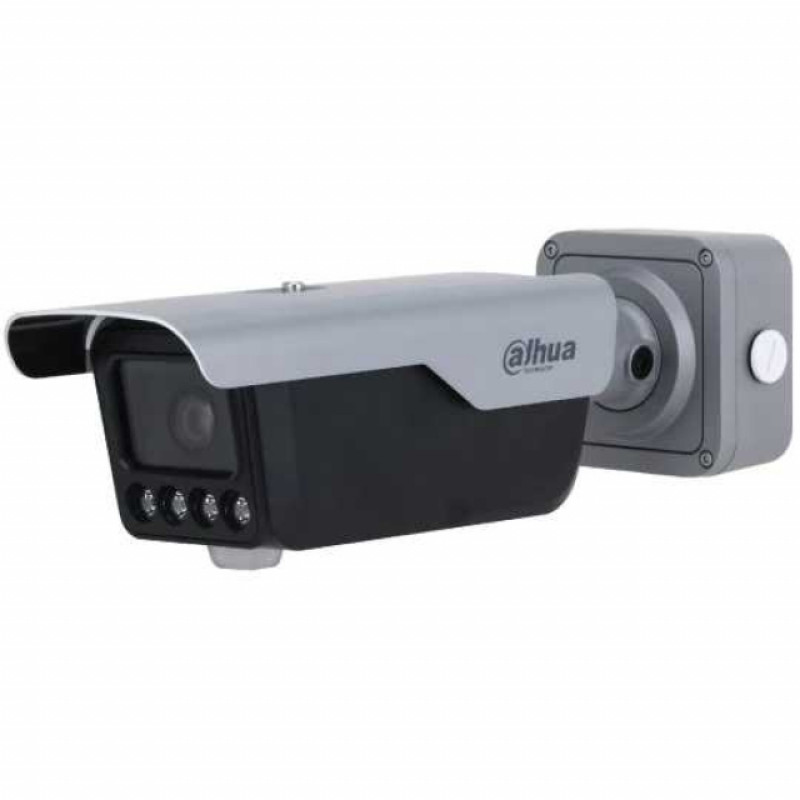

Dahua DHI-ITC413-PW4D-IZ3 (8-32mm). ANPR Camera

Dahua DHI-ITC413-PW4D-IZ3 (8-32mm) — ANPR Camera

Brand: Dahua. Product type: Electronics > Video Surveillance > Video Cameras. This Dahua DHI-ITC413-PW4D-IZ3 model is designed for ANPR (Automatic Number Plate Recognition) tasks and provides high-quality imaging for effective traffic analysis in various lighting and weather conditions. The camera combines optical variable focal length, advanced codecs, and a set of image enhancements, allowing for clear footage even in complex high-contrast scenes.

Key Features

• Resolution: 4 MP (2688 × 1520) at 25 fps.
• Sensor: 1/1.8" CMOS.
• Focus: 8–32 mm, viewing angle approximately 39°–15° — optimal for tracking license plates at a distance.
• IR illumination: up to 30–60 m for night surveillance.
• Codecs: H.264H, H.264B, H.264M by default, with support for H.265 and MJPEG; provides flexibility while maintaining quality and saving space for archives.
• Supports Micro SD memory cards up to 256 GB for local storage of recordings.
• Power supply: 12 VDC or PoE — convenient connection for various installations.
• Protection: IP67 (dust and moisture resistance) and IK10 (vandalism protection).

Image Enhancements and Functions

The camera is equipped with a set of technologies to ensure clarity and correct detail transmission in challenging conditions: 3D DNR for noise reduction in low light, DDE for image non-uniformity correction, HLC and BLC for compensation of headlight glare and other bright light sources, as well as a wide dynamic range 140 dB WDR, which allows simultaneous transmission of details in the brightest and darkest areas of the scene. This set of functions makes the camera effective for capturing license plates in various directions of movement and with changing illumination.

Application and Advantages

Dahua DHI-ITC413-PW4D-IZ3 is ideal for automated access control, paid parking lots, checkpoints, highway surveillance cameras, and any solutions where license plate recognition is required. Thanks to the variable focus of 8–32 mm, the operator can set the optimal viewing angle (39°–15°) depending on the distance to vehicles. Support for modern codecs and local storage on Micro SD up to 256 GB allows building reliable archive storage systems without excessive network load.

The model combines a durable housing with IP67 and IK10 protection classes, which guarantees durability for outdoor installation and resistance to mechanical impact attempts. 12 VDC and PoE power options simplify integration into existing security systems. Infrared illumination up to 30–60 m ensures image readability at night, which is critically important for ANPR tasks.

This Dahua DHI-ITC413-PW4D-IZ3 (8-32mm) camera is a reliable solution for professional video surveillance with support for advanced image processing algorithms, a wide range of codecs, and autonomous recording storage capabilities. It features high resolution of 4 MP (2688 × 1520), a speed of 25 fps, and adaptability to various installation scenarios.

Other technical data: 1/1.8" CMOS sensor, H.264H/H.264B/H.264M by default, H.265 and MJPEG, Micro SD up to 256 GB, 12 VDC/PoE power, IP67 and IK10 protection, IR up to 30–60 m, 140 dB WDR, 3D DNR, DDE, HLC, BLC.
