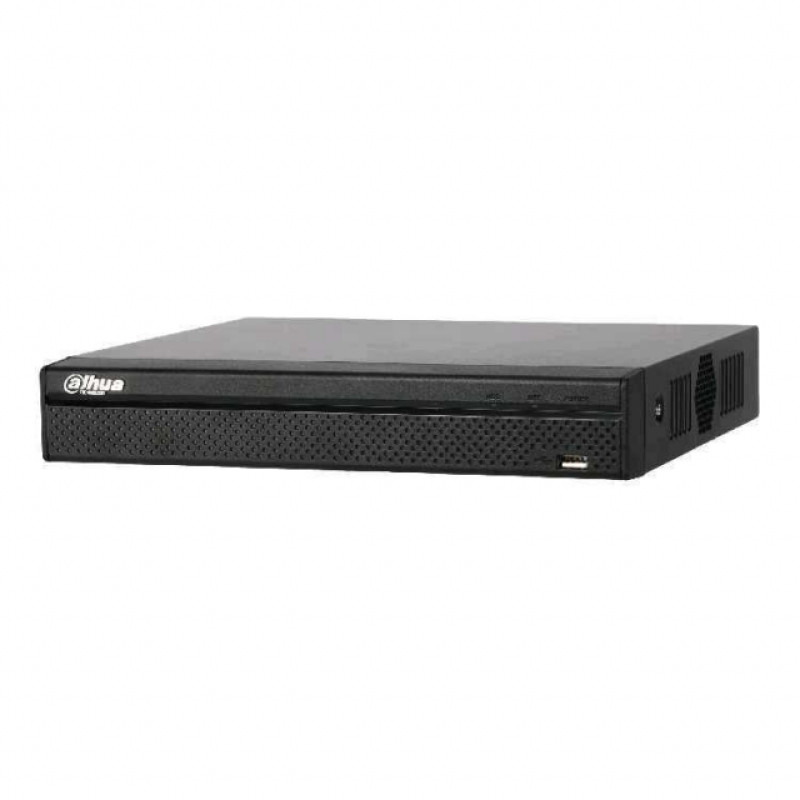

Dahua DH-XVR4116HS-X. 16-channel XVR video recorder

Dahua DH-XVR4116HS-X — 16-Channel XVR Video Recorder

Brand: Dahua. This compact 1U video recorder is a reliable solution for video surveillance systems in small and medium-sized businesses, as well as for private facilities requiring support for various video signal formats and flexible operation with analog and digital cameras.

Brief Description and Key Features

The device is a 16-channel Penta-brid 720p Compact 1U video recorder that supports 5 video signal formats and allows audio recording from CVI cameras. This means the recorder is compatible with a wide range of cameras and allows for gradual system upgrades without a complete infrastructure replacement.

Supported Video Signals

• Analog
• HDCVI
• TVI
• AHD
• IP (+ 2 cameras)

Recording Parameters

Recording is performed in the following modes: 1080N/720p (1~25fps); 1080N/720p (1~15fps) / 960H / D1 / CIF (1~25fps). The devices provide flexible frame rate settings for each channel, allowing optimization of video quality and stored data volume.

Video and Audio Outputs

• Video outputs: HDMI, VGA
• Audio: 1 input / 1 output (supports audio recording from CVI cameras)

Interfaces and Network

• Network: 100 Mbps
• Interfaces: 2 x USB, RS-485
• Hard drive: 1 x SATA HDD (supports drives up to 10 TB)

Power Supply and Dimensions

Power: DC 12V / 2A. Power consumption: 10W (without HDD). Case dimensions: 260x236x48 mm.

Additional Information

Model: Dahua DH-XVR4116HS-X. Product type: Electronics > Video Surveillance > Video Recorders. The device is designed for installation in 19" racks or on shelves due to its compact 1U form factor and allows integration of both analog and HD cameras along with IP cameras (IP + 2 cameras). The Penta-brid architecture provides flexibility when upgrading the video surveillance system, and support for various signal formats reduces equipment compatibility costs. Built-in interfaces simplify peripheral connections, and support for drives up to 10 TB allows for storing long video archives without frequent drive replacements.

This recorder will be an optimal choice for those looking for a balance between functionality, compatibility, and compactness in one device, with the ability to record audio from CVI cameras and a wide range of video formats.
