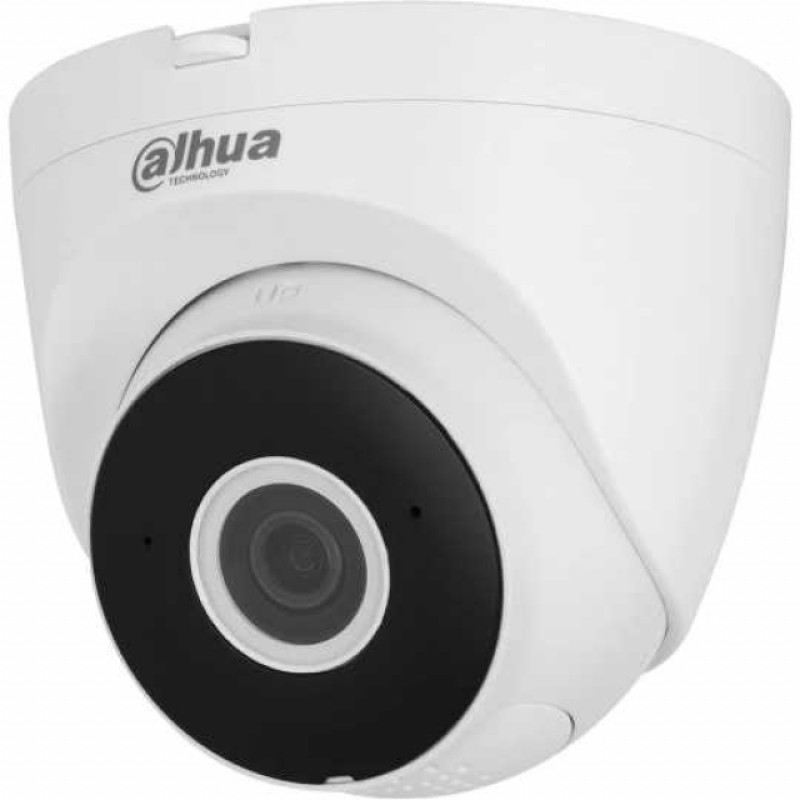

Dahua DH-IPC-HDW1230DT-SAW (2.8mm). 2 MP IR WiFi

Dahua DH-IPC-HDW1230DT-SAW (2.8mm) — 2 MP IR WiFi

Brand: Dahua. Category: Electronics > Video Surveillance > Video Cameras.

This compact Dahua DH-IPC-HDW1230DT-SAW WiFi video camera is designed for high-quality 24/7 surveillance both indoors and outdoors, thanks to its IP67 protection rating. The video device provides 2 MP resolution and a maximum video quality of 1920×1080, 25 fps, allowing for clear and detailed real-time images. The camera is equipped with a 1/2.8" CMOS sensor and a fixed focal length of 2.8 mm with an approximate viewing angle of 100°, ensuring a wide overview of the monitored area.

For effective operation in low light conditions, an integrated IR illumination up to 30 m is used, guaranteeing a clear image. The device supports 12 VDC power.

Key Features

• Resolution: 2 MP (1920×1080)
• Sensor: 1/2.8" CMOS
• Focal Length: 2.8 mm (viewing angle ≈100°)
• Frame Rate: 25 fps at maximum video size
• Codecs: H.265, H.264, H.264H, H.264B, Smart H.265+, Smart H.264+
• IR Illumination: up to 30 m
• Power: 12 VDC
• Protection Rating: IP67

Image Processing Functions

The camera features a set of tools to improve image quality: DWDR (Digital Wide Dynamic Range), 3D NR (3D Noise Reduction), BLC (Backlight Compensation), the ability to add a watermark, and an image rotation function.

Analytics and Alarm Notifications

Built-in algorithms and alert systems enhance the level of security and monitoring reliability. Supported functions include:

• motion detection;
• unauthorized video access detection;
• audio detection;
• SD card missing, SD card full, or SD card error alerts;
• network disconnection or IP address conflict alerts;
• unauthorized access alerts;
• SMD (object search and classification: human).

The camera is ideal for organizing video surveillance systems in homes, offices, retail spaces, and facilities where reliable protection against vandalism and weather conditions is required. The presence of modern codecs Smart H.265+ and Smart H.264+ significantly reduces the volume of stored data without loss of video quality, saving storage space and network bandwidth.

The Dahua DH-IPC-HDW1230DT-SAW (2.8 mm) model combines ease of installation, extensive analytics capabilities, and resistance to external factors thanks to the IP67 standard, making it a reliable choice for various video surveillance tasks.
