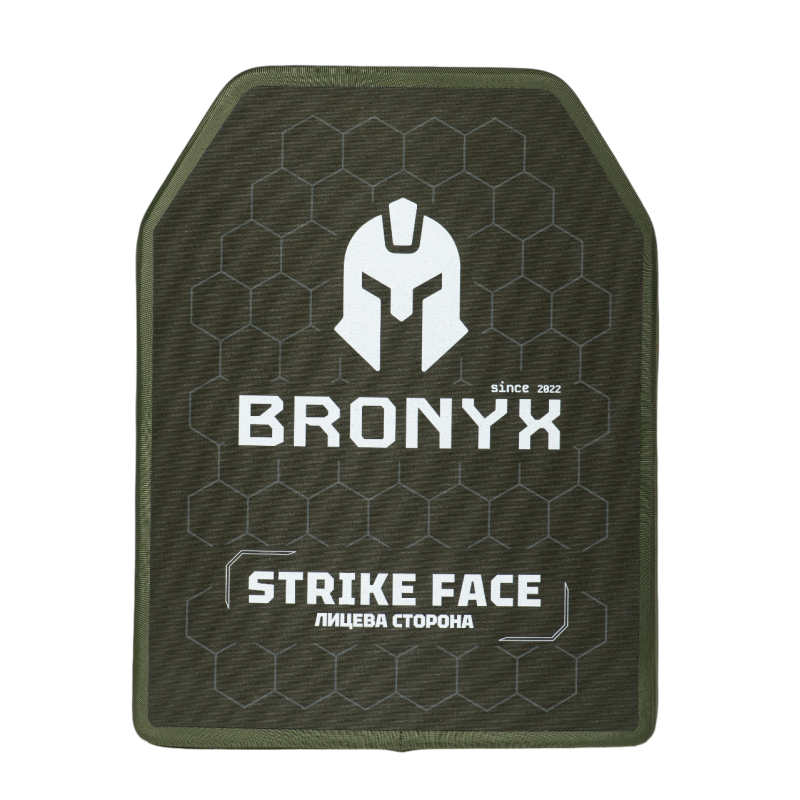

Armor Plate CAP6-M (2.9 kg) (Class 6) 250*300 (single plate) 1pc — Bronyx

The Bronyx CAP6-M armor plate is designed for the maximum level of body protection. This M-sized (250×300 mm) model, weighing 2.9 kg, is presented as a single plate (1 pc) and fits most standard plate carriers with a chest circumference up to 110 cm. Manufacturer: Bronyx. Product category: Military Equipment > Armor Plates > Class 6 Protection.

The plate is certified according to DSTU 8782:2018 requirements and provides Class 6 protection: it withstands multiple hits from 7.62×54 mm armor-piercing bullets, including B-32 and 7B3-323 armor-piercing incendiary rounds. In addition, the plate effectively protects against fragments, ricochets, and shrapnel, as well as all lower classes of weapons according to the standard.

Construction and Materials

The armor plate consists of a combination of two main layers: a silicon carbide (SiC) ceramic layer and an ultra-high molecular weight polyethylene (UHMWPE) backing. Each layer performs its critically important protective function:

• Ceramic (SiC): breaks up and neutralizes the penetrating elements of the bullet, such as the armor-piercing core, reducing the projectile's penetrating power.
• UHMWPE backing: absorbs residual impact energy, retains fragments, prevents the penetration of bullet remnants, and evenly distributes the load across the plate's surface.

Dimensions, Shape, and Anatomy

Available sizes and approximate characteristics:

• M (250×300 mm) — weight 2.9 kg, suitable for chest circumference up to 110 cm, standard compatibility with plate carriers.
• L (260×330 mm) — weight 3.25 kg, for chest circumference 111–118 cm, designed for L/XL size plate carriers.

The Shooter’s Cut shape with beveled corners ensures freer arm movement and increased mobility during tasks. The R400 anatomical curve (400 mm radius) improves the plate's fit to the body, enhancing comfort during prolonged wear and reducing plate movement inside the plate carrier.

Usage Recommendations

To prevent traumatic effects from impact force transfer to the chest, it is recommended to use a trauma pad between the plate and the body if the body armor or plate carrier does not have a built-in trauma pad. Following the manufacturer's recommendations will help maintain the plate's protective properties for a long time.

This armor plate is suitable for service and civilian use where a high level of protection is required with relatively compact dimensions and moderate weight.

Other technical details: model — CAP6‑M, single plate, weight — 2.9 kg, size — 250×300 mm, shape — Shooter’s Cut, anatomical curve — R400. Manufacturer — Bronyx. Certification and compliance — DSTU 8782:2018, Class 6 protection.
