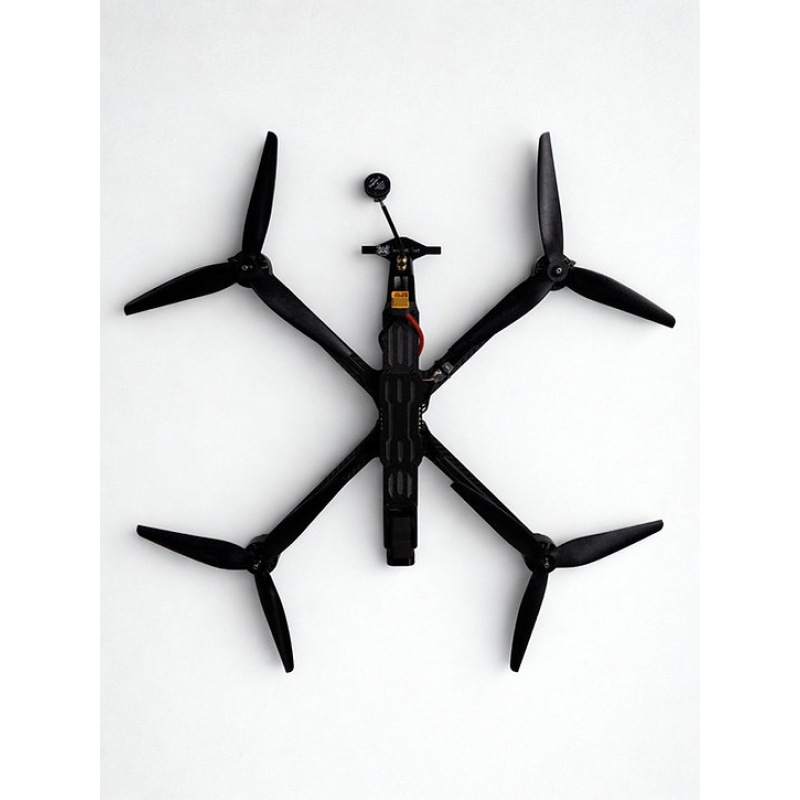

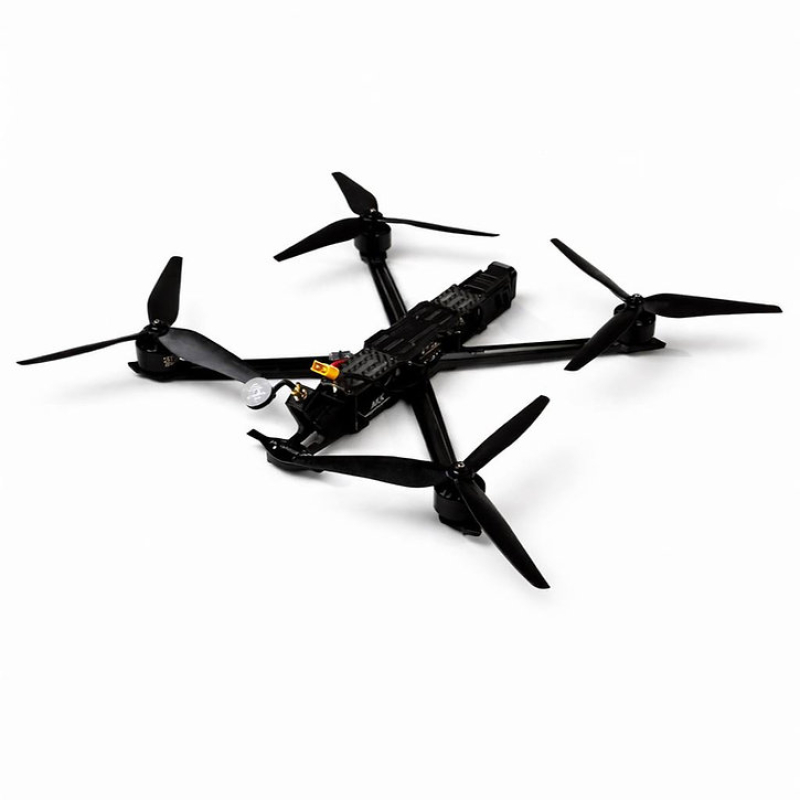

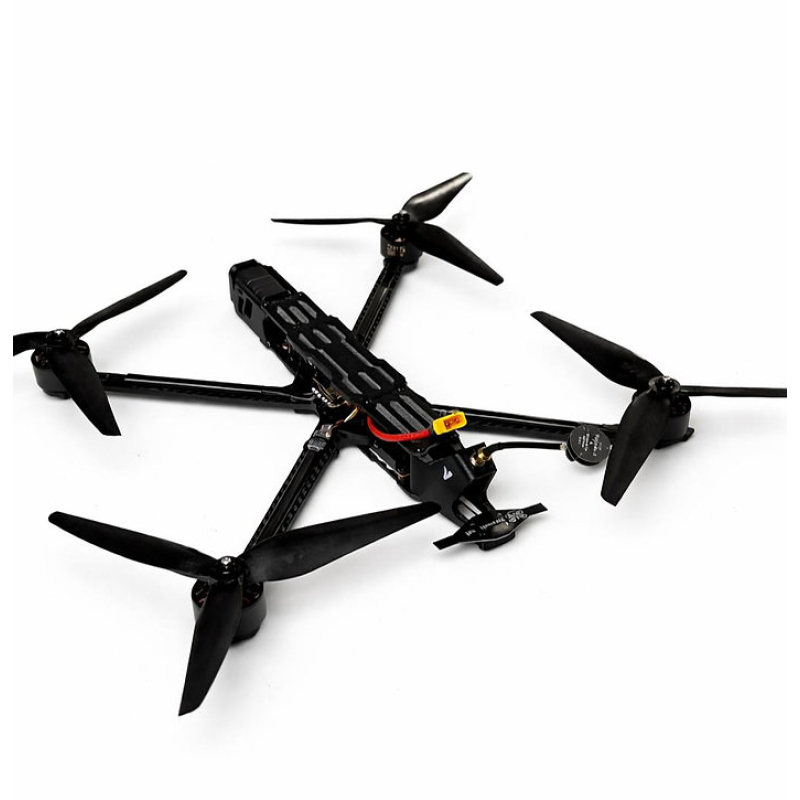

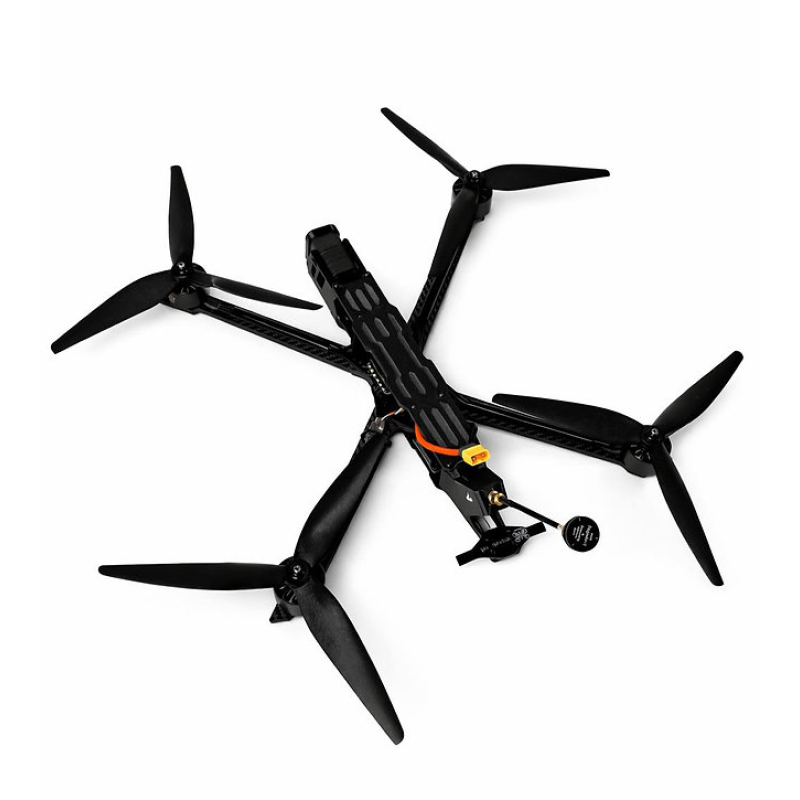

FPV UAV "Zhnets 10T" (10”) with Battery and Thermal Camera

The FPV UAV "Zhnets 10T" is a specialized unmanned platform with an integrated thermal imaging system, designed for missions in challenging low-visibility conditions, particularly at night or in adverse weather.

The drone combines compactness, sufficient payload capacity, and enhanced observation capabilities, making it an effective tool for precise operations at medium and long distances.

Specifications
 • Platform type: FPV quadcopter
 • Diagonal: 10 inches

Construction:
 • Frame: Chimera GF10

Propulsion System:
 • Motors: 3115 900KV (Optional)
 • Propellers: HQProp 1050 (Optional)

Video and Observation System
 • Thermal camera: Caddx 640CA (Optional)
Enables target detection in complete darkness or challenging weather conditions
 • Video transmitter: Skyzone TX 2501 (4.9–6.2 GHz band) (Optional)
 • Antennas:
 • Skyzone Mushroom 4.9 GHz
 • Skyzone Mushroom 5.8 GHz
(2 antennas included)(Optional)

Control System
 • Receiver: ELRS (BetaFPV) (Optional)
 • Band: 1.9–2.7 GHz (Optional)
 • Feature: stable connection over significant distances

Power Supply
 • Battery: 6S3P 15000 mAh (Optional)

Tactical and Technical Performance
 • Flight range: up to 30 km
 • Maximum payload: up to 2 kg
