UAV GEDZ 8 Walksnail

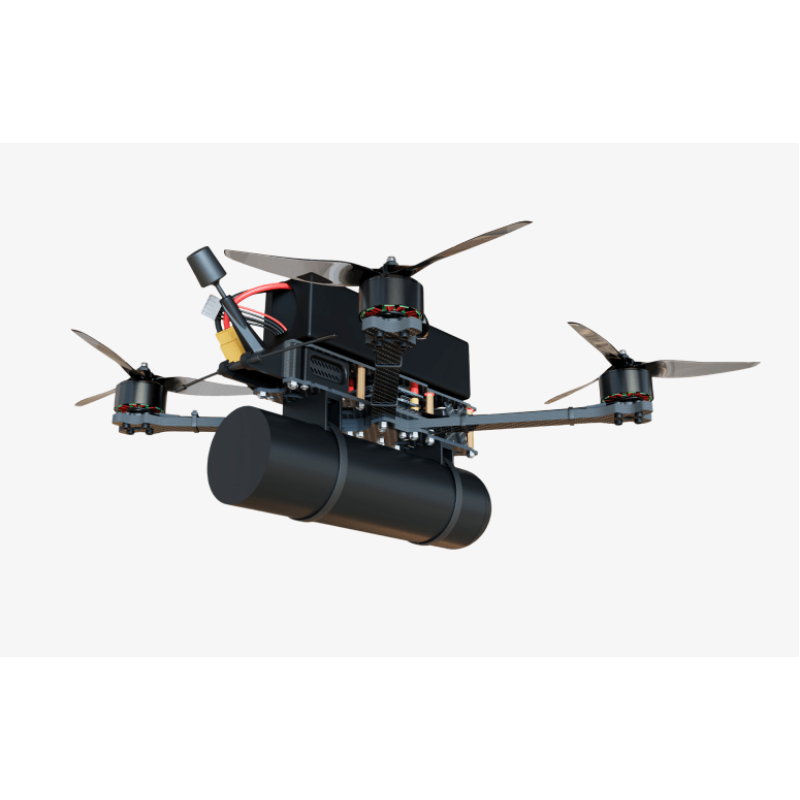

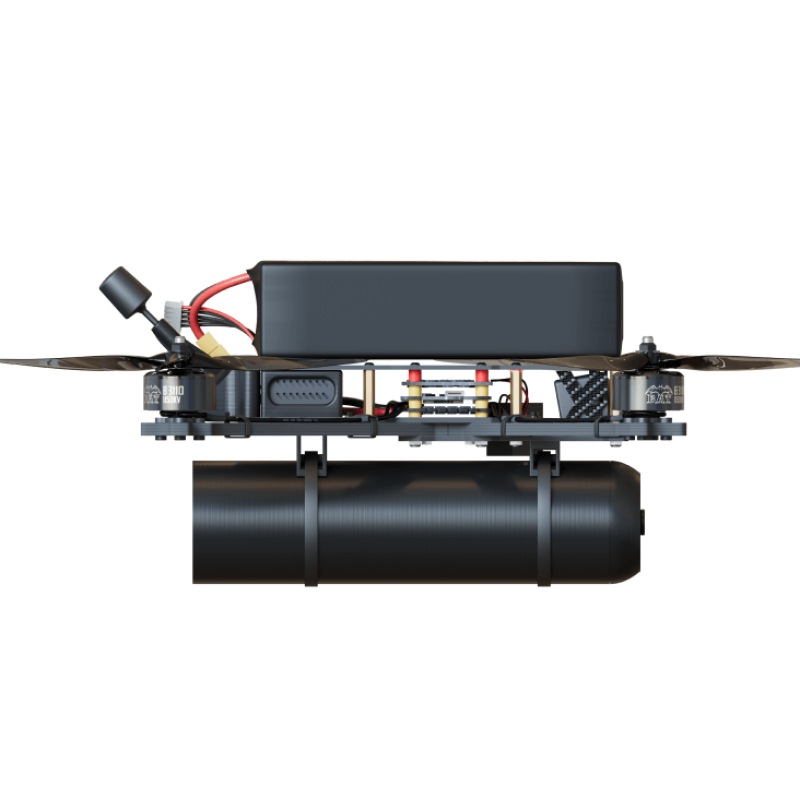

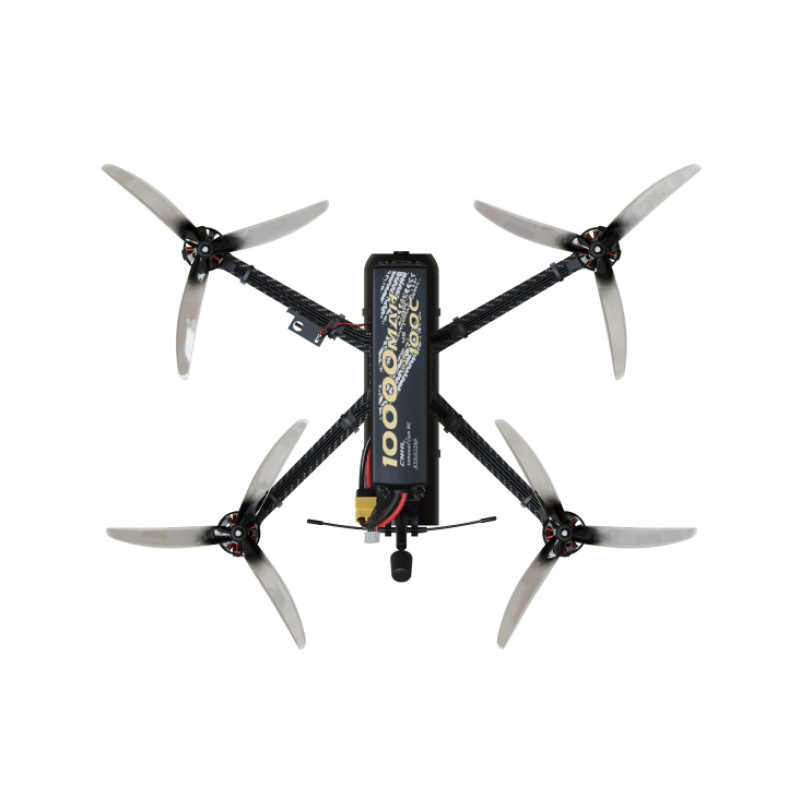

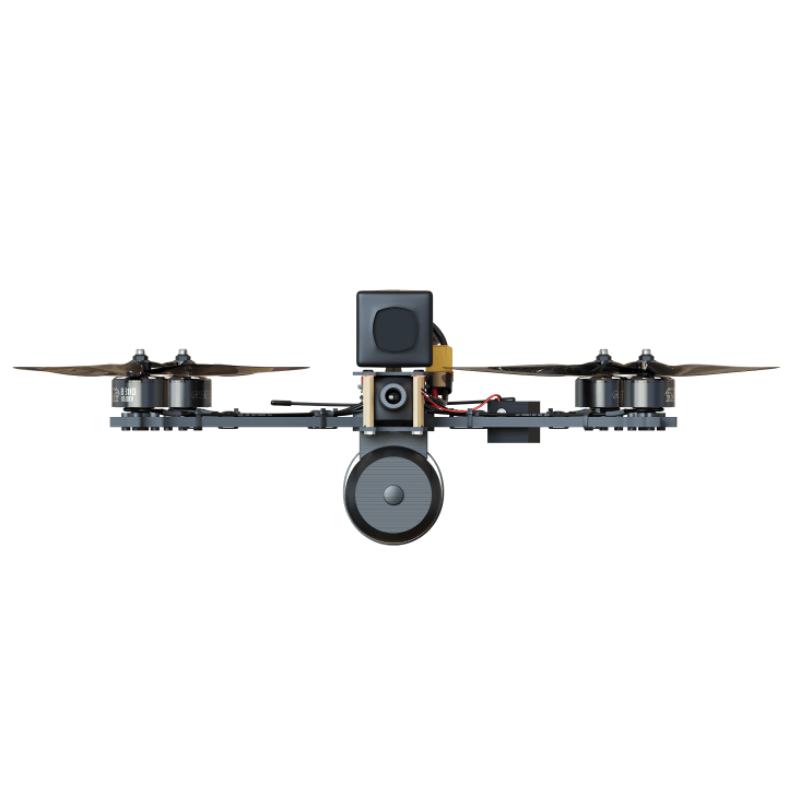

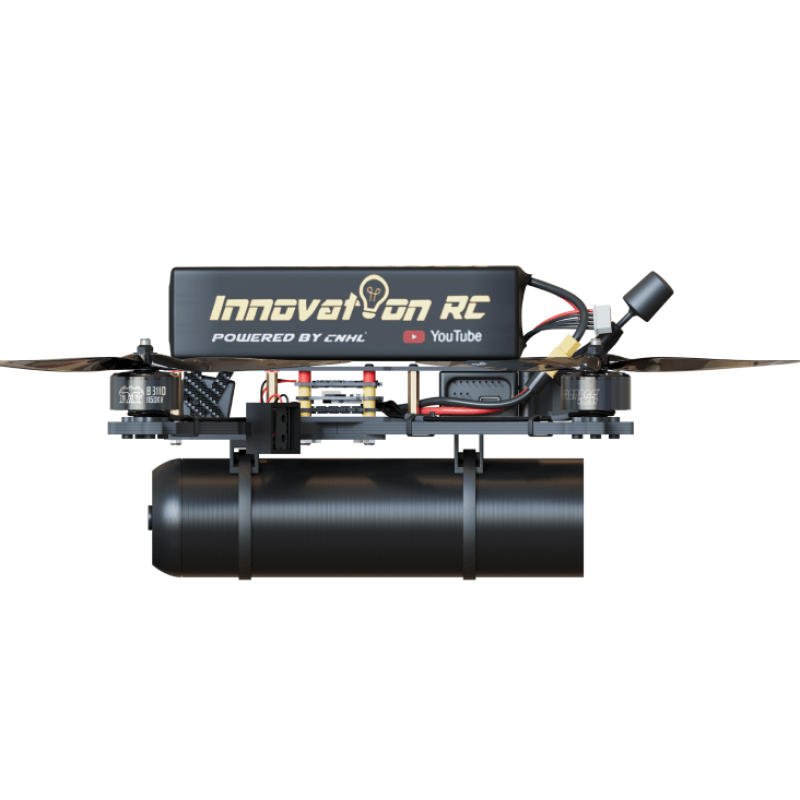

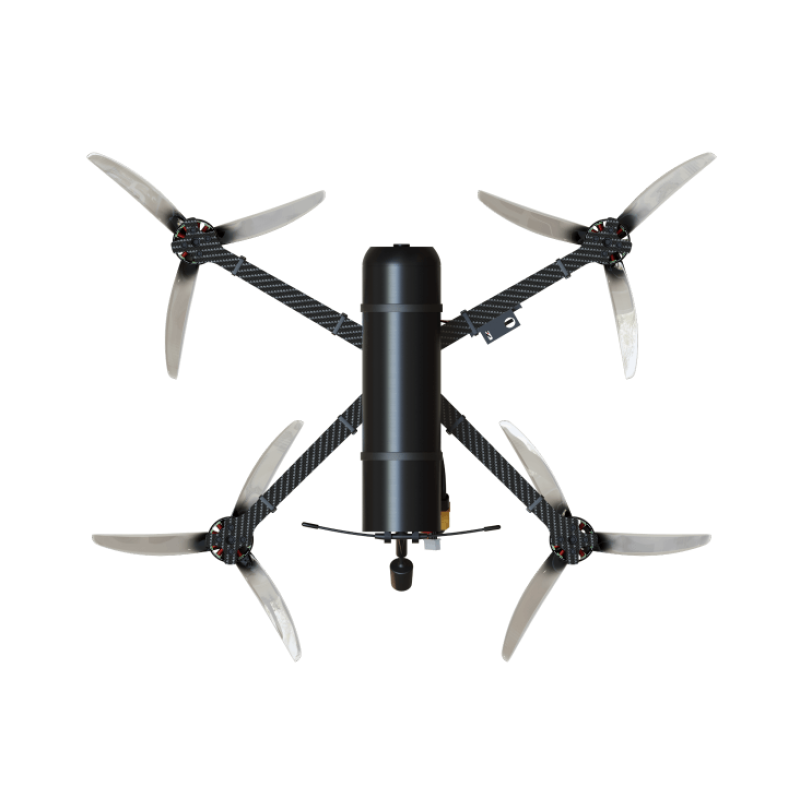

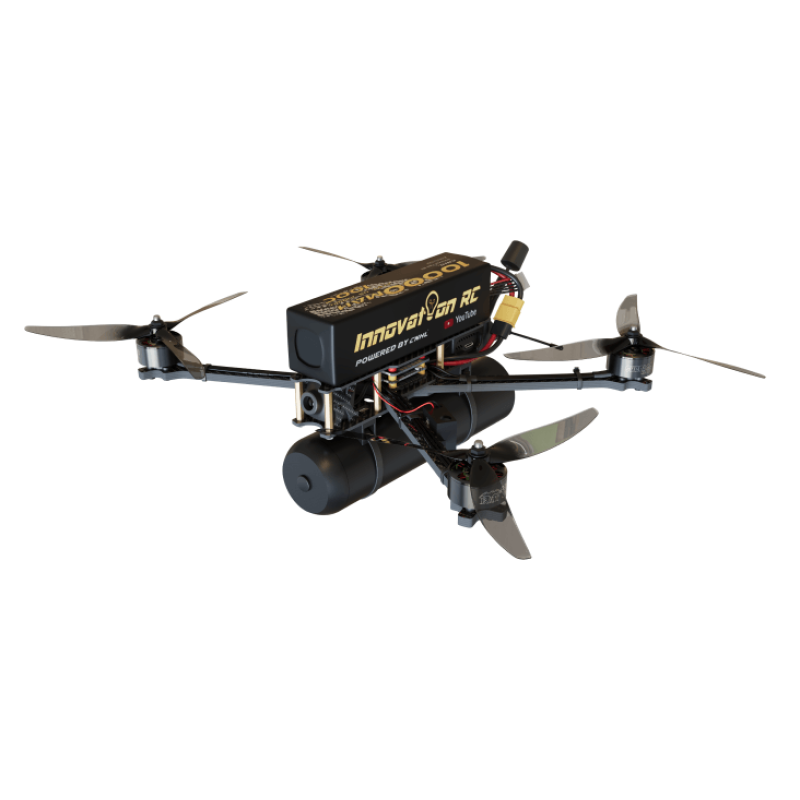

GEDZ 8 Walksnail UAV System — a lightweight 8-inch attack UAV on a Gedz carbon frame with a Walksnail Avatar GT 2W digital video channel and RadioMaster XR4 Gemini (900 / 2400 MHz) control. Total structural weight — 0.63 kg, maximum takeoff weight — 2.44 kg.
Flight performance: practical range up to 15 km, maximum speed 180 km/h, cruising speed 79 km/h, flight time with a 1.3 kg payload — ~20 min. Optional — Action Board V2.0 initiation board with a fuse for attack missions.
The system is designed for fast FPV strikes with high-quality operator video in Walksnail goggles. According to the manufacturer GEDZ (gedz.tech): passive and active operator protection, built-in initiation system with OSD prompts. Price depends on configuration — check with the supplier (manufacturer: Nebolab LLC).
Key Features
- Type: light attack UAV / FPV 8".
- Frame: Gedz carbon, 8 inches.
- Video: Walksnail Avatar GT 2W (digital channel).
- Control: RadioMaster XR4 Gemini Xrossband, 900 / 2400 MHz.
- Brushless motors Motor-G 3110 1100 kV (4 pcs), ESC XRush4 65A AM32.
- Maximum speed 180 km/h; range up to 15 km.
Key Advantages
- Lightweight design: 0.63 kg without battery — high maneuverability and payload capacity.
- Digital FPV: Walksnail Avatar GT 2W for clear in-flight video.
- Long range: practical range up to 15 km.
- High speed: up to 180 km/h for rapid target engagement.
- Flexible control: Gemini Xrossband 900 / 2400 MHz.
- Attack configuration: optional Action Board V2.0 initiation board.
- Gedz carbon frame: strength with low weight.
- Safety: mechanical fuse (passive) and software modifications (active protection against accidental initiation).
- Initiation system: 3 modes (remote command, impact detection, timer) at the software level with OSD prompts.
- Balance: designed for heavy flight and long-distance flights with payload.
Areas of Application
- Attack FPV missions with digital video channel.
- High-speed interception and engagement of targets at medium range.
- Operator training on the 8" platform with Walksnail.
- Modifications for specific payloads (up to ~1.8 kg payload based on MTOW calculation).
- Other versions of the GEDZ 8 line: 4.9–6 GHz, 6.1–7.2 GHz, DJI O4 — separate catalog items.
Delivery Package
- GEDZ quadcopter.
- Propellers.
- Battery.
- Video communication antenna.
- Mechanical fuse pin (optional).
- 1.3 kg payload dummy (optional).
- Battery mounting strap.
- Nylon ties.
Components (Assemblies)
| Assembly | Specification |
| Frame | Gedz Carbon, 8 inches |
| Propellers | 8×4×3 |
| Motors | Motor-G 3110 1100 kV (4 pcs) |
| Flight Stack | XRush4 ESC 65A AM32 |
| Video Transmitter | Walksnail Avatar GT 2W |
| Antenna | Foxeer Pagoda Pro RHCP or analog (2 pcs) |
| Control | RadioMaster XR4 Gemini Xrossband, 900 / 2400 MHz |
| Pigtail | u.FL-SMA (2 pcs) |
| Battery | Li-Po 10000 mAh |
| Initiation Board (optional) | Action Board V2.0 with fuse |
Technical Specifications
| Parameter | Value |
| Product Type | Light Attack UAV (FPV 8") |
| Model | GEDZ 8 Walksnail UAV System |
| Brand / Frame | GEDZ (Gedz) |
| Total Structural Weight | 0.63 kg |
| Maximum Takeoff Weight | 2.44 kg |
| Payload (Calculated) | Up to ~1.81 kg (MTOW − structural weight) |
| Payload for Flight Time Specs | 1.3 kg |
| Maximum Speed | 180 km/h |
| Cruising Speed | 79 km/h |
| Practical Range | Up to 15 km |
| Flight Time (1.3 kg payload) | ~20 min |
| Dimensions | 335 × 251 × 60 mm |
| Dimensions with Propellers | 500 × 419 × 60 mm |
| Motors | Brushless (4 × Motor-G 3110) |
| Navigation System | No GPS (FPV control) |
| Video Channel | Walksnail Avatar GT 2W (digital) |
| Control | RadioMaster XR4 Gemini, 900 / 2400 MHz |
| Manufacturer | Nebolab LLC (GEDZ) |
| Protection / Safety | Mechanical fuse + active (software) |
| Initiation Modes | Remote; impact detection; timer (software, OSD) |
Operational Warnings
- Use in accordance with the manufacturer's instructions and current Ukrainian legislation.
- Do not exceed the maximum takeoff weight of 2.44 kg.
- Initiation board — only with proper training and permits for attack munitions.
- Before flight, check the battery, propellers, antennas, and 900 / 2400 MHz and Walksnail channels.
GEDZ 8 Walksnail UAV System — high-speed light attack 8" FPV: 180 km/h, 15 km, Walksnail digital video, payload up to ~1.8 kg.
