U-tex 1210A/17-FZ Power 12V 10A Uninterruptible Power Supply in Plastic Box (9 Channels)

Brand: U-tex. Type: Energy Independence > Uninterruptible Power Supplies. This 12V 10A pulsed stabilized uninterruptible power supply in a plastic enclosure is designed for reliable power and protection of equipment with a 12V input voltage — CCTV cameras, DVR/NVR video recorders, network equipment, security alarms, electronic locks, and other devices.

Description and Purpose

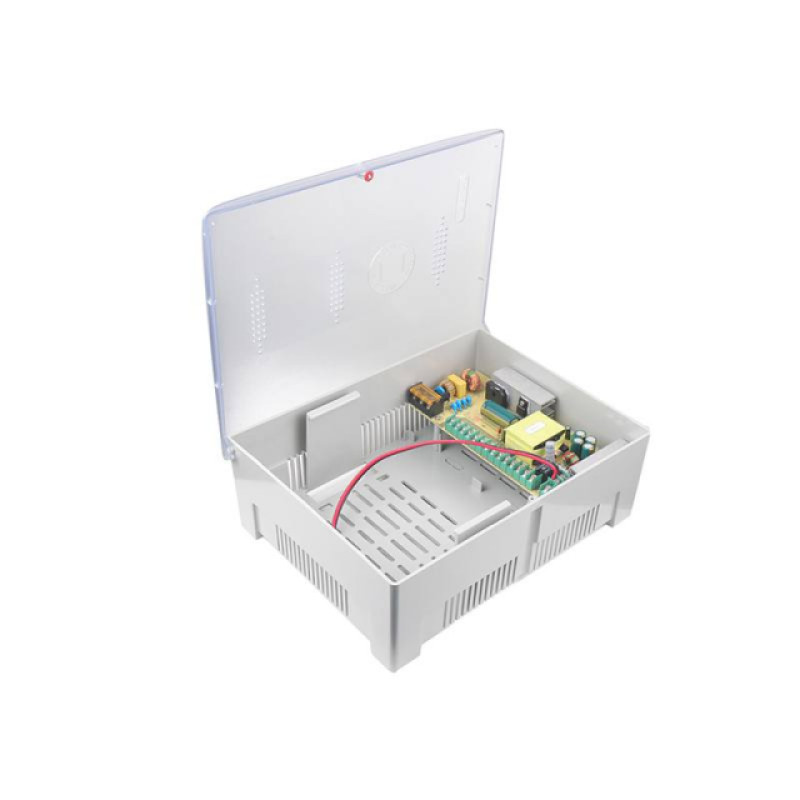

The U-tex 1210A/17-FZ Power UPS enclosure measures 282 x 221 x 110 mm and is designed for installing a sealed maintenance-free 12V battery. According to technical documentation, the enclosure allows for installing a battery with a capacity of up to 17 - 20 Ah; the model name also indicates support for 17-18 Ah batteries. The battery must be purchased separately. When the mains power is disconnected, the device automatically switches to backup power from the connected battery, ensuring continuous operation of the connected channels.

Key Features

• Input voltage: 100 - 240V AC (AC 100 - 240V);
• Number of outputs: 9 channels;
• Output voltage adjustment (built-in potentiometer): 12.5V ~ 13.8V (DC 12.5V - 13.8V);
• Output current: 10 A;
• Power: 120 W;
• Terminal connection for load;
• Maximum battery charging current: 1.8 A;
• Space for 12V 17 - 20 Ah battery;
• Enclosure material: plastic, dimensions 282 x 221 x 110 mm;
• Wall-mount capability;
• Warranty: 12 months.

Protection and Indication

The U-tex ZTU 1210A/17-FZ is equipped with a set of protections: short-circuit and overcurrent protection with automatic recovery after fault elimination, output protection against impulse overvoltages, protection against deep battery discharge, and optimal battery charging when mains voltage is present. The devices have LED indicators for operating modes, signaling the presence of mains voltage and output voltage. When the mains power is disconnected, an automatic switch to backup power from the battery occurs.

Package Contents

• U-Tex ZTU 1205A/17-FZ Power UPS — 1 pc.;
• Cable set for battery connection — 1 pc.;

This uninterruptible power supply unit is ideal for powering a small complex of equipment where power distribution across multiple outputs (9 channels) and protection against mains fluctuations are required. Thanks to the adjustable output voltage (12.5–13.8V), fine-tuning for specific types of loads and batteries is possible. Please note that the 12V battery is purchased separately and must be sealed and maintenance-free for correct and safe operation of the device.
