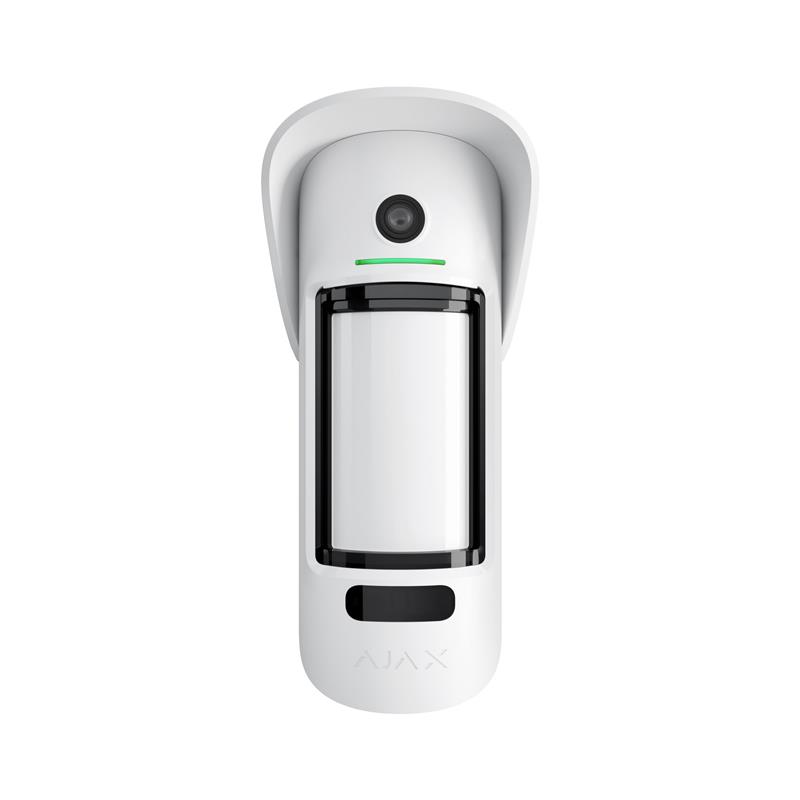

The Ajax MotionCam Outdoor (PhOD) wireless outdoor motion sensor with camera will help protect your territory from intrusion. The sensor is resistant to false alarms, operates in difficult weather conditions, and is easy to install.

The sensor's operating principle is based on detecting infrared radiation from living beings. Two independent IR sensors analyze the received data using the LISA two-factor algorithm, which helps avoid false alarms and adjust the sensor's operating range.

Upon motion detection, the sensor takes 1 to 5 photos and transmits them to the security console and system users.

The sensor is easily installed using SmartBracket mounts. To connect to the central unit, simply launch the mobile application.

The sensor is compatible only with Hub 2, Hub 2 Plus, and Hub Hybrid central units.

Brand Ajax

Line Baseline

Connection type Wireless

Model MotionCam Outdoor (PhOD)

Compatibility Hub 2, Hub 2 Plus, Hub Hybrid

Number of motion sensors 1

Temperature sensor Yes

Sensor type PIR sensor

Transmission frequency 868.0 – 868.6 MHz or 868.7 – 869.2 MHz

Sensor radio signal modulation GFSK

Jeweller radio protocol Block encryption based on AES algorithm, Two-way communication between devices, Sensor polling period — 12−300 seconds

Wings radio protocol Yes, transmission of photo series

Remote configuration Yes

Image resolution Up to 640 × 480 pixels

Photo verification Yes

Detection type Microwave

Installation type Wall mount

Installation type Outdoor

Installation height 0.8 - 1.3 m

Monitoring area No

Anti-sabotage Anti-masking protection, Jamming notification, Tamper protection Yes

Motion detection speed From 0.3 to 2 m/s

Sensitivity adjustment Adjustable, 3 levels

Protection class IP50

Motion detection range 15 m

Horizontal motion detection angle 105°

Vertical motion detection angle 50°

Pet immunity Up to 80 cm

Wireless signal transmission range 1700 m

Power supply type 4 CR123 batteries

Ability to connect external power No

Sensor battery life Up to 3 years

Service life 10 years

Color indication Yes

Sensor radio transmitter power Up to 20 mW

Operating voltage 3 V

Operating humidity Up to 95%

Operating temperature range -25°С ~ +60°С

Ability to install visor No

Housing material Plastic

Dimensions 206 × 108 × 93 mm

Weight 470 g

Color White

Package contents MotionCam Outdoor (PhOD), SmartBracket mounting panel, Four CR123 batteries (pre-installed), Quick start guide, Mounting kit, Hood visor

Certification No

Warranty 24 months
