Product Code: FA94-29487-94
22 500 грн.
Buy this product in 1 click:
Main specifications
Ambient humidity, %(RH): 10~80%
Balancer Type: Active up to 5A
Battery storage temperature, °C: -20 ~ +40
Capacity, Wh: 1280
Cell connection diagram: 8S1P
All specifications
We will deliver this product:
Payment
Description

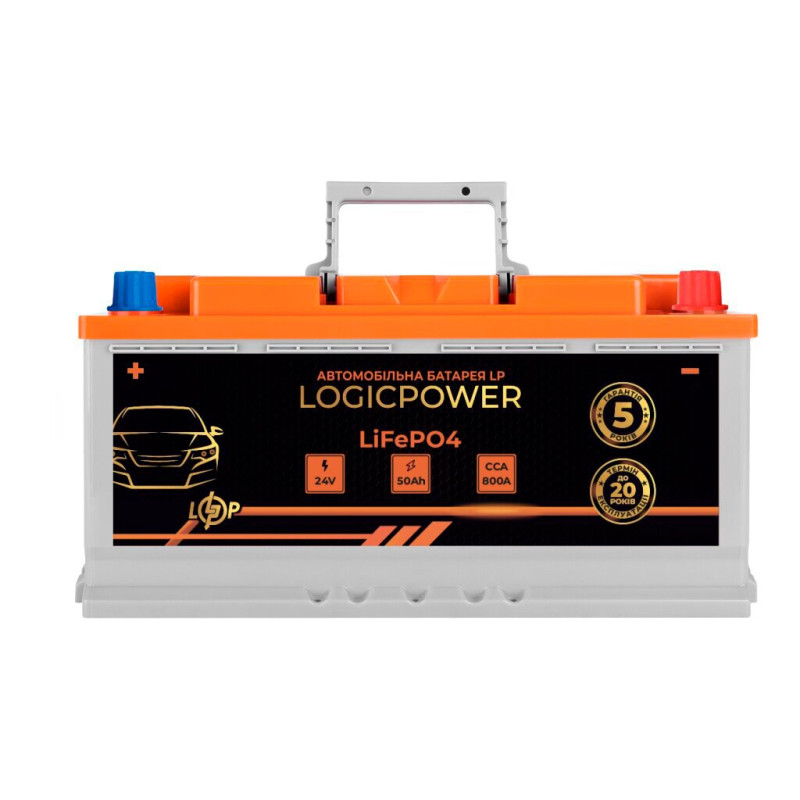

LP LiFePO4 Car Battery 24V - 50 Ah (+ left) BMS 800A with BMS​

The LiFePO4 battery with BMS is equipped with a protection board that ensures efficient and long-lasting operation of the car battery.

The lithium iron phosphate car battery with BMS provides cold start and has a high discharge current.

This is the most powerful type of car battery that can be used for:

  • starting internal combustion engines, both diesel and gasoline;

  • powering car audio systems, alarms, etc.;

  • floor cleaning machines, electric cars, and other special equipment requiring high battery consumption currents;

  • boat motors, both electric and internal combustion;

  • as well as a battery for uninterruptible power supplies (UPS).

Advantages of LiFePO4 car batteries with BMS:

  • small size and weight;

  • long service life;

  • high cranking current;

  • over-discharge protection;

  • overcharge protection;

  • short circuit protection;

  • versatility;

  • low self-discharge.

Why do we recommend buying a LiFePO4 car battery with BMS?

Lithium iron phosphate LiFePO4 batteries with BMS are the best car batteries because they solve a number of problems faced by owners of lead-acid batteries.

One of the main problems with traditional batteries is their limited lifespan. A LiFePO4 car battery with BMS is several times more durable than its lead-acid counterparts because it has a significant resource. LogicPower lithium iron phosphate batteries are designed for 7000 charge/discharge cycles (up to 20 years of operation). Manufacturer's warranty - 60 months.

The LiFePO4 car battery with BMS 24V - 50 Ah (+ left) BMS 800A is not afraid of deep discharge; if you forgot to turn off the headlights or music in your car and found a discharged battery in the morning, it's not a problem, the battery will not fail, it will just need to be recharged.

The LiFePO4 car battery with BMS 24V - 50 Ah (+ left) BMS 800A will automatically disconnect power in case of a short circuit in the car's electrical system, for example, during an accident or repair work, which can prevent the car from catching fire. To re-enable the battery, disconnect the wires from it and press the reset button, after which the battery will resume operation.

LiFePO4 car batteries with BMS 24V - 50 Ah (+ left) BMS 800A have good energy density, which allows them to provide a high level of energy per unit of mass. Therefore, the weight of these batteries is less than that of lead-acid counterparts. This is important for sports and small cars, where every kilogram can affect speed or travel range.

The LiFePO4 car battery with BMS 24V - 50 Ah (+ left) BMS 800A can be charged with high currents; if for some reason your battery is discharged, it can be charged significantly faster than a lead-acid one.

The LiFePO4 car battery with BMS 24V - 50 Ah (+ left) BMS 800A works equally well at both low and high temperatures, making it suitable for a wide range of climatic conditions.

The LiFePO4 car battery with BMS 24V - 50 Ah (+ left) BMS 800A has a balancing circuit that monitors the uniform charge of the battery cells.

Specifications
Ambient humidity, %(RH) 10~80%
Balancer Type Active up to 5A
Battery storage temperature, °C -20 ~ +40
Capacity, Wh 1280
Cell connection diagram 8S1P
Cell type Prismatic
Charge operating temperature, °C 0 ~ +40
Charging voltage (buffer mode), V 27.2
Charging voltage (cyclic mode), V 29.2
Communication interface out of stock
Discharge operating temperature, °C -4 ~ +140
Height, mm ** 190
Housing material Plastic
Length, mm ** 355
Maximum charge current, A 50
Maximum discharge current, A 50
Minimum voltage, V 21
Nominal capacity, Ah 50
Nominal charging current, A 25
Nominal values of elements 50
Nominal voltage, V 24
Number of cycles 7000
Peak Discharge Current, A 800 (100ms)
Polarity + left
Protection level IP54
Recommended low voltage cutoff, V 22.4
Reconnecting charge voltage, V 28.4
Reconnection discharge voltage, V 21.2
Short-circuit current, A 800
Starting current, A 800
Terminal type Conical Terminals 19.5mm / 17.9mm
Type LiFePO4
Warranty, months 60
Weight, kg 10.2
Width, mm ** 175
