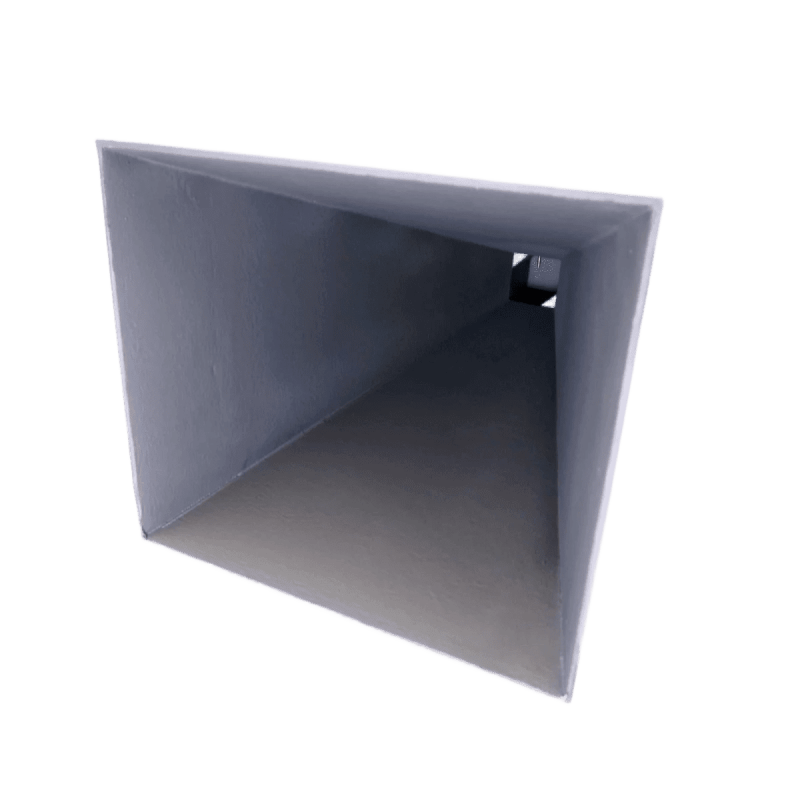

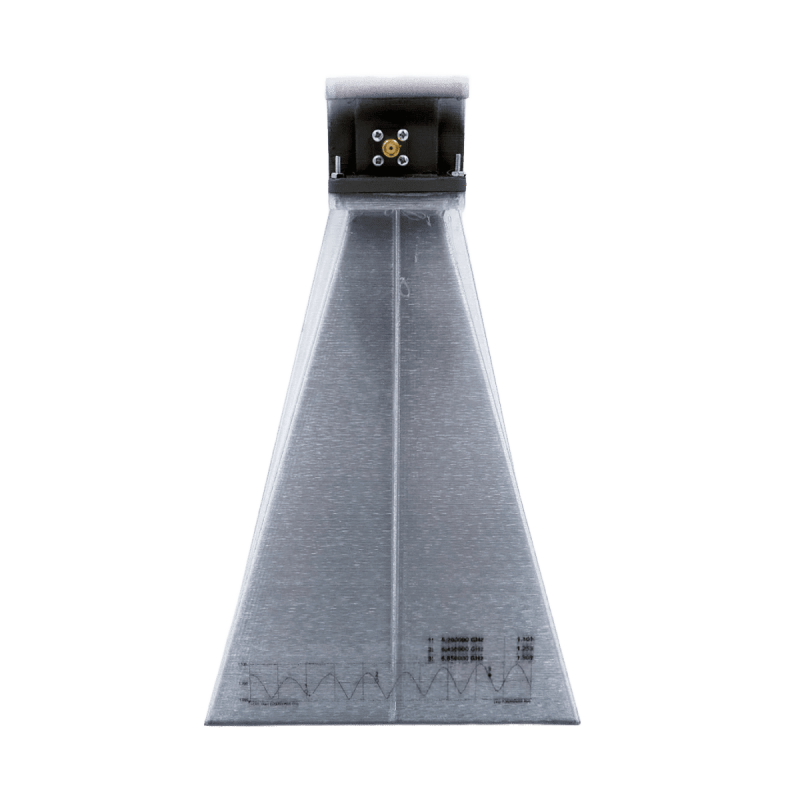

The HORN 5.0-6.2 GHz RHCP Plastic Horn Antenna is a specialized solution for those seeking to maximize signal transmission range and stability. This device addresses a key problem faced by FPV drone and repeater operators: ensuring reliable communication in conditions of intense radio interference and over long distances. Thanks to its high gain and narrow beamwidth, this antenna focuses the signal, minimizing the impact of external sources and ensuring stable operation of your system.

Purpose of the Horn Antenna

•

  For FPV Systems: Provides stable and high-quality video communication with FPV drones over long distances, which is critically important for military applications.



•

  For Repeaters: Used to build relay points that amplify and transmit the signal further, extending coverage area.



•

  For Military Drones: Thanks to its high reliability and interference immunity, the HORN 5.0-6.2 GHz horn antenna is an ideal component for military UAV control systems.



•

  Ground Control Stations: Serves as the basis for ground stations, providing a high-speed and secure communication channel with the aircraft.

Key Features

Design Features

•

  Right-Hand Circular Polarization (RHCP): Reduces the effect of multipath signal propagation, which helps avoid signal fading and ensures more stable communication.



•

  Lightweight and Durable Plastic Housing: Provides ease of transport and resistance to weather conditions without significant weight increase.



•

  Compact Size: Despite its high gain, this antenna has relatively small dimensions, simplifying its installation and integration into systems.



•

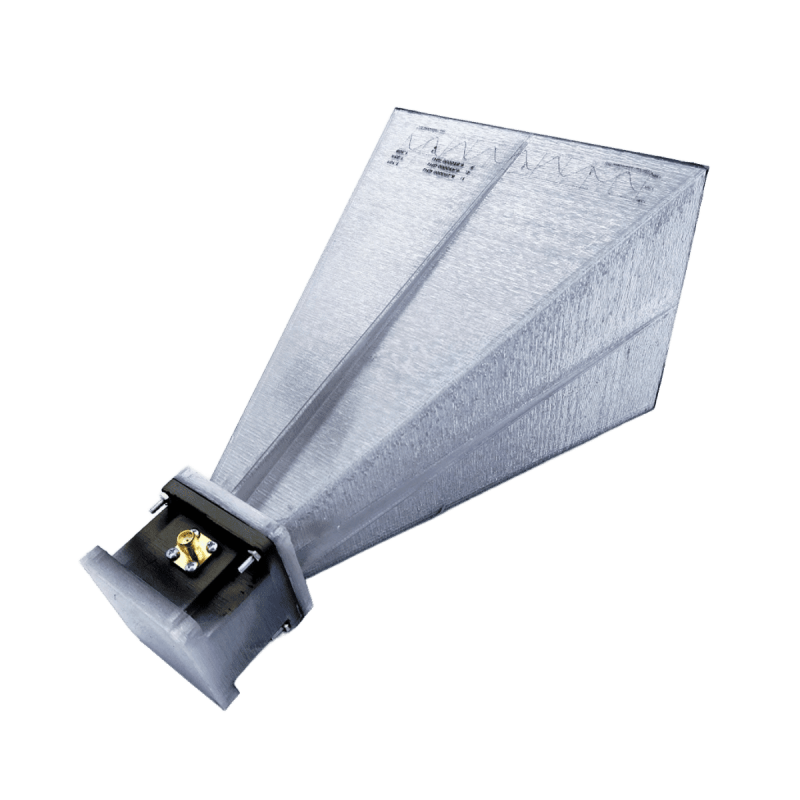

  Standard SMA Connector: Ensures easy and reliable connection to most modern FPV receivers and repeaters.

User Benefits

•

  Maximum Communication Range: Thanks to its powerful 20 dBi gain, the HORN 5.0-6.2 GHz horn antenna significantly increases signal transmission range, allowing operation at distances inaccessible to standard antennas.



•

  Interference Immunity: The narrow beamwidth focuses the signal on the receiver, minimizing the impact of other radio emission sources. This guarantees stable communication even in complex urban or field conditions.



•

  Reliable Operation in Harsh Conditions: Made of high-quality plastic, the antenna is resistant to moisture, dust, and temperature fluctuations, making it ideal for field use.



•

  Easy Integration: Thanks to the standard SMA connector, the HORN 5.0-6.2 GHz RHCP Plastic Horn Antenna easily connects to existing equipment without the need for additional adapters.



•

  Efficiency and Safety: Using this antenna allows for stable communication, which is critically important for the safety of drone control, especially in combat zones.

Equipment Compatibility

•

  FPV receivers with SMA connector



•

  FPV signal repeaters



•

  Drone ground control stations



•

  Video transmitters and receivers operating in the 6.0-7.0 GHz range



•

  Military communication systems

Tips for Choosing a Horn Antenna

•

  Determine the frequency range: Ensure that the antenna's frequency range (5.0-6.2 GHz) matches your equipment's operating range. Incorrect selection will lead to loss of efficiency.



•

  Pay attention to polarization: If your FPV system uses right-hand circular polarization (RHCP), this antenna is ideal. Using an antenna with different polarization (e.g., LHCP) will significantly degrade the signal.



•

  Check the connector: It is important that the antenna's connector (SMA) matches the connector on your receiver. This will allow you to connect it without additional adapters, minimizing signal loss.



•

  Evaluate the gain: The higher the gain (dBi), the further and more stable the connection you can achieve. 20 dBi is a very high indicator for this type of antenna.

Installation and Setup

Installation of the HORN 5.0-6.2 GHz RHCP horn antenna is quite simple. First, mount the antenna on a tripod or mast using standard mounts (not included). Next, connect the coaxial cable from the antenna to the appropriate connector on your receiver or repeater. An important part of the setup is precise aiming of the antenna at the object with which communication needs to be established (drone, other antenna). Due to the narrow beamwidth, even small deviations can significantly affect signal quality.

Package Contents and Packaging

The delivery set includes only the HORN 5.0-6.2 GHz RHCP Plastic Horn Antenna. It is supplied without a case. The antenna is carefully packed in a box, which ensures its safety during transportation and storage.

Benefits of Purchase

By purchasing this antenna, you get not just a device, but a reliable tool for solving critically important tasks. It will allow you to significantly increase the flight range of FPV drones, ensure stable communication for repeaters and ground stations, and operate in conditions where ordinary antennas are ineffective. This antenna solves the problem of unreliable communication and signal loss, allowing you to fully focus on mission execution.

Additional Benefits and Guarantees

All antennas come with a manufacturer's warranty, confirming the high quality and reliability of the product. The product complies with safety and efficiency standards, as confirmed by relevant certificates.

Comparison with Other Models

Frequently Asked Questions

1. Can this antenna be used with equipment operating on other frequencies? No, the antenna is designed to operate in the 5.0-6.2 GHz range. Using it on other frequencies will significantly reduce efficiency.

2. Is a connection cable included? No, the cable is not included. It must be purchased separately.

3. What is the advantage of a horn antenna over patch antennas? Horn antennas generally have higher gain and better directivity, allowing for greater range and signal stability.

4. Is a case needed for this antenna? Although the antenna is made of durable plastic, a protective case is recommended for its protection against mechanical damage during transport.

5. What is the purpose of right-hand circular polarization (RHCP)? Circular polarization helps avoid signal fading when the antenna is rotated, which is especially useful when working with moving objects such as drones.
