The KR-640.700 conical horn antenna is a powerful solution for stable and high-speed wireless communication, eliminating interference problems and ensuring reliable coverage. Designed to operate in complex radio frequency environments, this antenna guarantees high spectral efficiency, allowing maximum utilization of available frequencies. It will become your indispensable assistant in deploying modern networks, providing excellent performance even in the noisiest conditions, and minimizing side lobes to avoid interference.

Purpose

The KR-640.700 conical horn antenna is designed for use in various fields where high-quality wireless communication is required:

•

  MIMO and Wi-Fi 802.11n wireless systems. Ideal for deploying high-performance wireless networks, ensuring stable operation and high data transfer rates.



•

  Multi-sector access points (PTMP). Provides targeted sector coverage, allowing the creation of efficient and scalable point-to-multipoint networks.



•

  WiMax "Wireless Internet Provider". Optimized for mobile sites of wireless internet providers where high coverage density and signal stability are required.



•

  Radar systems. Thanks to its compactness and high directivity, the antenna is an excellent choice for deploying radar systems that require precise and focused radiation.



•

  Coverage of hard-to-reach areas. Used to provide communication in mountainous areas, mines, and other places with significant altitude differences where uniform coverage is required.




•
•
•

Key Features

Figure 1. VSWR of KR-640.700 LHCP Horn Antenna.

Typical antenna parameters

Design Features

•

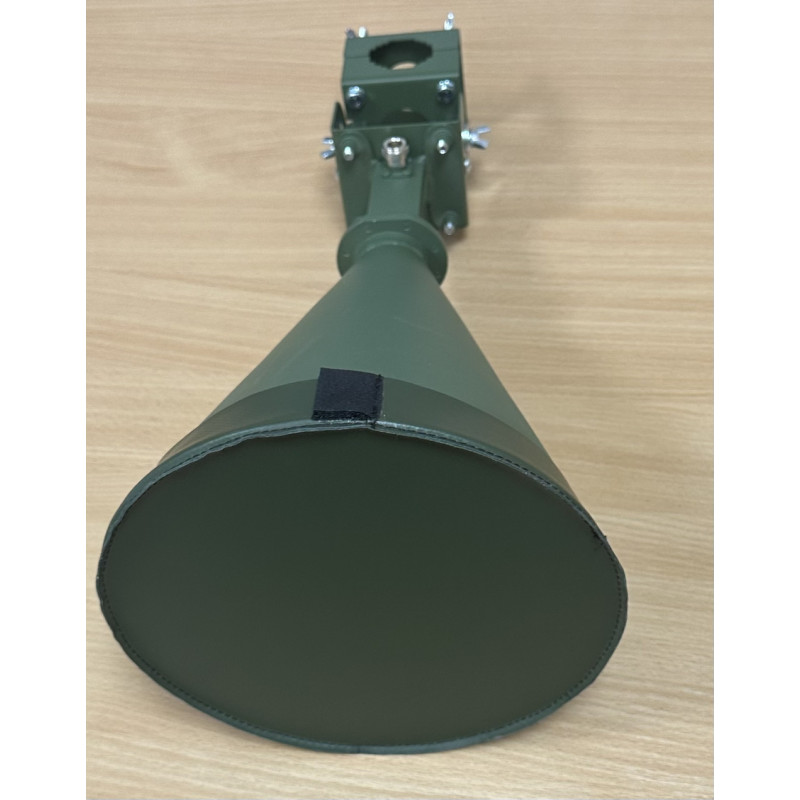

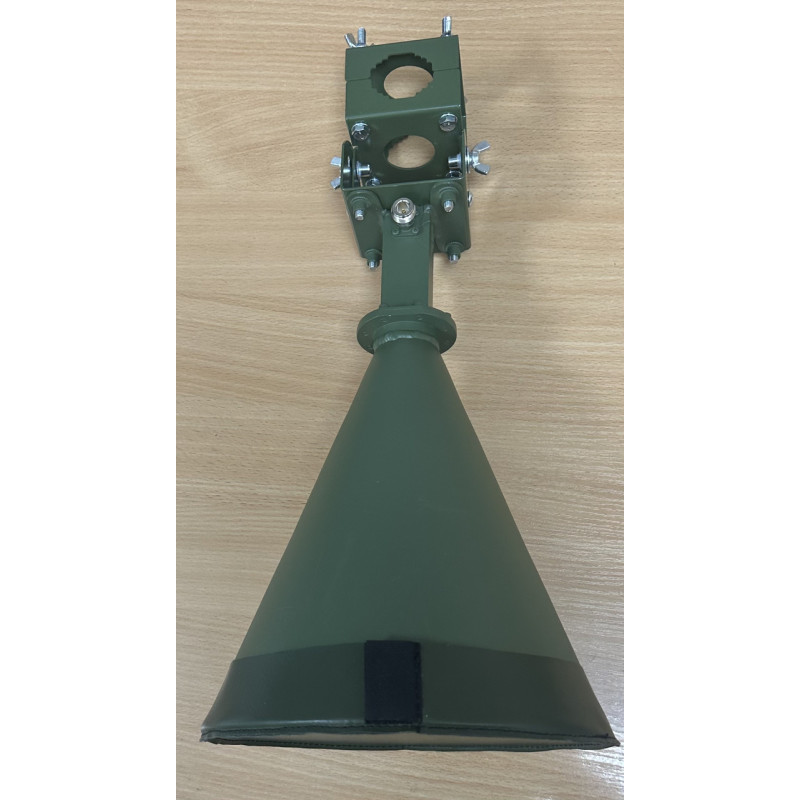

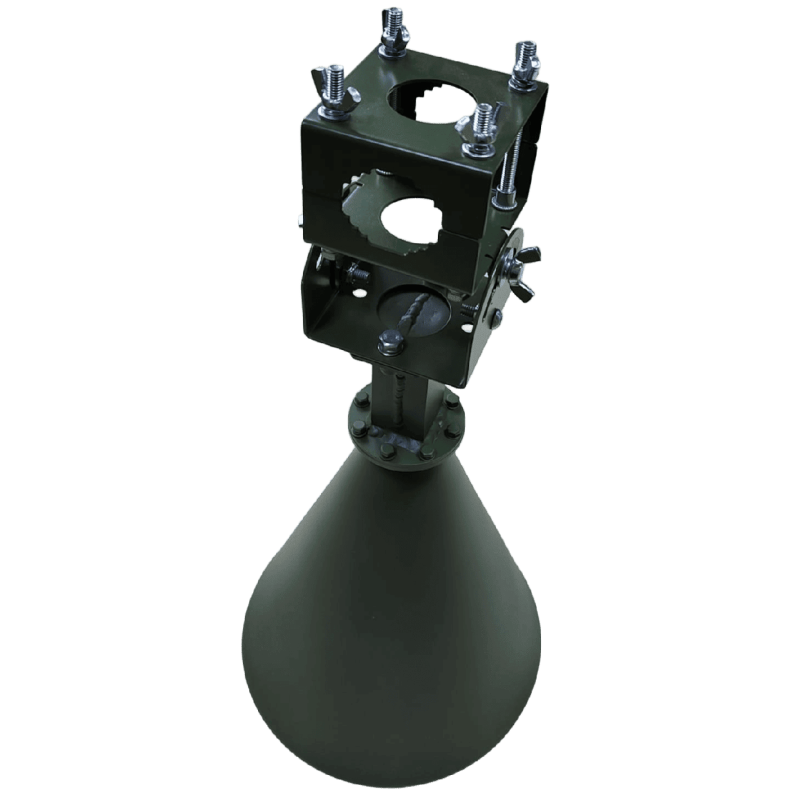

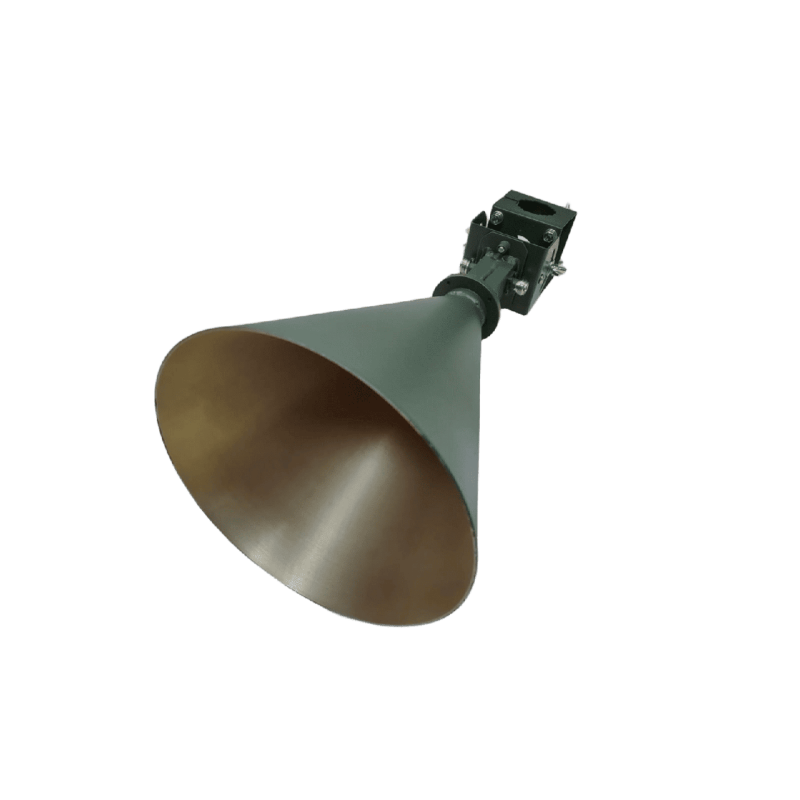

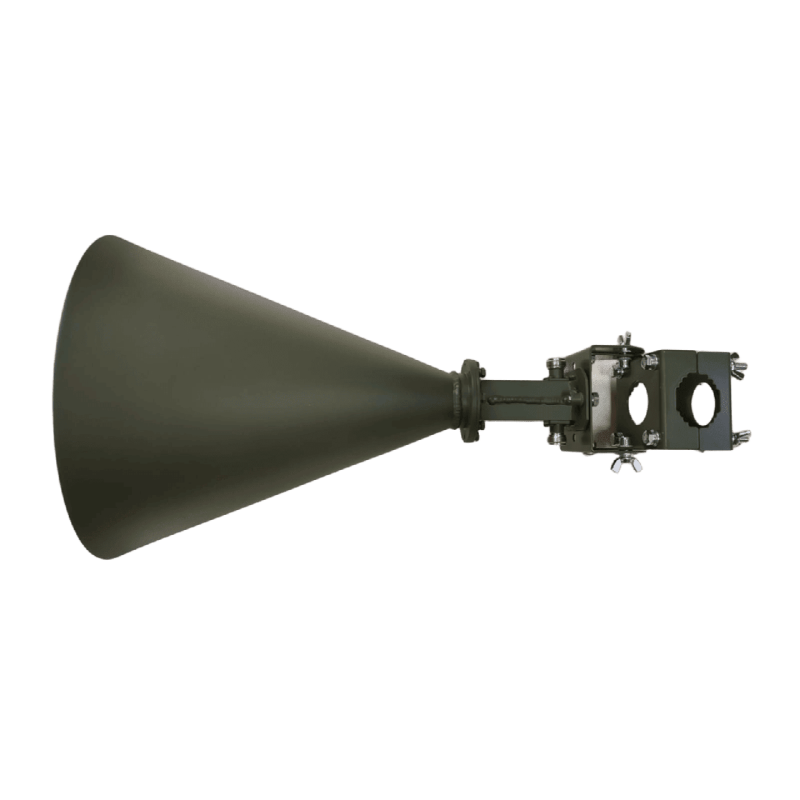

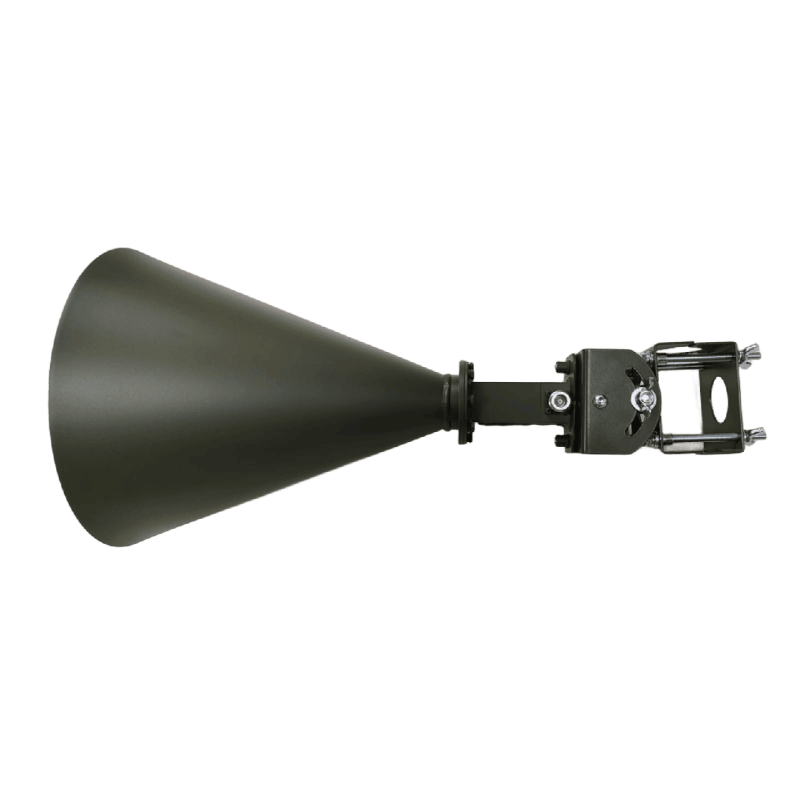

  Conical horn. High-strength metal construction, optimized for significant side lobe suppression, which minimizes interference and increases spectral efficiency.



•

  Two inputs. The KR-640.700 conical horn antenna is equipped with two inputs that allow quick switching between right and left circular polarization to adapt to communication conditions.



•

  Reliable mounting. Metal mounting brackets are designed to withstand wind speeds up to 100 km/h, ensuring stability in the most challenging weather conditions.



•

  Corrosion resistance. The antenna's design is developed to be corrosion-resistant, which is especially important in high humidity conditions.




•
•
•

Advantages

•

  Stable signal gain. The KR-640.700 conical horn antenna provides a large and stable gain of > 20 dBi, allowing for wide bandwidth and reliable communication even over significant distances.



•

  Interference protection. Thanks to significant side lobe suppression and an F/B ratio of > 43 dB, the antenna effectively minimizes interference from adjacent channels. This makes it ideal for deploying networks in noisy urban environments.



•

  High MIMO efficiency. Over 25 dB polarization isolation and high port isolation ensure optimal performance in MIMO systems, maximizing data transfer rates.



•

  Compactness and directivity. With a compact form factor (Ø220 x 333 mm) and highly directional radiation, the antenna is ideal for deploying high-density radar systems and precise coverage.




•
•
•

Equipment Compatibility

The KR-640.700 conical horn antenna is compatible with the following equipment:

•

  Access points and routers. Suitable for most modern access points operating in the 6.1-7.4 GHz frequency range.



•

  MIMO systems. Works optimally with equipment supporting MIMO technology.



•

  Radio relay equipment. Can be used in radio relay systems to create reliable communication channels.



•

  Mounting elements. The included bracket allows easy antenna mounting on a mast and is compatible with most standard mounting solutions.




•
•
•

How to choose the right antenna

•

  Frequency range. Make sure your equipment's frequency range (6.1-7.4 GHz) matches the antenna's operating range. Frequency incompatibility can lead to inefficient operation.



•

  Gain. Choose an antenna with gain that meets your needs. Long-distance communication requires higher gain, which for this model is > 20 dBi.



•

  Polarization type. This model supports circular right and left polarization, making it versatile for many tasks. Ensure your equipment supports these polarization types.



•

  Dimensions and weight. Pay attention to size and weight, especially when installing on tall masts. The KR-640.700 conical horn antenna weighs only 0.75 kg and has compact dimensions.




•
•
•

Installation and Setup

Installation of the KR-640.700 conical horn antenna is simple and intuitive. It is mounted on a mast using the included bracket. After physical attachment, coaxial cables must be connected to the antenna adapter and to your equipment. Polarization selection is done by switching to the corresponding input. For optimal performance, the antenna should be precisely aimed at the receiving device using alignment tools.

Package Contents and Packaging

The KR-640.700 antenna package includes:

1. Conical horn - 1 pc.


2. Adapter with two coaxial inputs and polarizer - 1 pc.


3. Mounting bracket for mast - 1 pc.



4.
5.
6.

The antenna is supplied in durable packaging that reliably protects it from mechanical damage during transportation.

Purchase Benefits

By purchasing the KR-640.700 antenna, you get a reliable and powerful tool for building wireless networks. This antenna solves the problem of unstable communication, providing high data transfer speeds, minimizing interference, and allowing efficient use of frequency resources. Thanks to its design features, you can deploy a network with high coverage density, which is critically important for modern communication systems.

Additional Benefits and Guarantees

All antennas come with a manufacturer's warranty, confirming the high quality and reliability of the product. The design of the KR-640.700 conical horn antenna is developed with resistance to aggressive environmental conditions in mind, guaranteeing its durability and stable operation over a long period.

Comparison with other models

Frequently Asked Questions

What is the difference between right and left circular polarization? Circular polarization is used to minimize the effects of multipath signal propagation. Right and left polarization differ in the direction of the electric field's rotation, allowing them to be used for channel separation and reduction of cross-interference.

Are additional cables needed for connection? The antenna comes with two inputs, to which coaxial cables (not included) must be connected. The choice of cables depends on your equipment and the length of the run.

Can this antenna be used for 5 GHz Wi-Fi? No, this antenna is designed for the 6.1-7.4 GHz range and will not work effectively at 5 GHz. For 5 GHz Wi-Fi, a suitable antenna should be chosen.

How to choose between the two circular polarizations? The choice between right and left polarization depends on your network requirements and the presence of interference. Often, both types are used for MIMO systems to improve performance.

Don't delay! Add the KR-640.700 conical horn antenna to your cart today to ensure reliable and powerful wireless communication.
