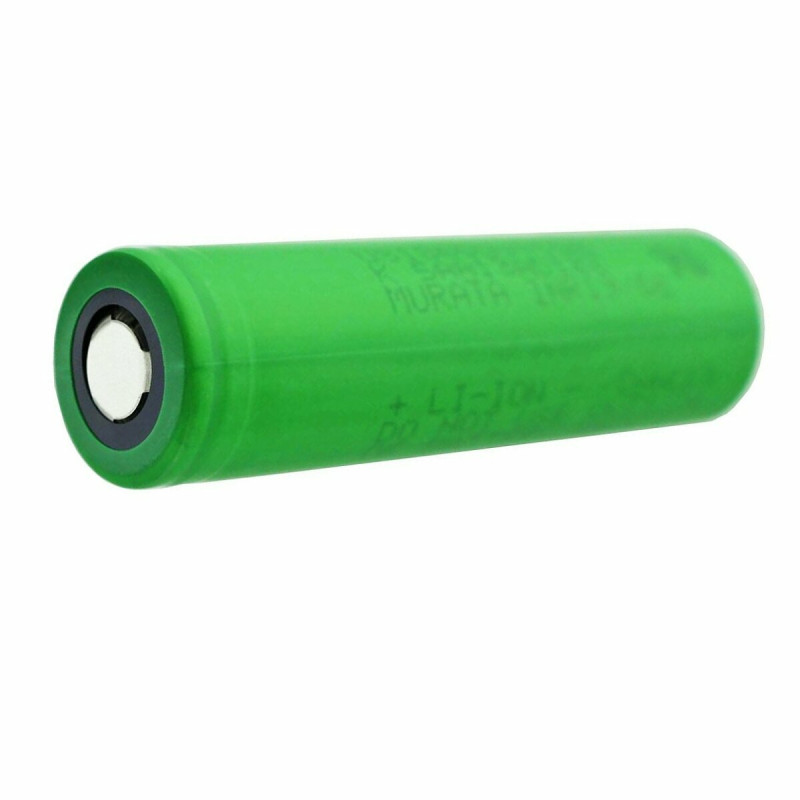

Battery Sony Murata US21700VTC6A 4100mAh - 40A
Introducing a cylindrical 21700 form factor battery, listed in the product card as a Sony brand product (model Sony Murata US21700VTC6A 4100mAh - 40A). However, the technical specifications provided below correspond to the Samsung INR21700-50S model — the description compiles all available parameters and operational requirements so you can assess the compatibility and capabilities of the cell.
The battery is designed in a 21700 form factor with a hard cylindrical casing, 1S1P configuration. The hard construction provides enhanced mechanical strength and ease of integration into various devices and DIY battery packs. The cell has a low self-discharge rate and exhibits no memory effect, which is important for long-term use.
Electrical parameters and operational characteristics: nominal voltage 3.6 V; in standard continuous mode, current output is 9.8 A (2C), pulse current output up to 14.7 A. Recommended charging mode 0.33C (1.25 A) for a standard cycle with fast charging capability up to 4 A. Please note the discrepancies in sources: the product title indicates 4100 mAh and 40A, while the specification table lists a capacity of 4850 mAh — when selecting a cell, always check compatibility with your device and the actual markings on the cell.
The battery has high cyclability: it retains more than 80% of its initial capacity after 500 cycles, making it cost-effective for long-term use. The cell is supplied without built-in connectors and without balancing connectors; connection is intended by welding (Flat top).
| Specifications | Description |
|---|---|
| Manufacturer | Samsung |
| Type | Li-ion |
| Chemistry Type | INR (Lithium Manganese Nickel) |
| Capacity | 4850 mAh |
| Voltage | 3.6 V |
| Configuration | 1S1P |
| Multi-tab | No |
| Current Output | 2 C (9.8 A continuous, 14.7 A – pulse) |
| Charge Current | 0.33 C (1.25 A standard, 4 A for fast charging) |
| Casing | Hard |
| Cell Form Factor | Cylindrical 21700 |
| Connector | No |
| Balancing Connector | No |
| Battery Connection | For welding (Flat top) |
| Dimensions | 21.1×21.1×70.15 mm |
| Weight | 69.5 g |
| Cyclability | High (retains >80% capacity after 500 cycles) |
| Overcharge Protection | Yes |
| Over-discharge Protection | Yes |
| Short Circuit Protection | Yes |
| Operating Temperature | Charging: 0°C to +45°C, Discharging: -20°C to +60°C |
| Certification | UL, CE, RoHS |
Package Contents: Battery – 1 pc.
Additionally required:
- Holder – 1 pc.
- Spot welding machine (if battery assembly is needed) – 1 pc.
- Spot welding strip – 1 pc.
This cell is suitable for DIY battery pack assembly or replacement in existing projects where high peak and continuous current output, a durable casing, and reliable protections are required. Before use, always check compatibility with the device, verify the markings on the cell, and follow safe charging and installation rules, especially when welding contacts. Product category information: Drones and Quadcopters > Drone Batteries.
