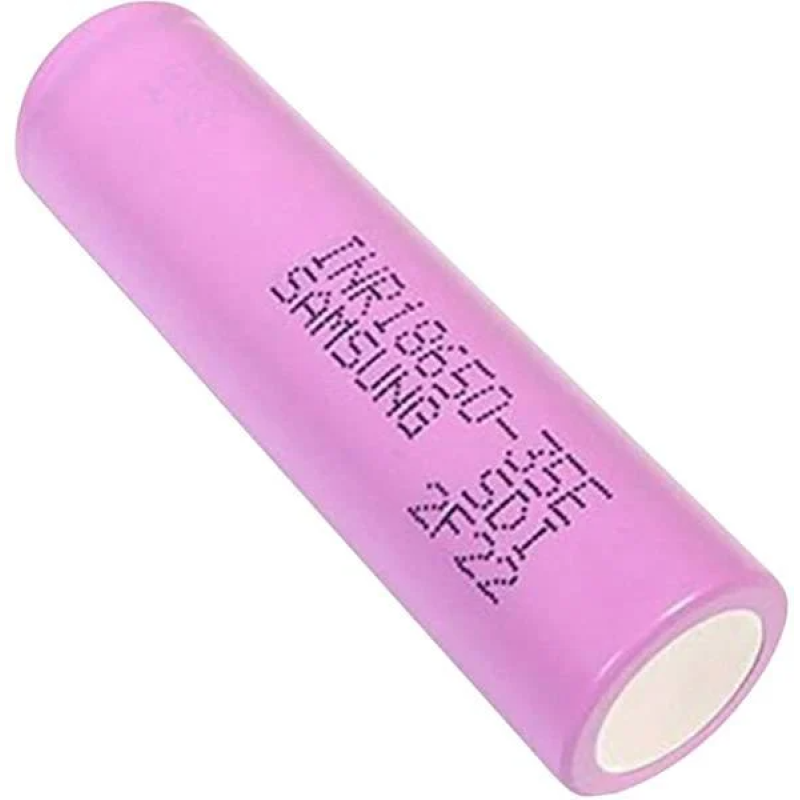

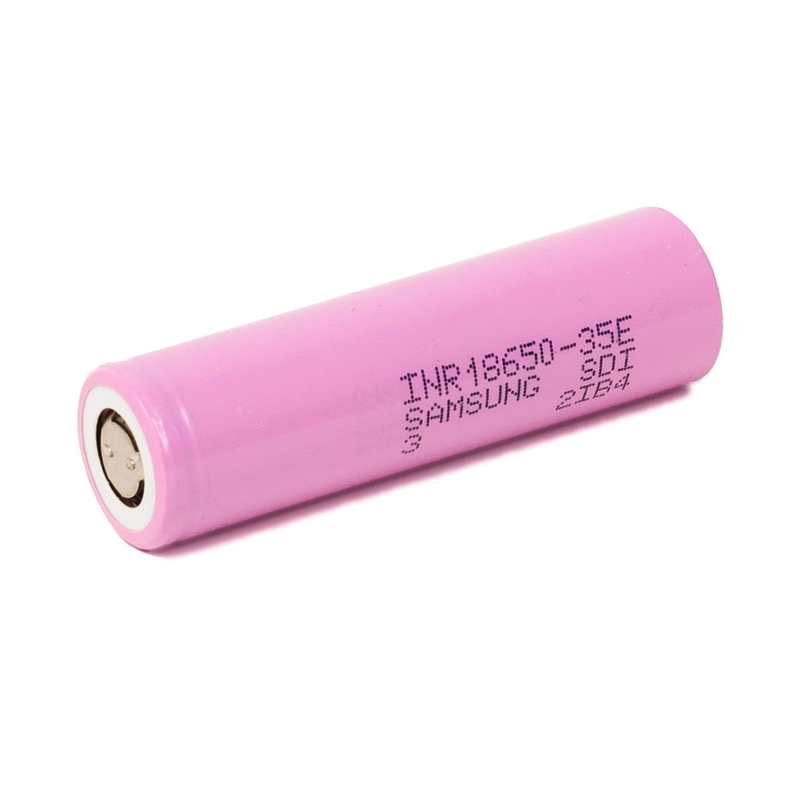

Samsung INR18650-35E 3450mAh Battery – Original Samsung SDI Cells
The industrial version of INR18650-35E lithium-ion battery cells from the renowned manufacturer Samsung SDI is ideal for assembling batteries according to your needs and tasks. Samsung INR18650-35E cells are distinguished by their high capacity of 3450mAh and reliable performance.
Samsung INR18650-35E Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Samsung SDI |
| Model | INR18650-35E |
| Type | Li-ion |
| Capacity | 3450 mAh (3450mAh) |
| Voltage | 3.6 V |
| Maximum Charge Voltage | 4.2 V |
| Cut-off Voltage | 2.65 V |
| Configuration | 1S1P |
| Current Discharge Rate | 2.5 C (8 A continuous, 13 A instantaneous) |
| Charge Current | 0.3 C (1.7 A standard, 1.02 A for cyclic charging) |
| Charging Time | 4 hours |
| Charging Mode | CC-CV |
| Internal Resistance | up to 35 mOhm |
| Casing | Hard |
| Connector | None |
| Balancing Connector | None |
| Dimensions | 18.55×18.55×65.25 cm |
| Weight | 50 g |
Samsung INR18650-35E Package Contents
| Component | Quantity, pcs. |
|---|---|
| Samsung INR18650-35E Battery | 1 |
Additional items required for INR18650-35E use:
| Component | Quantity, pcs. |
|---|---|
| Holder | 1 |
| Spot Welding Machine (if battery assembly is required) | 1 |
| Spot Welding Strip | 1 |
Samsung INR18650-35E Features and Warnings
Samsung SDI INR18650-35E industrial-standard batteries are equipped only with an internal safety valve that disconnects the battery if internal pressure increases due to electrolyte evaporation or battery overheating. We emphasize that these batteries are not intended for direct use in consumer electronics, as they do not have a protruding positive contact and require spot welding to connect battery cells and output busbars.
Soldering Samsung INR18650-35E 3450mAh batteries is prohibited due to the risk of thermal runaway and battery ignition, as well as accelerated degradation of battery plates due to heating. The safe use of these batteries entirely depends on compliance with the standards specified in the technical data sheet, as well as the use of appropriate engineering solutions and methods.
INR18650-35E cells from Samsung SDI are characterized by high manufacturing quality and parameter stability, making them an ideal choice for assembling powerful batteries with a capacity of 3450mAh.
