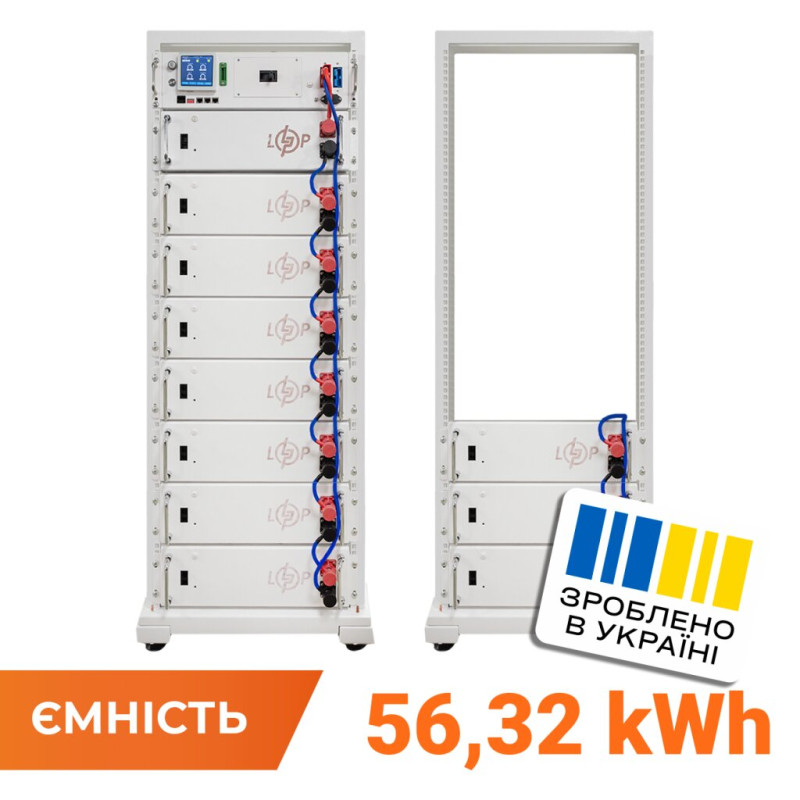

Product Code: FA94-37927-94
559 418 грн.
Buy this product in 1 click:
Main specifications
Ability to add battery packs:
no
Ambient humidity, %(RH):
10～80%
Balancer Type:
Active up to 5A
Battery storage temperature, °C:
-20 ~ +40
BMS:
High-Voltage 125A
All specifications
We will deliver this product:
Payment
Specifications
Ability to add battery packs
no
Ambient humidity, %(RH)
10～80%
Balancer Type
Active up to 5A
Battery storage temperature, °C
-20 ~ +40
BMS
High-Voltage 125A
Capacity, Wh
56320
Cell connection diagram
176S1P
Cell type
Prismatic
Charge operating temperature, °C
0 ~ +40
Charging voltage (buffer mode), V
598.4
Discharge operating temperature, °C
-4 ~ +140
Display
Color active
Full charge voltage, V
642.4
Height, mm **
1800
Housing material
metal
Length, mm **
600
Maximum charge current, A
100
Maximum discharge current, A
100
Minimum voltage, V
475.2
Mounting type
19" Rack
Network Connection and Remote Monitoring
LAN/RS485/CAN
Nominal capacity, Ah
100
Nominal charging current, A
50
Nominal discharge current, A
50
Nominal voltage, V
563.2
Number of battery packs
11
Number of cycles
7000
Overall dimensions (LxWxH), mm *
600*550*1800
Parallel assembly work
no
Protection level
IP20
Recommended low voltage cutoff, V
492.8
Reconnecting charge voltage, V
616
Reconnection discharge voltage, V
545.6
Terminal type
T11 (for M8 bolt)
Type
LiFePO4
Warranty, months
60
Weight, kg
573.97
Width, mm **
550
