Product Code: FA94-22424-94
32 625 грн.
Buy this product in 1 click:
Main specifications
Battery storage temperature, °C: -20 ~ +40
BMS: 24V 8S Dis 100A Ch 100A
Charge operating temperature, °C: 0 ~ +45
Charging voltage (buffer mode), V: 27.6
Charging voltage (cyclic mode), V: 29.2
All specifications
We will deliver this product:
Payment
Description

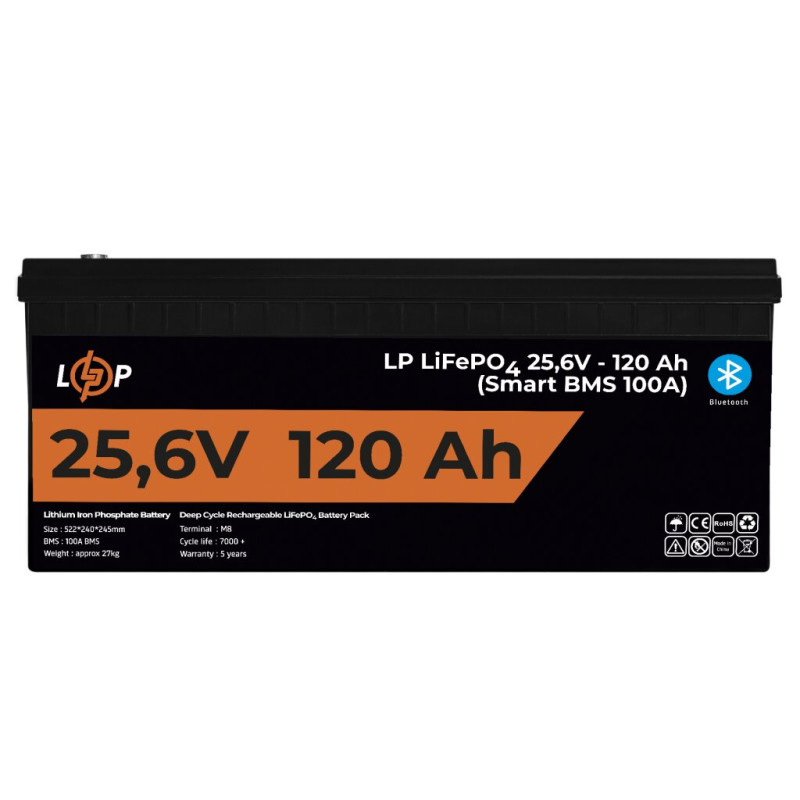

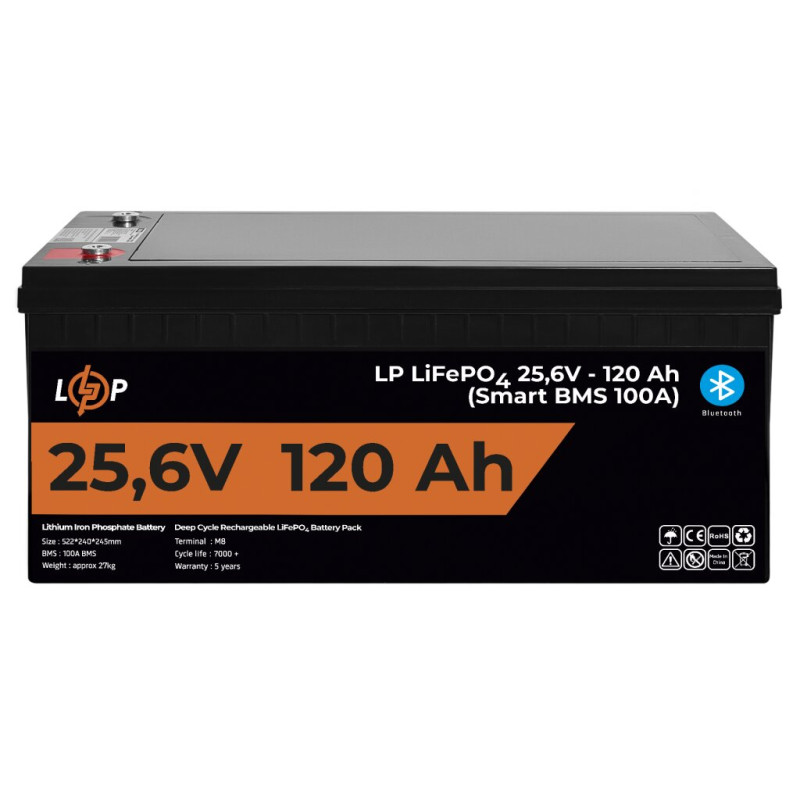

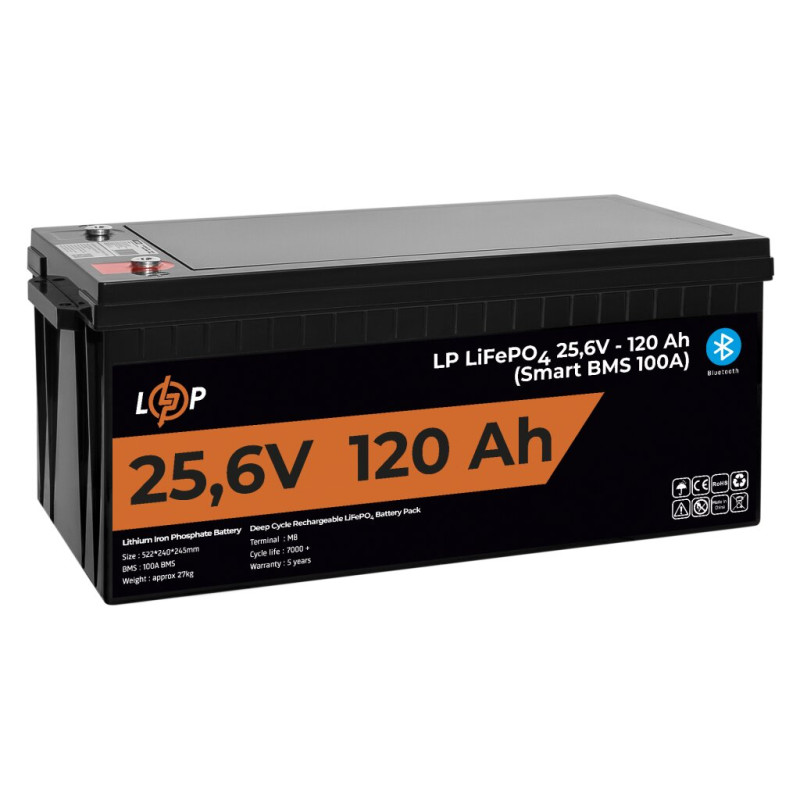

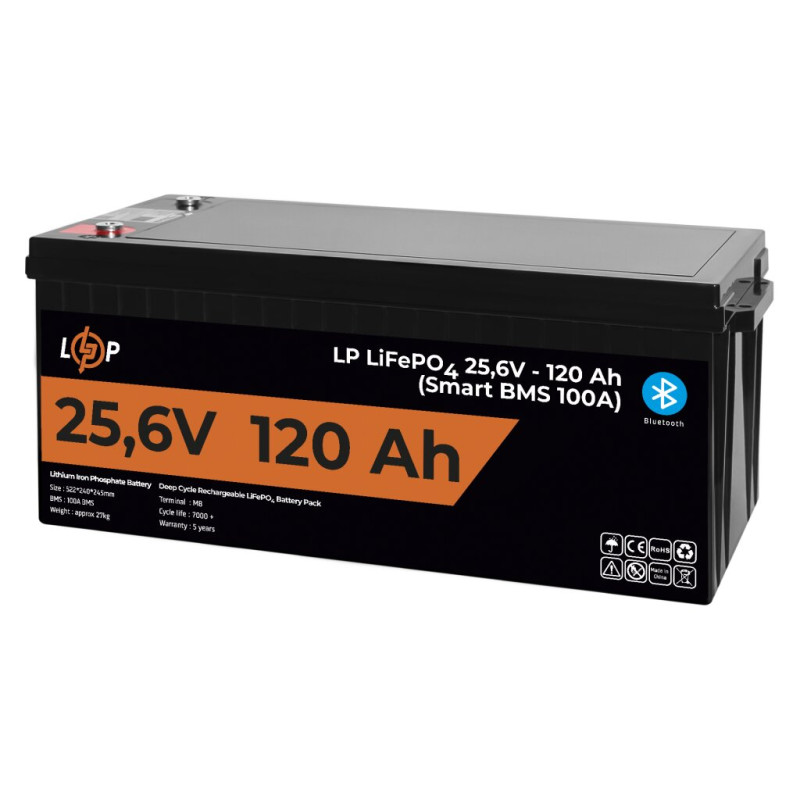

LiFePO4 SMART BMS Bluetooth Battery

New-generation lithium iron phosphate LiFePO4 batteries with a unique BMS board are the most efficient and safest batteries for household and industrial uninterruptible power supply systems.

The intelligent BMS board is a programmable management system for lithium iron phosphate (LiFePO4) batteries.

Buy a Smart LiFePO4 battery in Ukraine: where can they be used?

  • Electric mopeds, scooters, hydro-scooters, motorboats, passenger cars, SUVs, trucks, special vehicles, etc.
  • Electric forklifts, floor scrubbers, lawnmowers, and other special equipment
  • Backup and uninterruptible power supply systems for homes, offices, warehouses, production facilities, etc.
  • Solar power plants and other alternative energy sources
  • Portable charging stations for mobile phones, laptops, drones, etc.

BMS intelligent protection board balancer Bluetooth: how does it help increase efficiency and extend the service life of lithium batteries?

SMART BMS Bluetooth boards can be used in lithium batteries with various chemical properties: lithium iron phosphate, lithium-ion, lithium polymer, etc.

Dual-layer hardware and software protection provides high protective potential during battery charging and discharging:

  • overcharge
  • protection against high or low temperatures
  • overcurrent protection
  • short circuit protection, etc.

Static balance function for efficient automatic battery charging.

Automatic heating function is activated by the battery management system (BMS). When charging the battery at low temperatures (-20°C - 5℃), the system will maintain the temperature inside the cells between 5°C and 10℃. This ensures battery protection during charging in cold weather.

Internal temperature sensor provides triple control of the battery's operating temperature.

Bluetooth with isolated UART - always relevant and timely information about the battery status:

  • battery charge level monitoring
  • battery operating status notifications
Specifications
Battery storage temperature, °C -20 ~ +40
BMS 24V 8S Dis 100A Ch 100A
Charge operating temperature, °C 0 ~ +45
Charging voltage (buffer mode), V 27.6
Charging voltage (cyclic mode), V 29.2
Discharge operating temperature, °C -4 ~ +140
Full charge voltage, V 29.2
Height, mm 240
Housing material plastic
Internal resistance, mOm less than 40
Length, mm 522
Maximum charge current, A 100
Maximum discharge current, A 100
Minimum voltage, V 21
Nominal capacity, Ah 120
Nominal capacity, mAh 100000
Nominal values of elements 100
Nominal voltage, V 24 (25.6)
Number of cycles 7000
Number of elements in group S 8
Number of items in group R 1
Peak discharge current (100 ms), A 200
Stored energy, Wh 3072

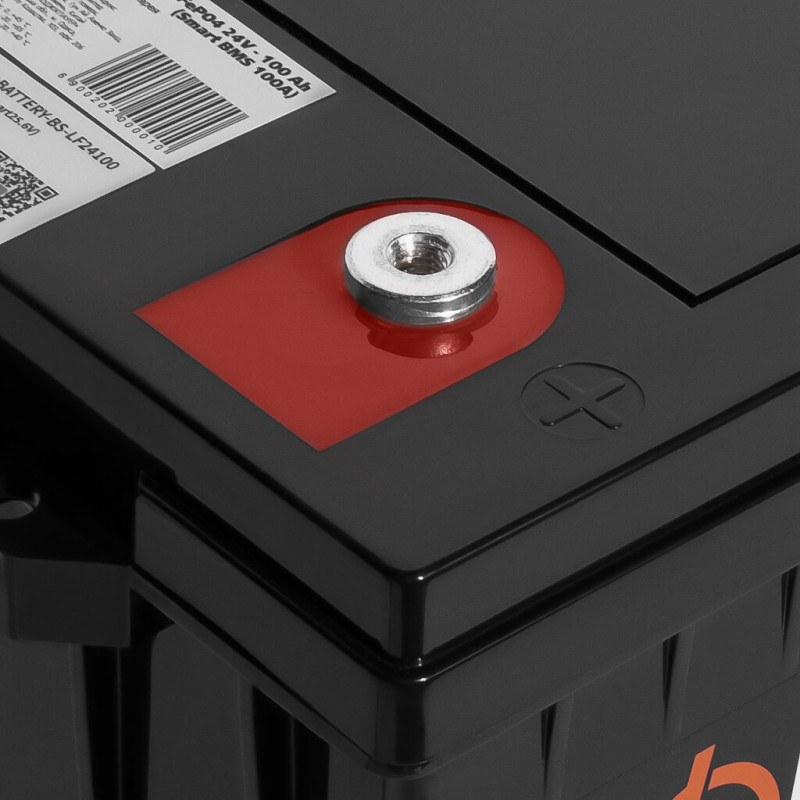

Terminal type T11 (for M8 bolt)
Type LiFePO4
Warranty, months 60
Weight, kg 21.15
Width, mm 218
