Product Code: FA94-24662-94
In Stock
16 074 грн.
Buy this product in 1 click:
Main specifications
Ambient humidity, %(RH): 10~80%
Balancer Type: Active up to 1A
Battery storage temperature, °C: -20 ~ +40
Capacity, Wh: 1280
Cell connection diagram: 4S1P
All specifications
We will deliver this product:
Payment
Description

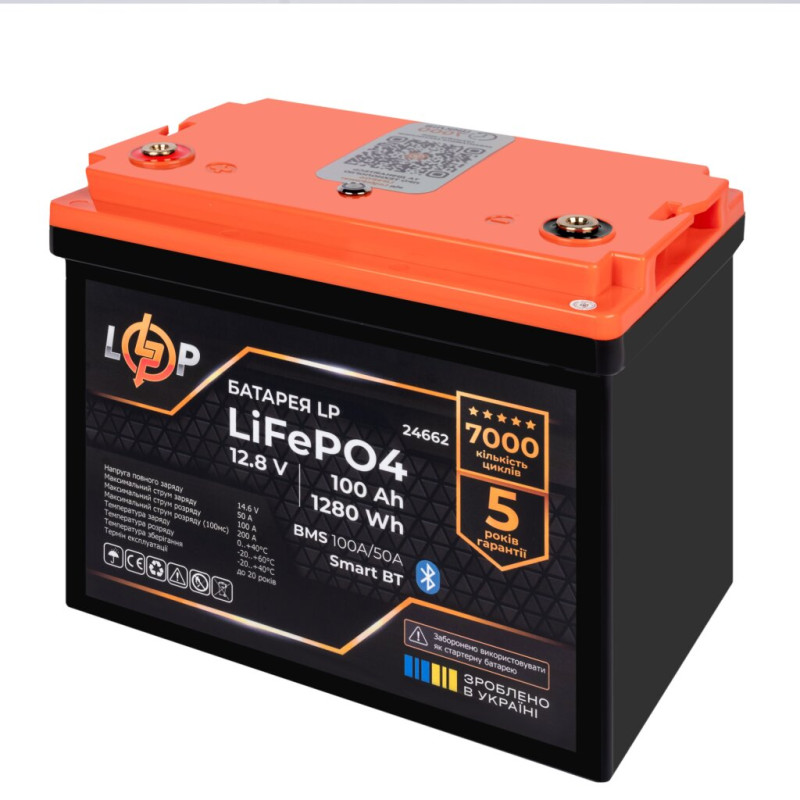

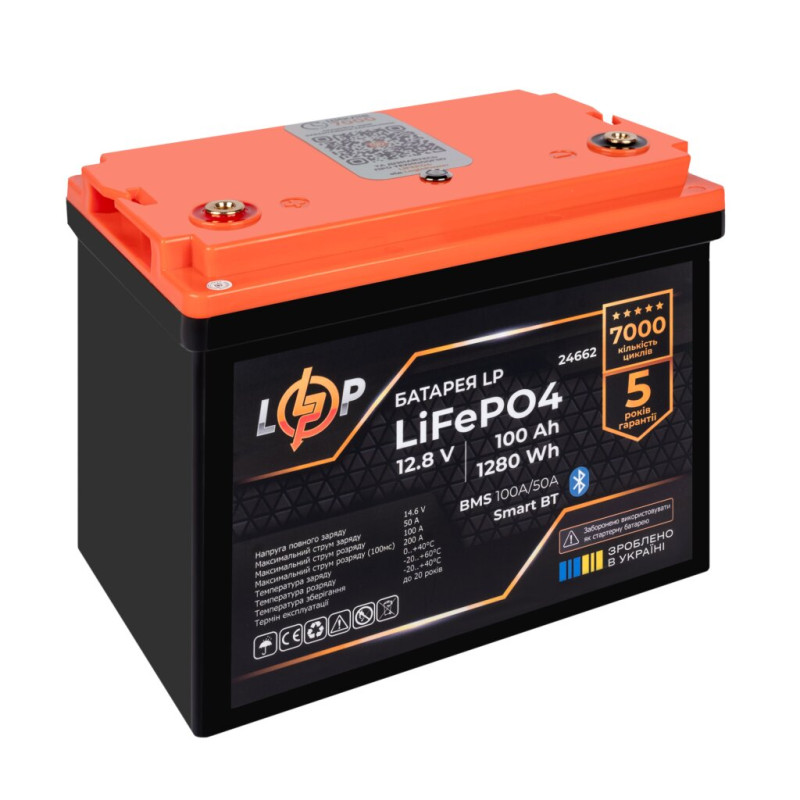

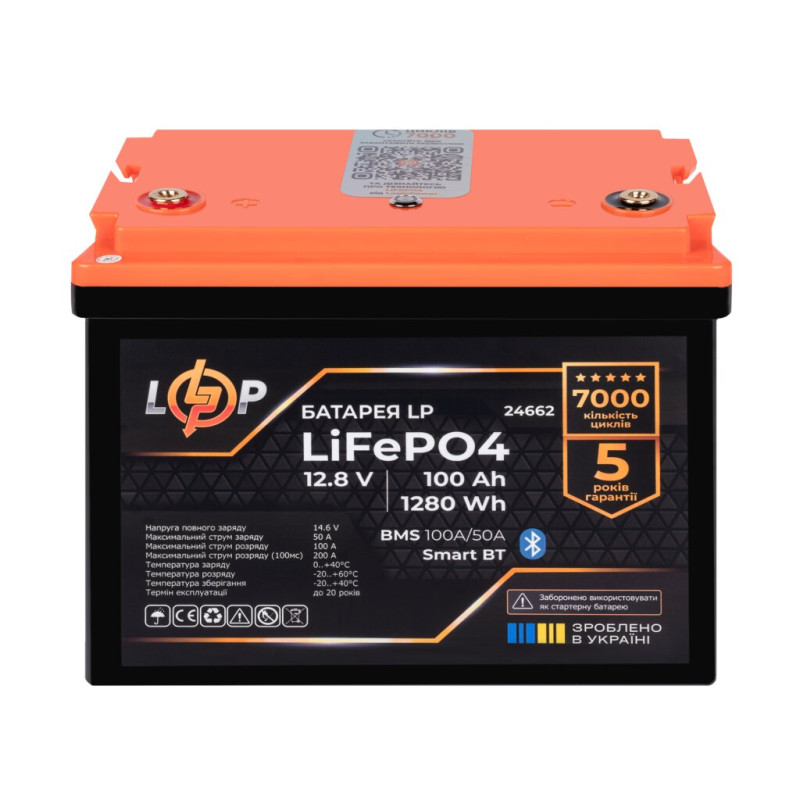

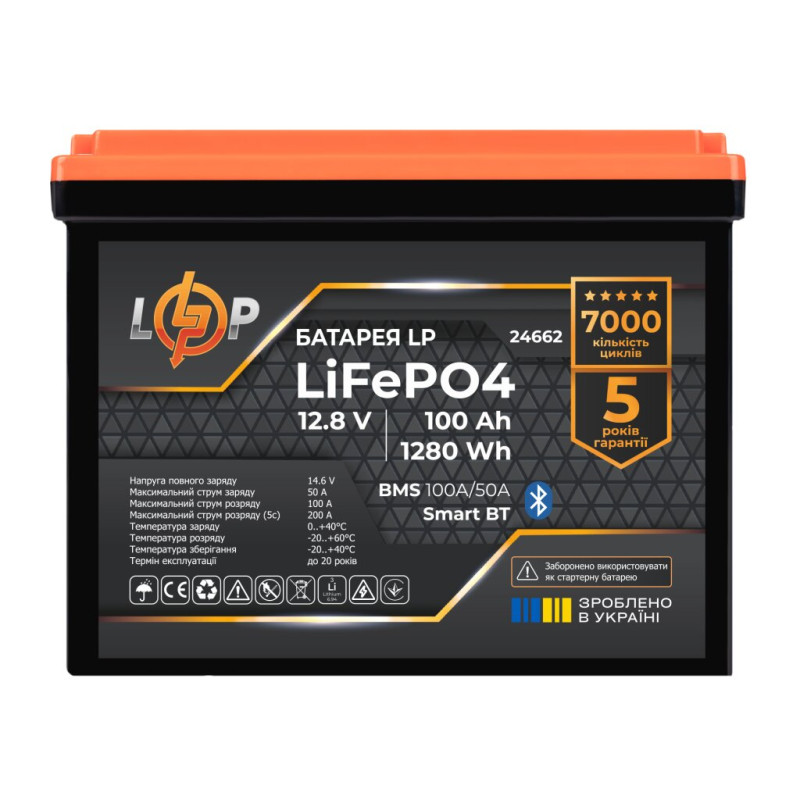

LiFePO4 SMART BMS Bluetooth Battery

New generation lithium iron phosphate LiFePo4 batteries with a unique BMS board are the most efficient and safest batteries for domestic and industrial uninterruptible power supply systems.

The intelligent BMS board is a programmable control system for lithium iron phosphate (LiFePO4) batteries.

Buy a Smart LiFePO4 battery in Ukraine: where can they be used?

  • Electric forklifts, floor scrubbers, lawnmowers, and other special equipment
  • Backup and uninterruptible power supply systems for homes, offices, warehouses, production, etc.
  • Solar power plants and other alternative energy sources
  • Portable charging stations for mobile phones, laptops, drones, etc.

BMS intelligent protection board, active balancer, Bluetooth: how does it help increase efficiency and extend the service life of lithium batteries?

SMART BMS Bluetooth boards can be used in lithium batteries with various chemical properties: lithium iron phosphate, lithium-ion, lithium polymer, etc.

Two-layer hardware and software protection provides high protective potential during battery charging and discharging:

  • overcharge
  • low charge protection
  • high or low temperature protection
  • overcurrent protection
  • short circuit protection, etc.

Active balance function for efficient automatic battery charging and maintaining the same voltage on each cell.

The battery can be used both as part of a UPS and with any load-compatible device.

The internal temperature sensor provides triple control of the battery's operating temperature.

Bluetooth - always relevant and timely information about the battery status:

  • battery charge level control
  • battery operation status control
  • battery capacity control
Specifications
Ambient humidity, %(RH) 10~80%
Balancer Type Active up to 1A
Battery storage temperature, °C -20 ~ +40
Capacity, Wh 1280
Cell connection diagram 4S1P
Cell type Prismatic
Charge operating temperature, °C 0 ~ +40
Charging voltage (buffer mode), V 13.6
Charging voltage (cyclic mode), V 14.6
Communication interface Bluetooth (RS485 Optional)
Discharge operating temperature, °C -4 ~ +140
Height, mm ** 210
Housing material Plastic
Length, mm ** 260
Maximum charge current, A 50
Maximum discharge current, A 100
Minimum voltage, V 10.5
Nominal capacity, Ah 100
Nominal charging current, A 50
Nominal values of elements 100
Nominal voltage, V 12 (12.8)
Number of cycles 7000
Overall dimensions (LxWxH), mm * 260*170*210
Peak Discharge Current, A 200 (100ms)
Protection level IP54
Recommended low voltage cutoff, V 11.2
Reconnecting charge voltage, V 14.2
Reconnection discharge voltage, V 10.6
Self-discharge, %/month <3%
Short-circuit current, A 200

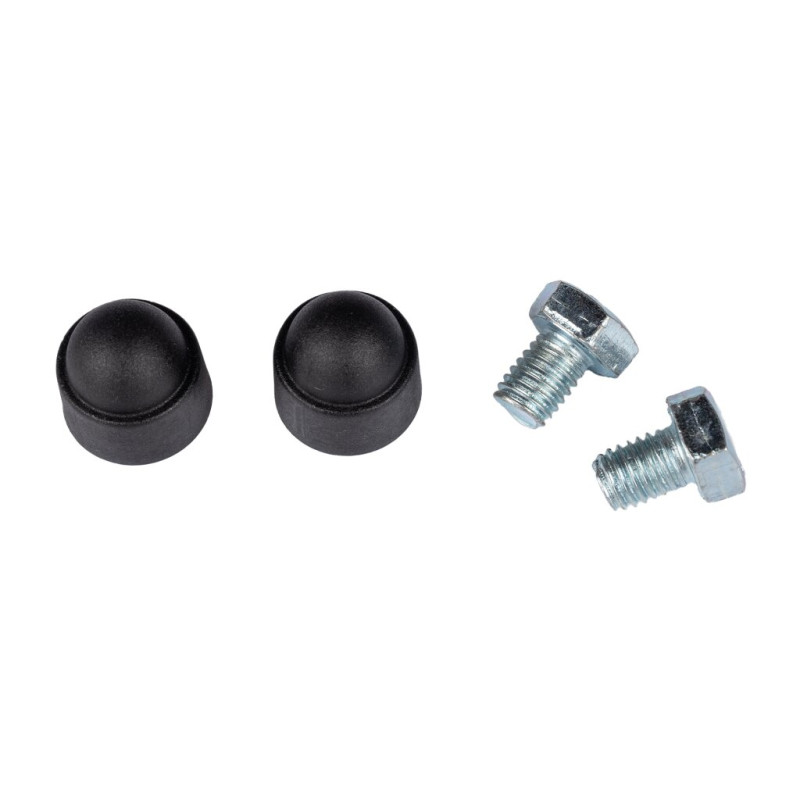

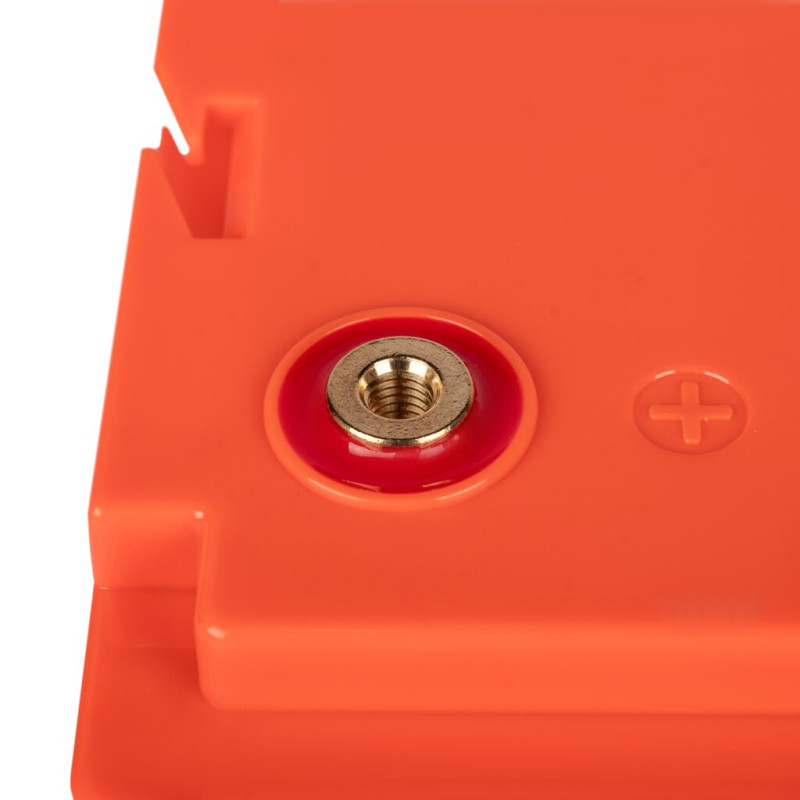

Terminal type T6 (for M8 bolt)
Type LiFePO4
Warranty, months 60
Weight, kg 9.67
Width, mm ** 170
