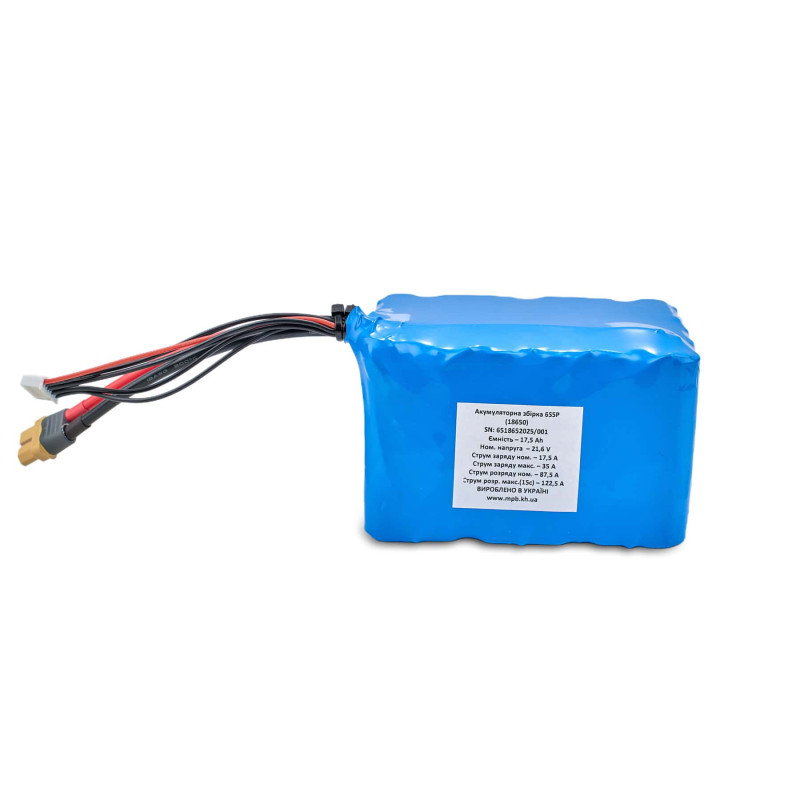

The 6S5P 18650 Panasonic battery pack is a highly efficient and powerful power source for various electronic devices.

This is a lithium-ion battery pack consisting of five parallel rows (5P) of 18650-format batteries.

Key features:

Purpose: battery pack for powering FPV drones

6S5P Capacity: 17.5 Ah

The 6S5P configuration indicates that the battery consists of six series-connected cells and five such groups connected in parallel. This allows for high voltage and capacity.

Battery type: Uses lithium-ion technology, which provides high energy capacity and long operating time between charges.

Panasonic brand: this battery is known for its quality and reliable power supply.

Voltage and capacity: The typical voltage for multi-purpose (6S) lithium-ion batteries is approximately 21.6 volts, and the capacity is 17500 mAh, with a maximum discharge current of 122.5A.

The pack has an XT60H power connector and a JST XH 2.54mm balance connector.

Power wire type – 12 AWG, balance wire – 22 AWG.

Wire length: 12cm for balance, 17cm for power.
