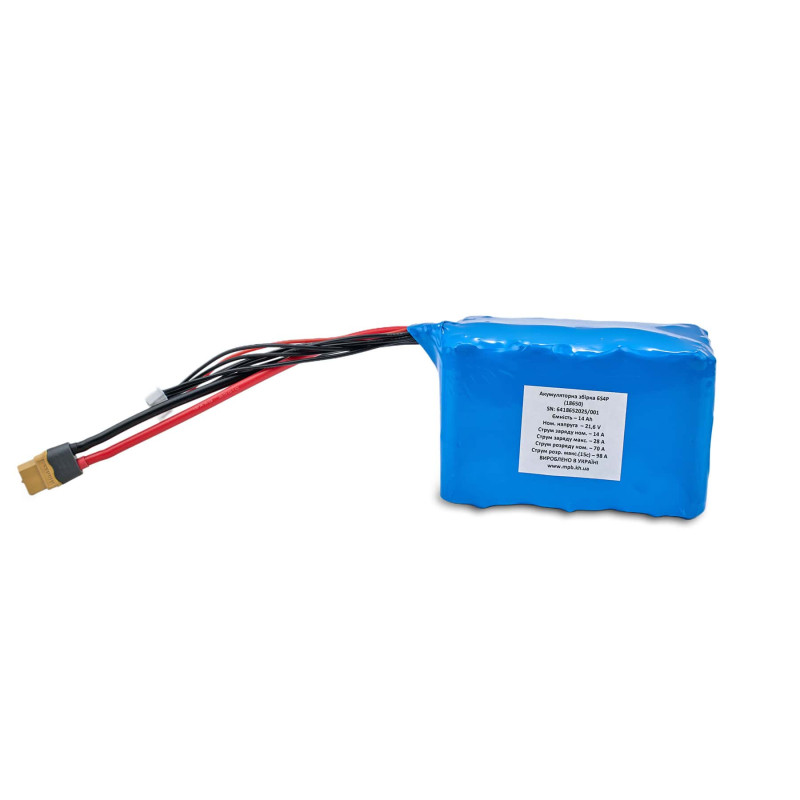

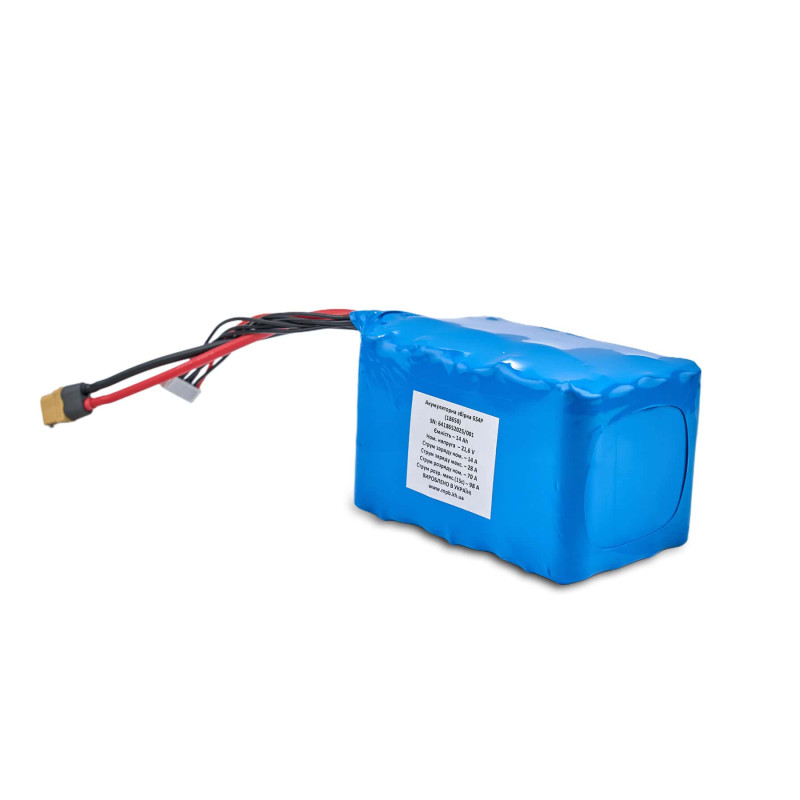

The 6S4P 18650 Panasonic battery pack is a highly efficient and powerful power source for various electronic devices.

This is a lithium-ion battery pack consisting of four parallel (4P) rows of 18650-format batteries.

Key Features:

Purpose: battery pack for powering FPV drones

6S4P Capacity: 14 Ah

The 6S4P configuration indicates that the battery consists of six serially connected cells, and four such groups connected in parallel. This allows for high voltage and capacity.

Battery Type: Uses lithium-ion technology, which provides high energy capacity and long operating time between charges.

Panasonic Brand: This battery is known for its quality and reliable power supply.

Voltage and Capacity: The typical voltage for multi-purpose (6S) lithium-ion batteries is approximately 21.6 volts, and the capacity is 14000 mAh, with a maximum discharge current of 98A.

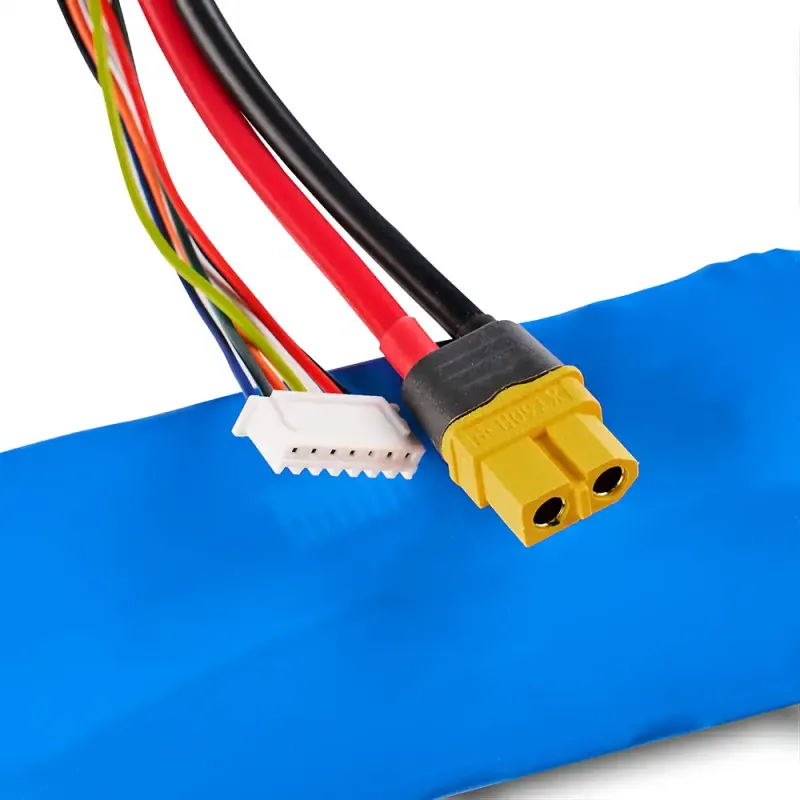

The pack has an XT60H power connector and a JST XH 2.54mm balance connector.

Power wire type – 12 AWG, balance wire – 22 AWG.

Wire length: 12cm – balance, 17cm – power.
