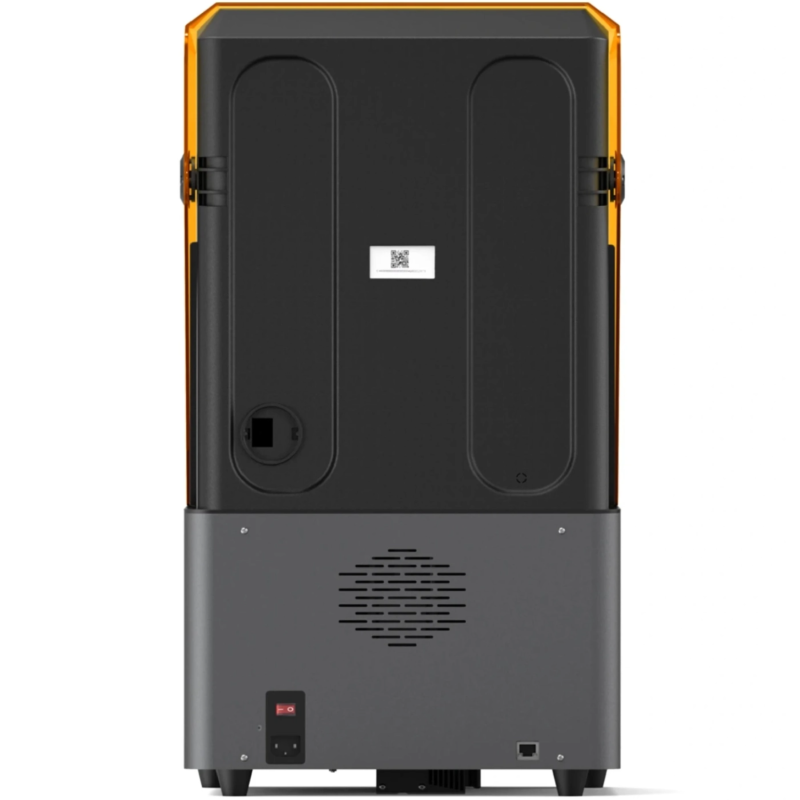

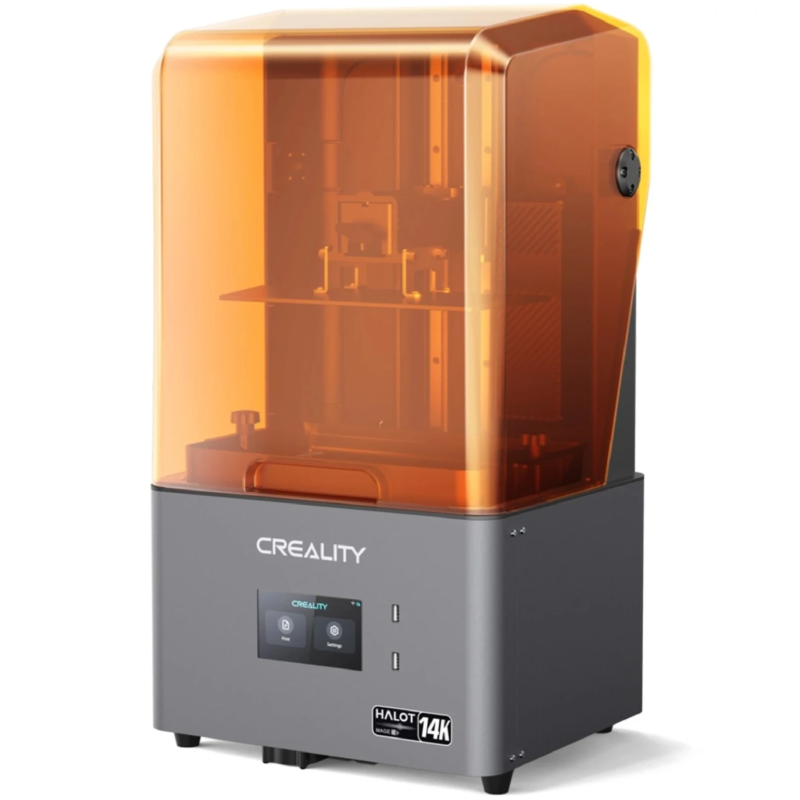

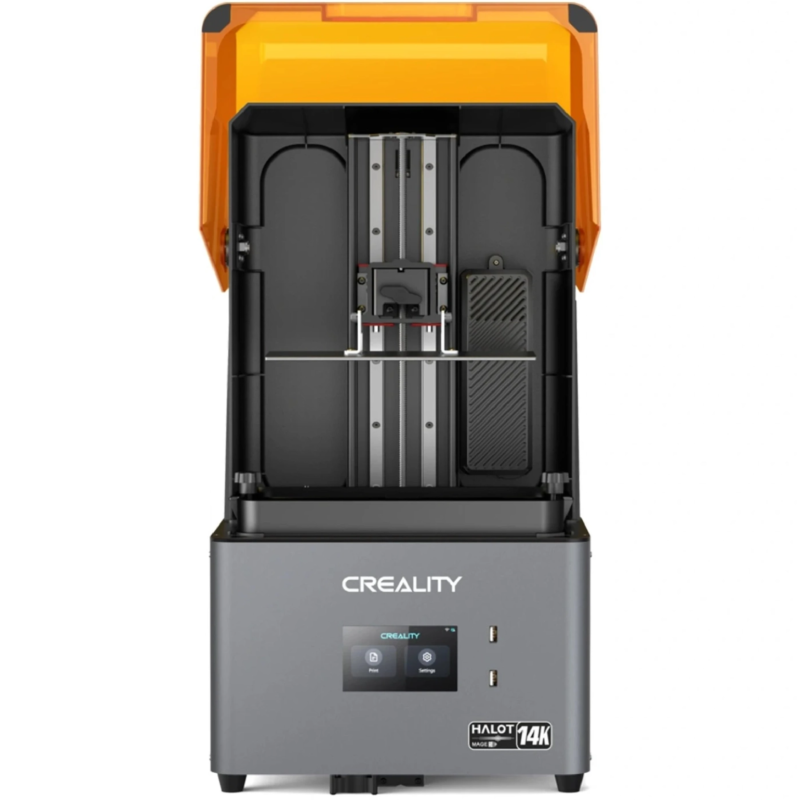

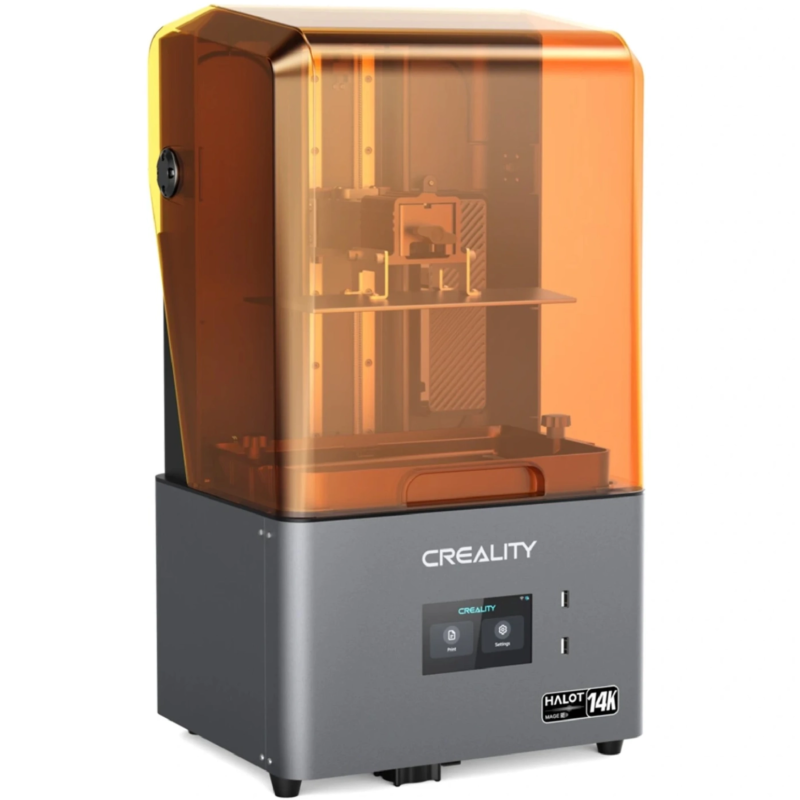

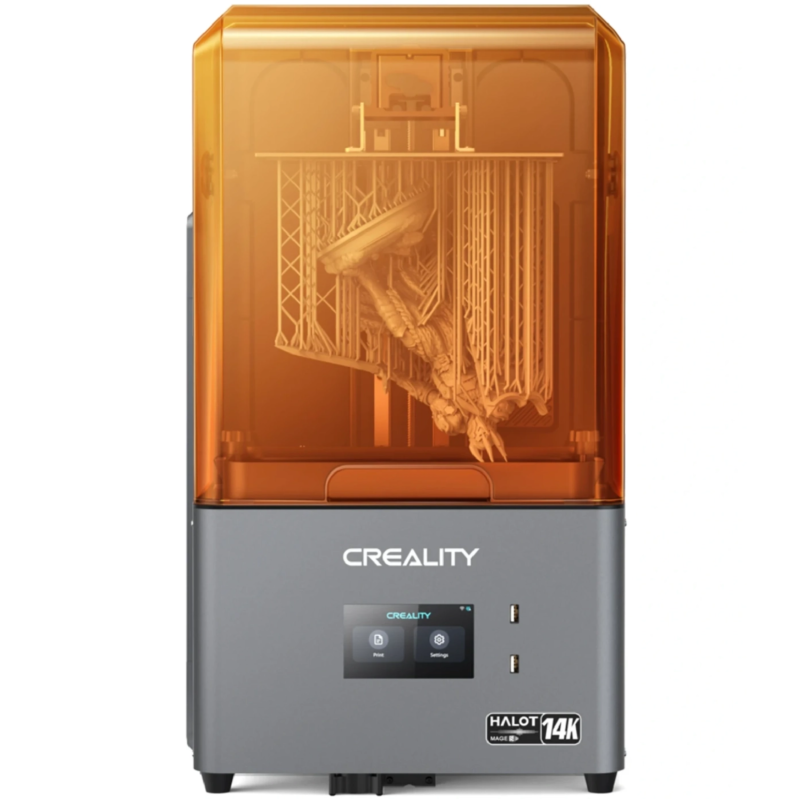

Creality Halot-Mage S 14K 3D Printer — Precision, Speed, and Smart Features

The Creality Halot-Mage S 14K is a compact and powerful MSLA 3D printer designed for home and professional applications requiring ultra-high detail. The model combines a 14K 10.1-inch monochrome LCD screen (13320 x 5120 px), a large build volume of 223 x 126 x 230 mm, and a Dynax/Dynax+ motion system that ensures a stable Z-axis and minimal vibrations during printing.

Advantages and Technologies

• 14K LCD screen (13320 x 5120 px) and 10.1" diagonal for ultra-fine reproduction of shapes and textures.
• Integrated light source 3.0 with uniformity up to 90% for stable quality across the entire platform area.
• Dimensional accuracy of 0.02–0.09 mm for sharp contours and smooth model surfaces.
• “Dynax” motion system and ultra-fast “Dynax+” mode: dual linear rails on the Z-axis, closed-loop motor (1300 Nm) for minimal vibrations, and print speed up to 150 mm/h; in Dynax+ mode, printing can accelerate 3–4 times (a 15 cm high model in approximately one hour).

Materials and Platform

• Unique “Pictor” film with a three-level structure reduces separation force by approximately 35%, making model removal easier and safer.
• The film transmits 92% of UV rays for more precise and detailed work; compatible with FEP films for standard printing modes.
• Laser-cut build plate made of CNC-machined aluminum alloy — high strength, durability, and a special surface texture for better adhesion and easy separation of printed parts.

Smart Features and Convenience

• Halot operating system with an intuitive interface for easy control, synchronization, and print monitoring from a computer, smartphone, or via Creality Cloud.
• Built-in air purifier with a carbon filter to neutralize resin odors; possibility to connect an exhaust hose for improved workspace ventilation.
• Optional automatic resin pump provides intelligent filling and draining, reducing splashes and mess during operation.
• Additional innovations: 2.25 times greater leveling force for table stability, “MageArch” cover for one-handed opening, quick-release build plate with a side tension button, and proprietary Halot Box slicer for optimizing print settings.

Creality Halot-Mage S 14K Specifications

SKU: HALOT-MAGE S 14K
Code: 00-00069219
Brand: Creality
Type: 3D Printer
Purpose: Home Use

Printing Technology: MSLA (Masked Stereolithography)
Enclosure Type: Closed
Print Material: 405nm Resin
Build Volume: 223x126x230 mm
Print Speed: 150 mm/h
Layer Thickness: 0.05-0.2 mm
XY Axis Resolution: 16.8x24.8µm
Light Intensity: 3500±10% µW/cm²

Number of Print Heads: None
Number of Hotends: None

Supported File Types: OBJ, STL
LCD Screen: Monochrome 10.1 inch
Resolution: 14K (13320x5120)

Interfaces: RJ-45, Wi-Fi, USB drive
OS Support: Windows, MacOS
Software: Voxeldance Tango, Chitubox, Halot Box
Additional Optional Features: Creality Cloud

Package Contents: 3D Printer, Manual, Packaging

Product Dimensions (without packaging), mm: 333x270x608
Weight (without packaging), kg: 13.13
Country of Origin: China
Warranty: 12 months

The Creality Halot-Mage S 14K is ideal for jewelry prototypes, dental models, highly detailed prototypes, and miniatures where every minute detail is critical. The combination of 14K resolution, a reliable platform, and smart solutions makes this printer an excellent choice for users seeking professional results in a compact device.
