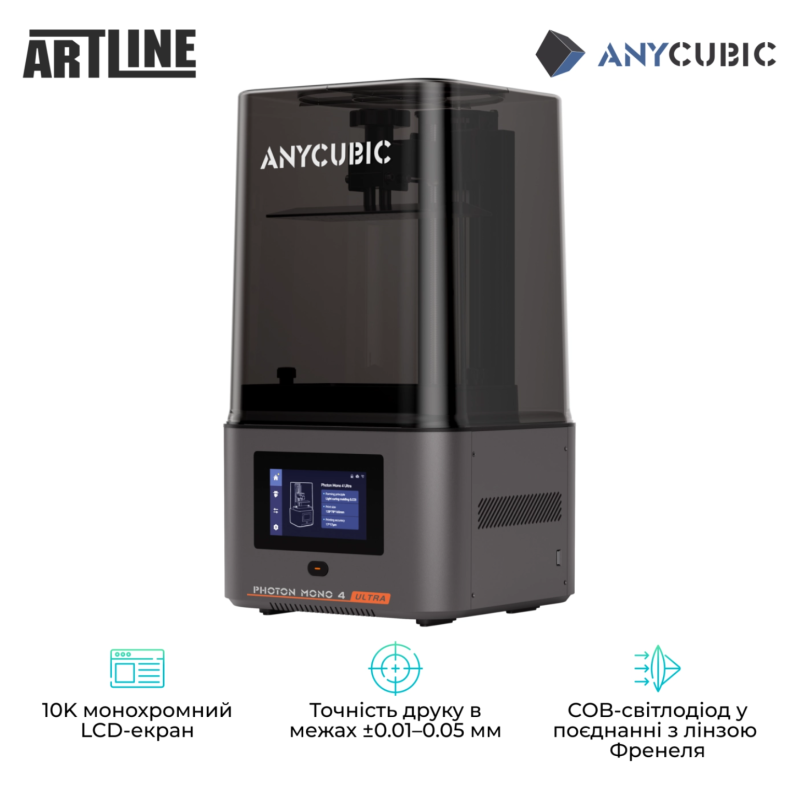

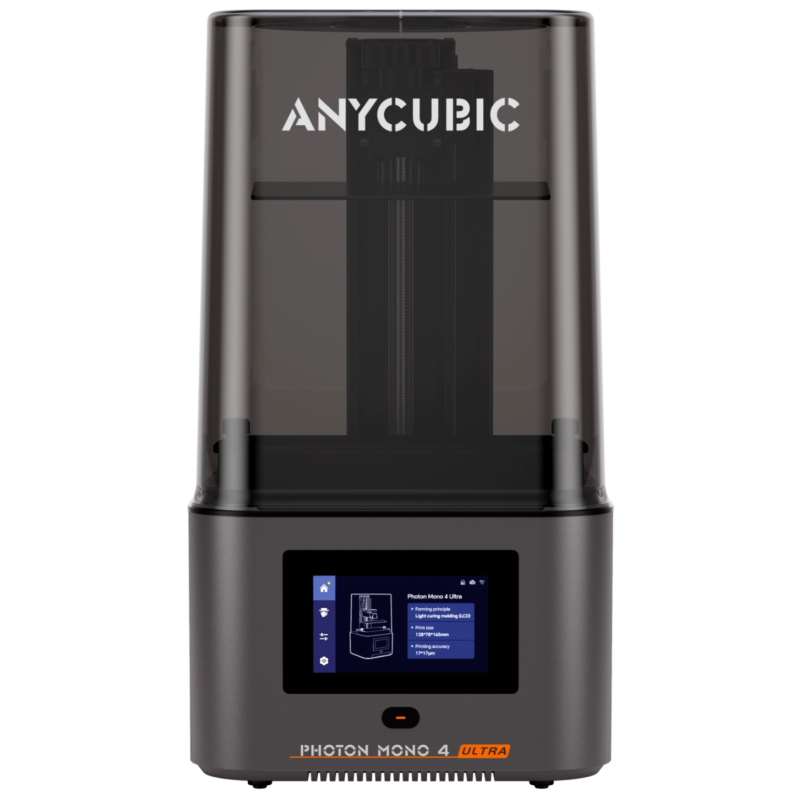

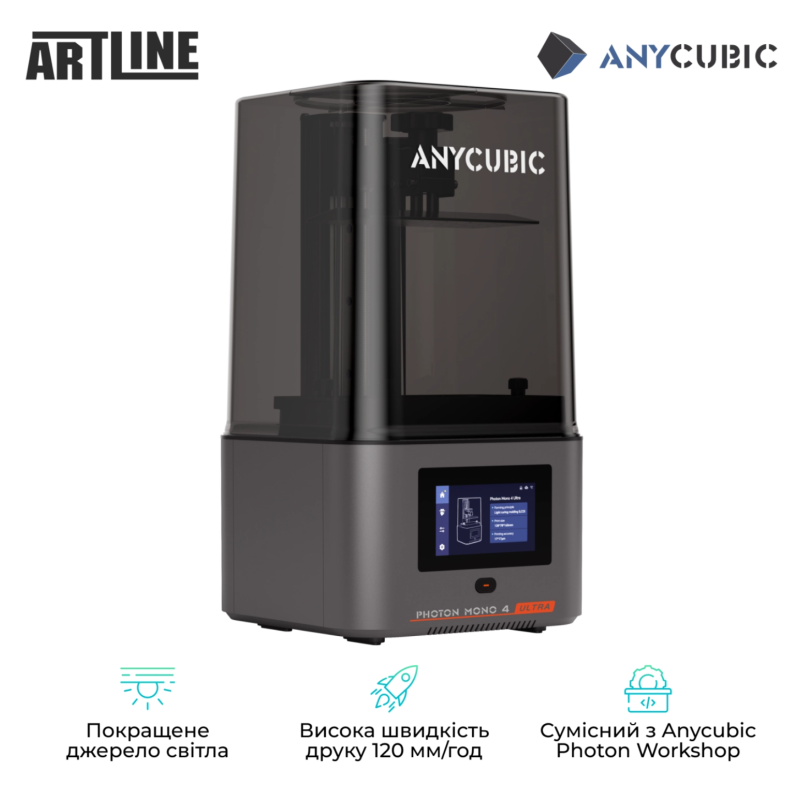

The Anycubic Photon Mono 4 Ultra 3D printer is a new generation photopolymer 3D printer designed for users who value microscopic precision and high print speed. The device combines advanced Anycubic brand technologies, providing ultra-high detail models for home use and small workshops. The Photon Mono 4 Ultra is ideal for miniatures, jewelry prototypes, decorative elements, and complex engineering parts.

Key Features

XY axis resolution: 17×17 microns, resulting in extremely clear and detailed models. Layer height is adjustable from 0.02 to 0.15 mm, allowing print quality to be tailored from rough prototyping to jewelry. Print accuracy is stated as ±0.01–0.05 mm in the description, with an additional value of ±0.1 mm provided in the specifications block.

Optical System and Lighting

The lighting system consists of a COB LED, a Fresnel lens, and a unique lighting intensity leveling algorithm, ensuring uniform exposure across the entire 153.4×87×165 mm build area and minimizing defects caused by uneven resin curing. Light intensity: 3500 ±10% μW/cm². This combination ensures stable and predictable print results even with fine detailing.

Speed and Performance

The Photon Mono 4 Ultra demonstrates high print speed: with standard resin, the practical indicator reaches about 80 mm/h, and with high-speed resin, up to 120 mm/h. The technical specifications also state a value of 120 mm/s (possible difference in units of measurement in sources). Thanks to a powerful optical system and optimized exposure algorithms, the printer combines speed and high detail.

Interface and Connectivity

The control interface is implemented via an intuitive 4.3-inch TFT touchscreen, simplifying print initiation, parameter settings, and process control. Model setup and platform preparation are facilitated by manual 4-point bed leveling. Connection and file transfer are possible via Wi-Fi, USB, and LAN (LAN is marked with Q4). Control from a stationary PC on a local network is also supported. The software is Windows-oriented.

Compatibility and Materials

The printer supports OBJ and STL file formats and works with resin as the primary printing material. Equipped with one print "head" (1). For model preparation and fine-tuning parameters, it is recommended to use the proprietary Photon Workshop software. This ensures a simple and controlled workflow from model to finished product.

Design, Build Area, and Dimensions

Enclosure type: closed. Build area: 153.4 x 87 x 165 mm. Device dimensions (unpackaged): 231 x 236 x 430 mm. Weight (unpackaged): 5 kg. Package size: 512 x 300 x 305 mm — convenient for transport and storage. Thanks to its compact dimensions and light weight, the printer is easy to place at home or on a workshop desk.

Package Contents

• Funnel
• Gloves
• Tool kit
• Anycubic Photon Mono 4 Ultra 3D printer
• Manual
• Packaging
• Print platform
• Resin vat
• USB drive

Identification Data and Warranty

Brand: Anycubic
Type: 3D printer
Purpose: Home use
SKU: PM4UBK0A-O
Code: 00-00080384
EAN: 6974662351043

Additional Information

Country of manufacture: China. Warranty: 12 months. The device is ideal for highly detailed models — from miniatures and jewelry prototypes to detailed decorative and engineering elements. The combination of innovative lighting solutions, a user-friendly touchscreen interface, and compatibility with common file formats and data networks makes the Anycubic Photon Mono 4 Ultra an optimal choice for professionals and 3D printing enthusiasts.

Key technical parameters in brief: build area 153.4×87×165 mm; light intensity 3500 ±10% μW/cm²; XY resolution 17×17 μm; layer height 0.02–0.15 mm; print speed practically up to 80 mm/h and up to 120 mm/h with special resin; compatible formats OBJ, STL; interfaces Wi-Fi, USB, LAN; 4.3" TFT touchscreen; Windows software support.
