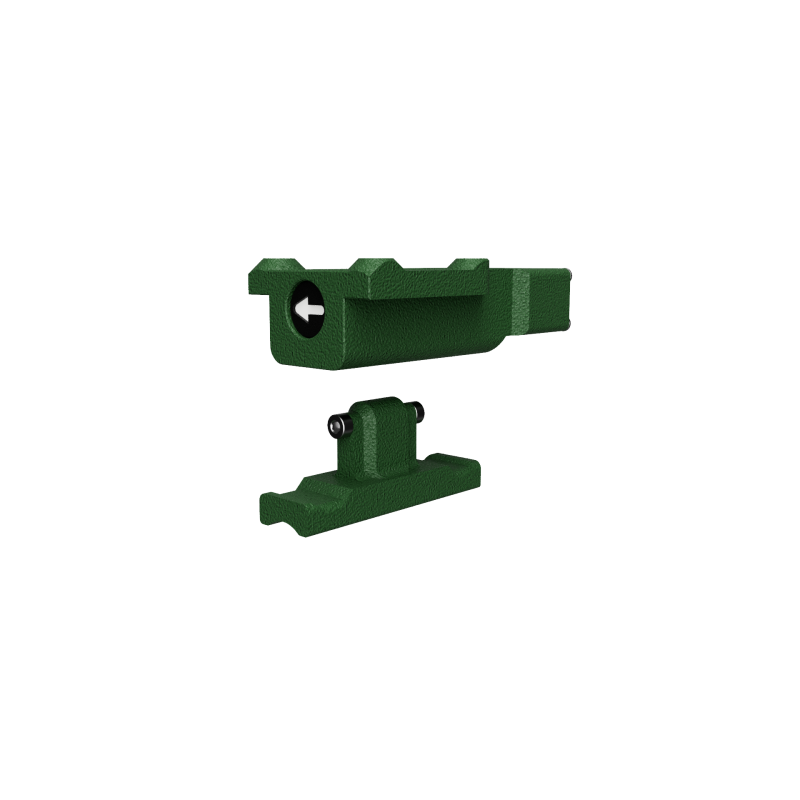

Drone Drop System 5kg WD-DS5 WarDrone

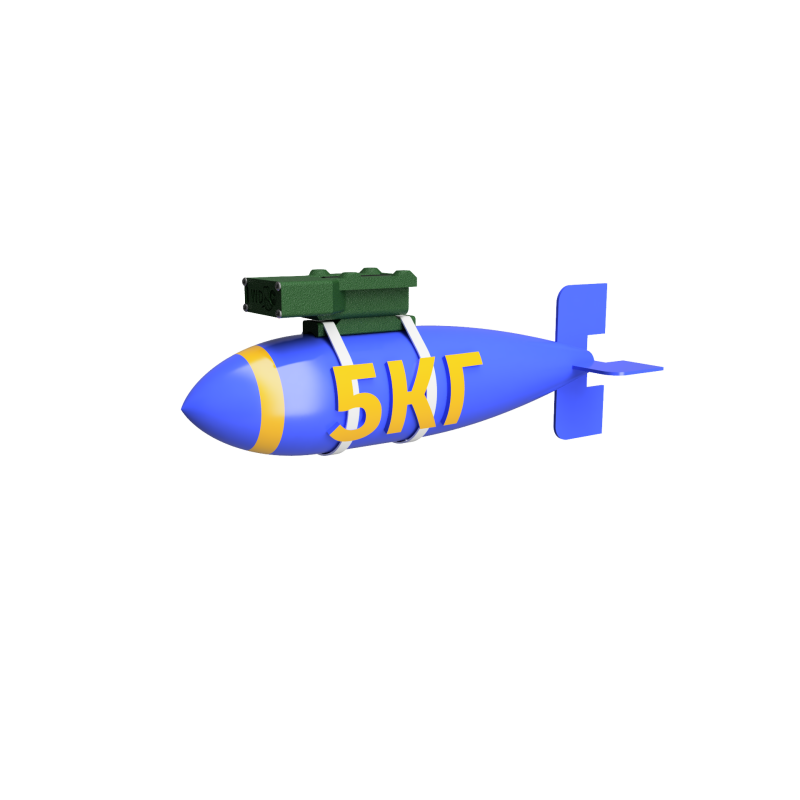

WD-DS5 is a universal quadcopter drop system from the WarDrone brand, designed for precise and reliable payload release during missions. This suspension (type: Suspension) is ideal for applications in the product category: Drones & Quadcopters > Frames and is compatible with a wide range of multi-copters that require a lightweight and robust method of detaching cargo at altitude. The minimum required weight for release is 1 kg, the nominal payload capacity is 5 kg, and the maximum supported suspended load is 10 kg. The reliable release mechanism operates in a voltage range from 4.8V to 6.3V, ensuring stable activation with typical copter power supplies.
The WD-DS5 design is made from a combination of metal and plastic, ensuring an optimal balance of strength and weight. The thoughtful design prevents the suspension from jamming, so release occurs without delays even in flight conditions with vibration or side loads. The drop system is supplied in new condition and is ready for installation on your drone's frame.
Advantages and Applications
- Precise payload release from 1 kg to 10 kg.
- Operates in the standard voltage range of 4.8–6.3V, compatible with most flight platform controllers.
- Jamming-prevention working mechanics increase operational reliability.
- Materials: metal for strength, plastic for weight reduction.
- Suitable for commercial tasks, rescue operations, agricultural, and amateur applications.
Installation and operation are simple: place the suspension on the copter frame according to the manufacturer's instructions, connect power in the 4.8–6.3V range, and check activation with a minimum load of 1 kg. Thanks to the design solutions, the mechanism is guaranteed to open at the planned moment and eliminates the possibility of jamming during release. It is recommended to check mounting compatibility with the frame model before installation.
| Main | |
|---|---|
| Country of origin | Ukraine |
| Type | Suspension |
| Material | Metal, Plastic |
| Condition | New |
| Maximum payload capacity | 10 kg |
| Nominal payload capacity | 5 kg |
The WD-DS5 from WarDrone is an optimal solution for those seeking a reliable drop system with clearly defined payload and power parameters. If you need a suspension that combines ease of installation, reliable mechanics, and quality materials — this device handles tasks of varying complexity.
