*** Minimum order - 3000 UAH! Ships from a remote warehouse. Shipping times 2-5 days.

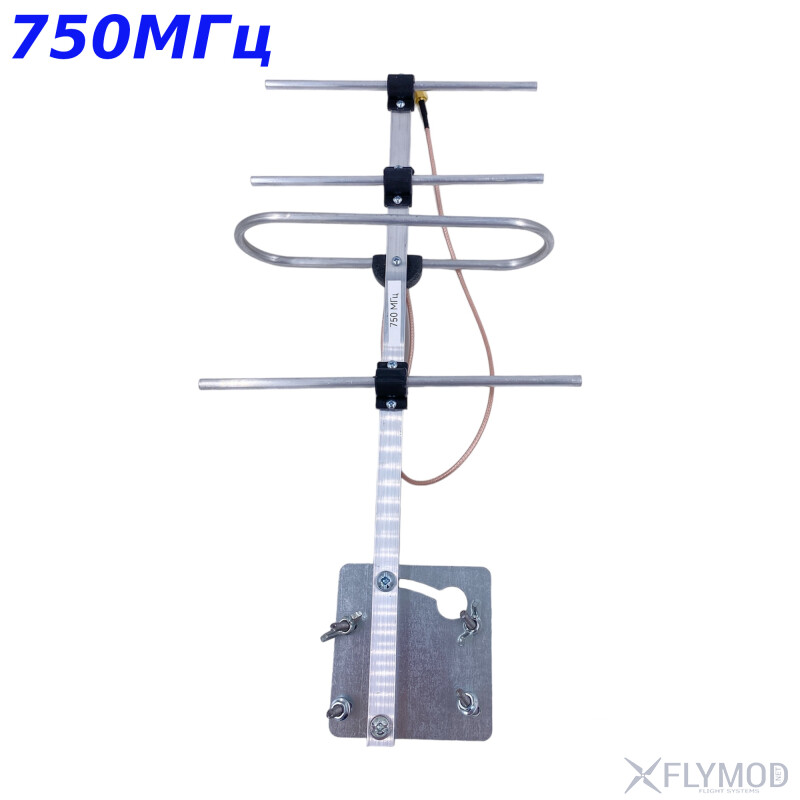

The Yagi directional antenna is available in 433/735/750/915/960 MHz frequencies with 8.6dBi gain. A beam angle of 40° and SWR of 1.1 ensures a stable signal and minimizes losses. Aluminum provides lightness, strength, and corrosion resistance. It is used with ground-based radio stations and can be mounted on a tripod or mast. Suitable for various types of repeaters.

Features

• Antenna gain 8.6dBi
• Operating frequencies 433/735/750/915/960MHz
• Mounting allows the antenna to be placed on a tripod pole and adjust the tilt angle
• Small size allows the antenna to be used on airborne UAVs as a repeater

Specifications

• Frequency: 433/735/750/915/960MHz
• Polarization: linear
• Gain: 8.6dBi
• Beam angle: 40°
• Input impedance: 50 Ω
• SWR: 1.1
• Number of directors: 2
• Connection cable length:
  • 433MHz - 475mm
  • 500MHz - 410mm
  • 735MHz - 420mm
  • 750MHz - 410mm
  • 915MHz - 450mm
  • 960MHz - 430mm
• Connector: SMA
• Material: aluminum
• Size:
  • 433MHz - 497x342x60mm
  • 500MHz - 450x295x55mm
  • 735MHz - 370x205x60mm
  • 750MHz - 370x198x60mm
  • 915MHz - 300x163x60mm
  • 960MHz - 305x155x60mm
• Weight:
  • 433MHz - 249g
  • 500MHz - 235g
  • 735MHz - 194g
  • 750MHz - 191g
  • 915MHz - 177g
  • 960MHz - 174g

Package contents

• 1 x mini Yagi directional antenna

SWR graph 750Mhz Yagi mini
