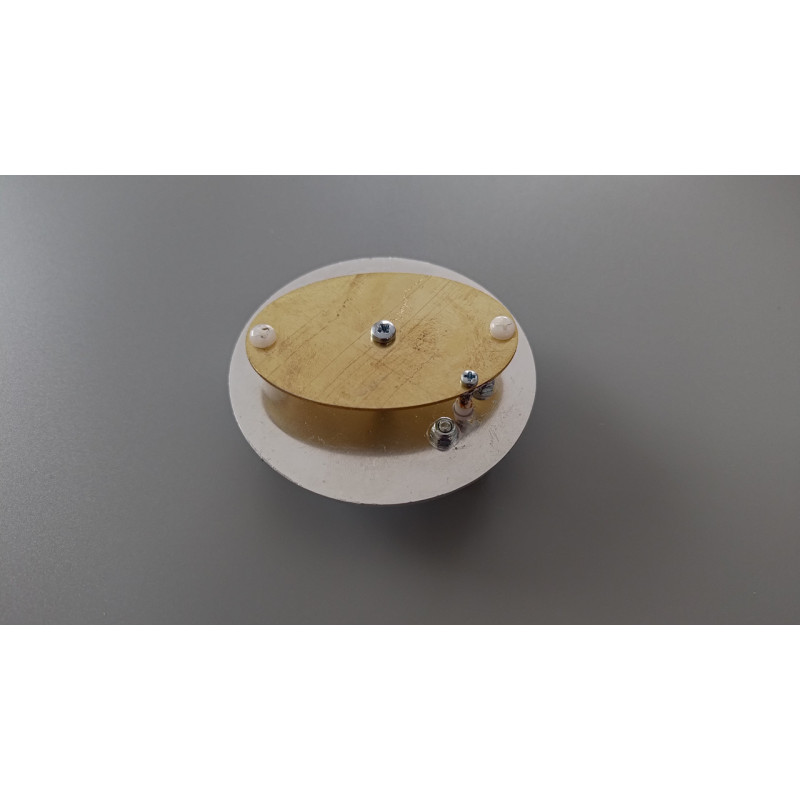

Aeronetix EW Patch Antenna 2380-2550 MHz (2.4 GHz) 100W — a compact and reliable patch antenna from Aeronetix, designed for operation in the 2380-2550 MHz (2.4 GHz) range. The model combines increased input power up to 100W, optimized gain of 7 dBi, and a directional pattern with a 65° beamwidth, making it an effective solution for radio communication, remote data transmission, video signal transmission, and specialized electronic warfare (EW) applications.
Key Features
- Frequency Range: 2380-2550 MHz (2.4 GHz)
- Gain: 7 dBi
- Beamwidth: 65 degrees
- Dimensions (in description): 75x20 mm
- Input Power: 100 W
- Connector: N-type
- Weight (in description): 150 g
Description and Purpose

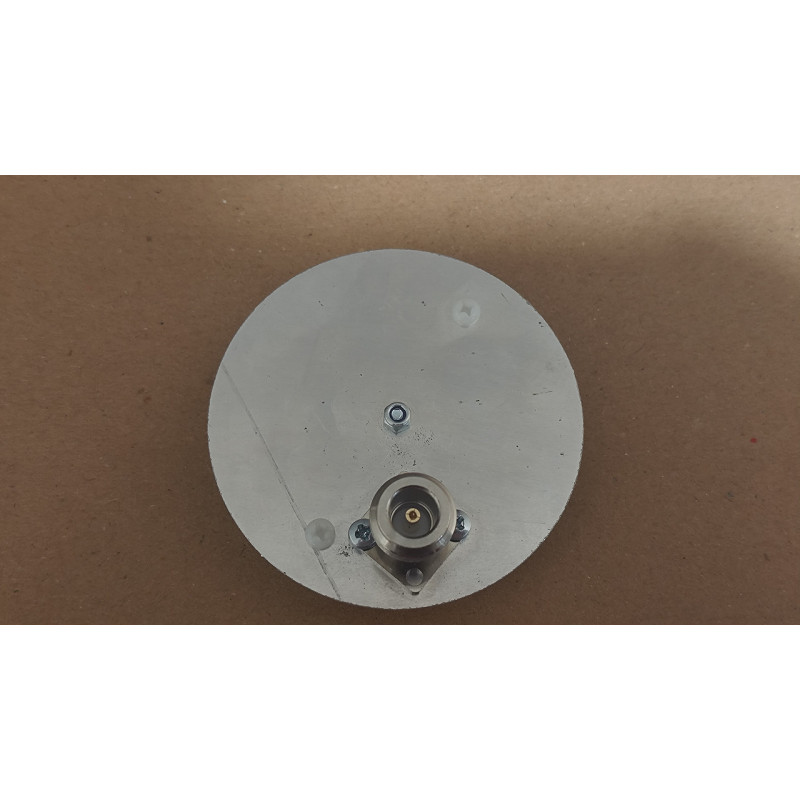

The Aeronetix patch antenna provides a directional signal with a moderate beamwidth, simplifying the setup of a directional communication channel and increasing link stability over medium distances. Its compact dimensions and low weight allow the antenna to be integrated into various mounting solutions: from stationary brackets to mobile platforms. The professional N-type connector ensures reliable connection of coaxial cables and convenient cable replacement when needed.
Recommended applications: communication systems, wireless data transmission channels, real-time video transmission, industrial communication solutions, and special EW technical tasks where a combination of compactness, power, and signal directionality is required.
Detailed Technical Parameters and Measurements
For accurate planning of installation and engineering work, a complete list of technical parameters and measurements specified in the documentation and product attributes is provided below. Please note that some units of measurement are given in both grams/kilograms and millimeters.
Technical Parameters
| Parameter | Value |
|---|---|
| Brand | Aeronetix |
| Frequency Range | 2380-2550 MHz (2.4 GHz) |
| Gain | 7 dBi |
| Beamwidth | 65° |
| Dimensions (from description) | 75x20 mm |
| Length (attribute) | 7.0 |
| Width (attribute) | 7.0 |
| Height (attribute) | 3.0 |
| Weight (in description) | 150 g |
| Weight (attribute) | 0.200 kg |
| Input Power | 100 W |
| Connector | N-type |
The length, width, and height values provided in the attributes help to plan installation more accurately in confined spaces. It is recommended to consider both weight values (150 g from the description and 0.200 kg in the attribute) when calculating the load on brackets and structures. The antenna features simple mechanical integration and compatibility with professional coaxial cables thanks to its N-type connector.
If additional information is needed regarding compatibility with specific cables, installation recommendations, or certification, please contact the seller or refer to the manufacturer's technical documentation for Aeronetix. This model is suitable for projects requiring a combination of compactness, power, and signal directionality.
Product Category: Antennas > Patch Antennas.
