Product Code: FA38-EVG077-38
In Stock
3 080 грн.
Buy this product in 1 click:
Main specifications
Connector type:
SMA / RP-SMA / N-type
Material:
copper / brass
Polarization:
circular RHCP
Weight (depends on size):
80–150 g
Frequency range:
6.0–7.5 GHz
All specifications
We will deliver this product:
Payment
Description

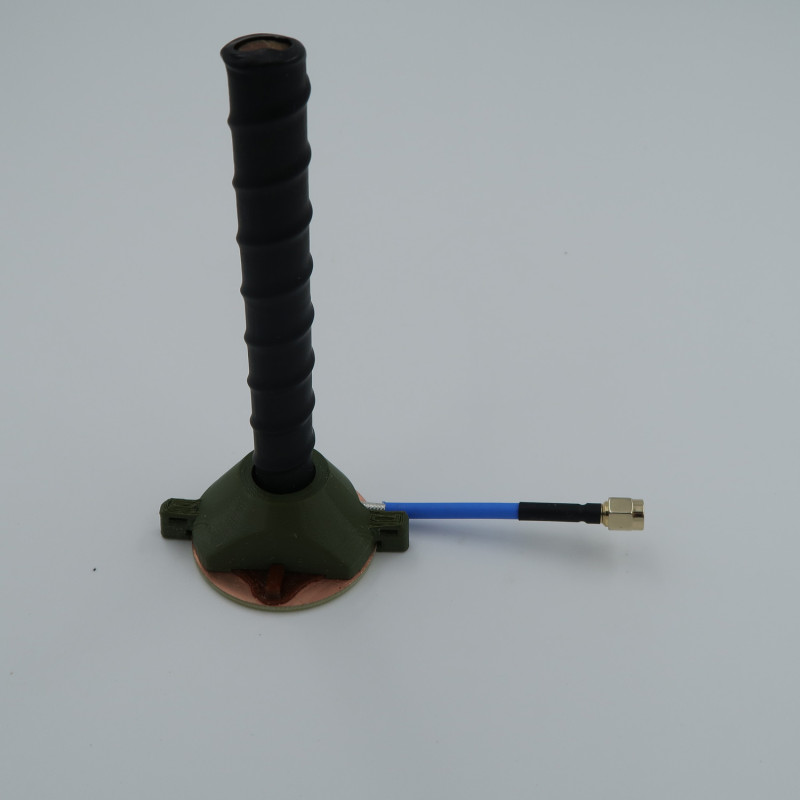

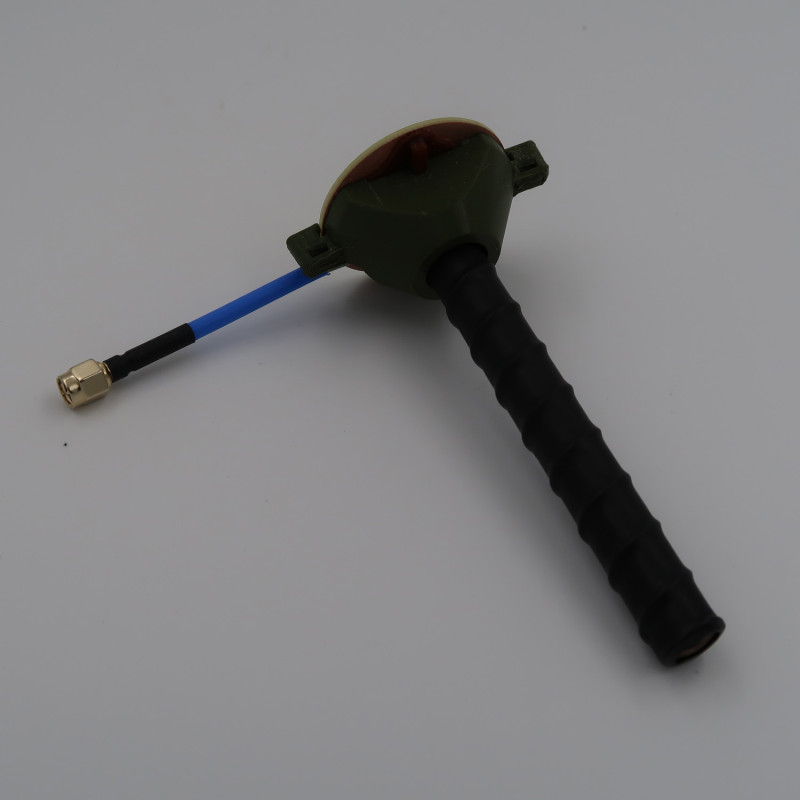

Helical Antenna 6.0–7.5 GHz RHCP, 6 cm (18 turns)
A compact directional Helical antenna with right-hand circular polarization (RHCP), designed for operation in the 6.0–7.5 GHz range. With 18 turns, it provides high gain in a reduced size, making it convenient for integration into portable and mobile communication systems.
Key Features
- Antenna type: Helical
- Polarization: RHCP (Right-Hand Circular)
- Frequency range: 6.0 – 7.5 GHz
- Number of turns: 18
- Antenna length: ~6 cm
- Gain: 14–18 dBi
- Beamwidth: ~30–50°
- Impedance: 50 Ohm

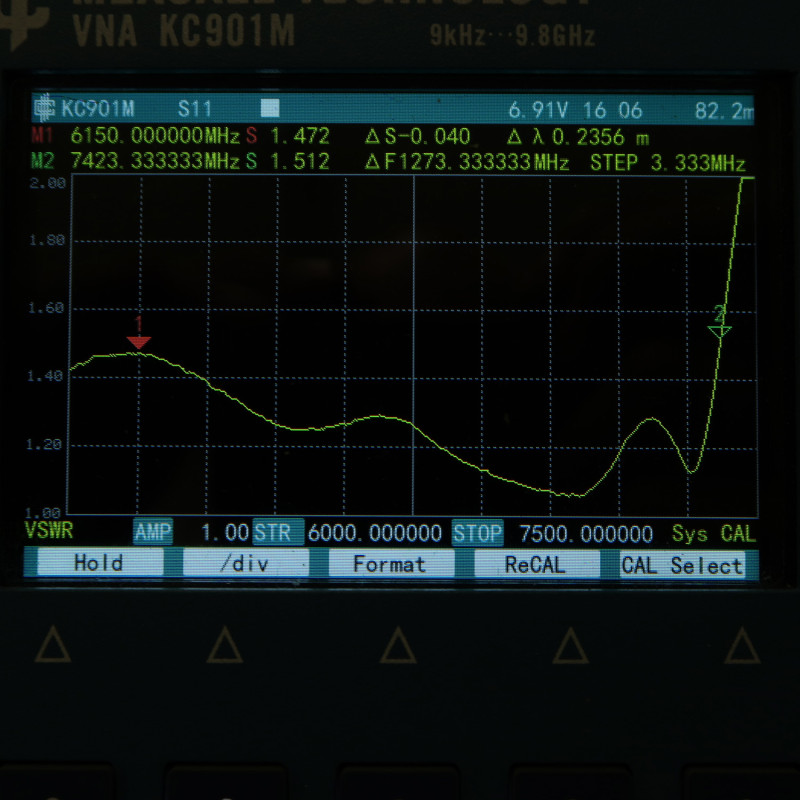

- SWR: ≤ 1.5–2.0
Construction and Materials
- Radiator material: copper / brass
- Reflector: metal (aluminum or metallized FR4)
- Housing: open or in protective casing
- Connector type: SMA / RP-SMA / N-type
- Weight: ~80–150 g
Specifications
Connector type
SMA / RP-SMA / N-type
Material
copper / brass
Polarization
circular RHCP
Weight (depends on size)
80–150 g
Size
6 cm
Antennas
Frequency range
6.0–7.5 GHz
Beam angle
30–50°
Enhancements
14–18 dBi
