Product Code: FA103-16620-103
In Stock
262 грн.
This product has a minimum quantity of 12
Buy this product in 1 click:
Main specifications
Connector type:
SMA / RP‑SMA
Material:
copper foil PCBs + metal rod
Polarization:
circular
Frequency range:
5.55–6.05 GHz
Beam angle:
360° (Omnidirectional)
All specifications
We will deliver this product:
Payment
Description
*** Minimum order - 3000 UAH! Ships from a remote warehouse. Shipping time 2-5 days.

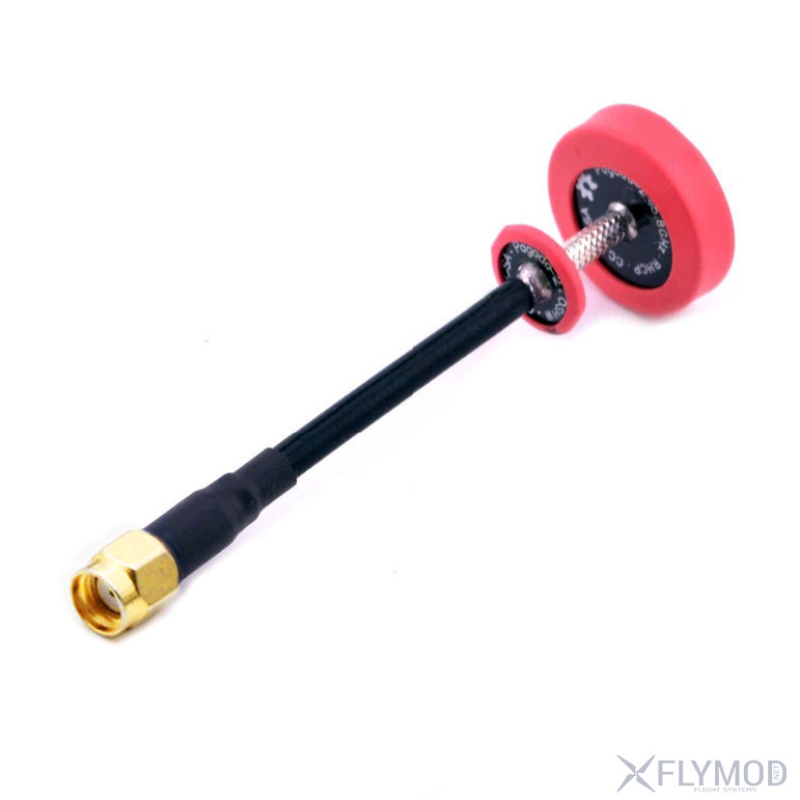

Pagoda-2 5.8G omnidirectional circularly polarized antennas, designed by Maarten Baert. The antenna structure consists of 3-layer PCBs covered with 1 oz copper foil, and the metal core rod material is optimized to achieve very low VSWR.
In this version of the antennas, the PCBs are wrapped in heat shrink to protect against damage.
Please note! Antenna color may vary depending on the batch!
Specifications
- Center frequency: 5.8G
- Bandwidth: 500MHz (5.55-6.05GHz)
- Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
- Axial ratio:
Specifications
Connector type
SMA / RP‑SMA
Material
copper foil PCBs + metal rod
Polarization
circular
Size
50mm x 80mm
Antennas
Frequency range
5.55–6.05 GHz
Beam angle
360° (Omnidirectional)
Enhancements
2 dBi
