Product Code: FA93-4849034-93
In Stock
650 грн.
Buy this product in 1 click:
Main specifications
Connector type:
BNC + Motorola Bolt Adapter
Housing type:
external, Flower Pot design
Material:
coaxial cable + polymer insulation
Polarization:
vertical
Weight (depends on size):
300 g
All specifications
We will deliver this product:
Payment
Description

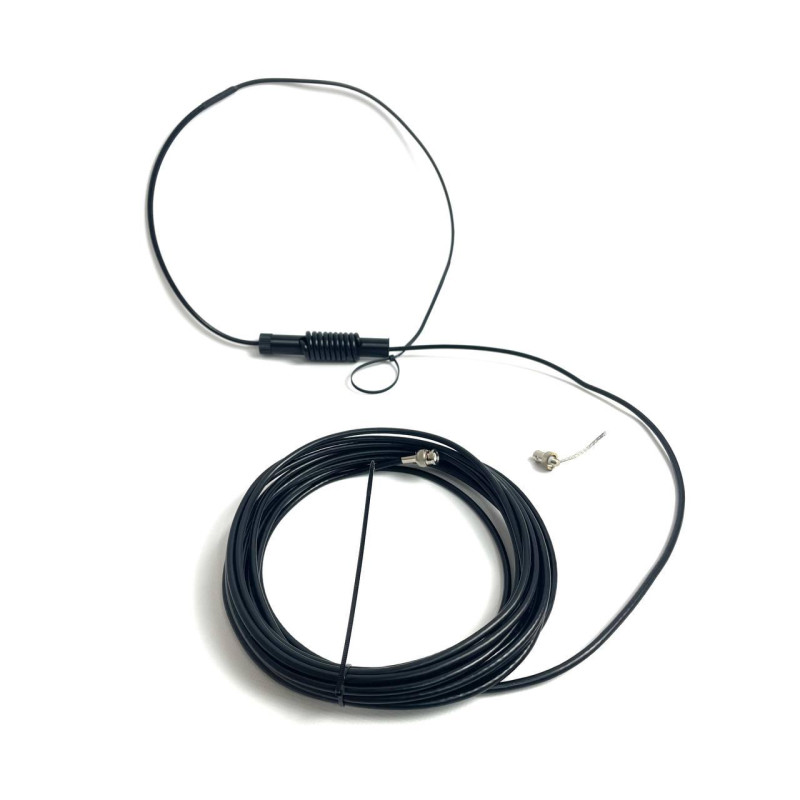

External VHF Flower Pot Antenna 136–174 MHz for Motorola Two-Way Radios (BNC + Motorola Bolt)
Enhance radio communication in field and urban conditions!
The flexible Flower Pot antenna provides excellent reception and transmission parameters in the VHF band (136–174 MHz).
Compatibility
BNC connector + Motorola Bolt adapter for Motorola two-way radios:
• Motorola R7 / R7A
• DM4400 / DM4401
• DM4600 / DM4601
• DM4800 / DM4801
• DP4800 / DP4400/ DP4600 / DP4401, etc.
• and other models with a similar connector
Specifications
Parameter Value
Type External antenna
Frequency range 136–174 MHz
Standard VHF
Communication range up to 10–12 km (depends on terrain)
Design Flower Pot
Connector BNC + Motorola Bolt adapter
Cable included 5 m
Frequency tuning Possible correction by turns at the end
Flexible tuning to your frequency
The antenna is assembled and initially tuned to ≈155 MHz (145–165 MHz at SWR ≤ 2).
• Bend the end by ~3 cm → frequency ↑ by ~5 MHz
• Unbend the turns → frequency ↓
This allows optimizing operation for a specific channel and achieving maximum communication range.
Advantages
High efficiency and stable operation
Flexible and lightweight for transport
Can be suspended at height — trees, buildings, towers

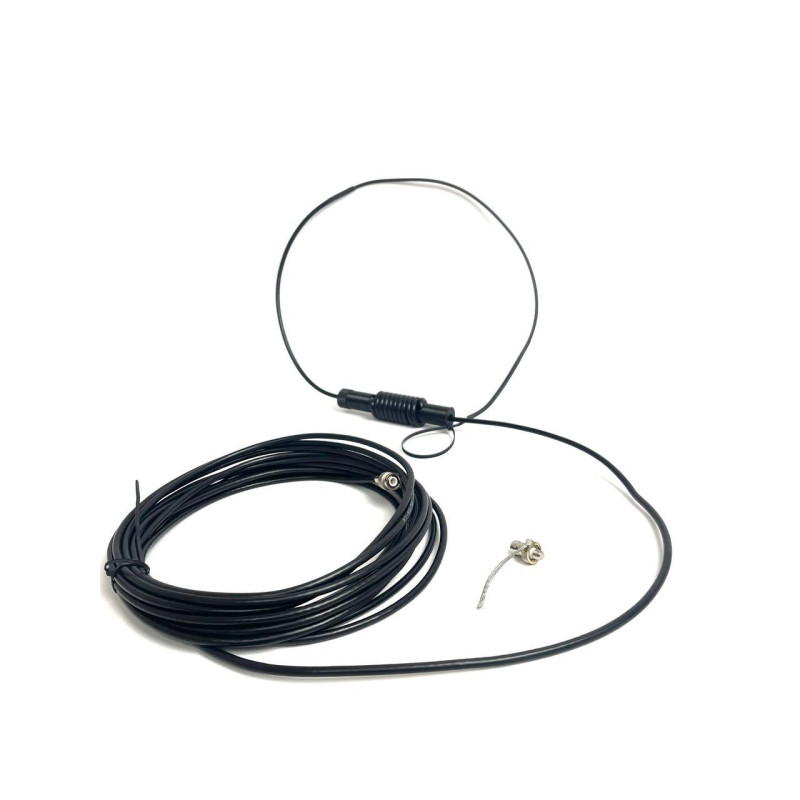

Included:
• Flower Pot antenna
• 5 m coaxial cable

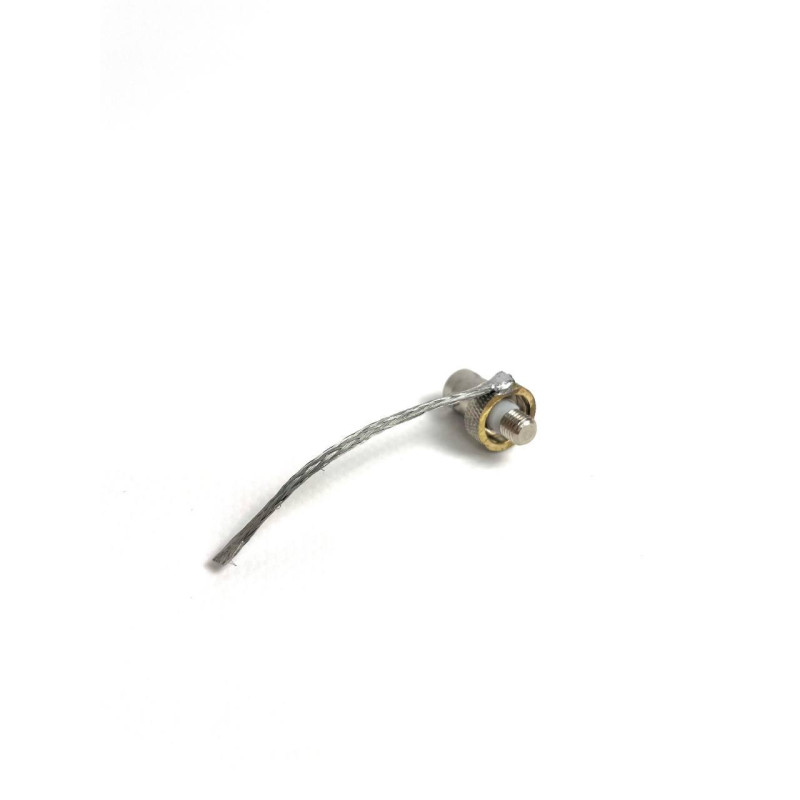

• Motorola Bolt adapter
Enhance radio communication in field and urban conditions!
The flexible Flower Pot antenna provides excellent reception and transmission parameters in the VHF band (136–174 MHz).
Compatibility
BNC connector + Motorola Bolt adapter for Motorola two-way radios:
• Motorola R7 / R7A
• DM4400 / DM4401
• DM4600 / DM4601
• DM4800 / DM4801
• DP4800 / DP4400/ DP4600 / DP4401, etc.
• and other models with a similar connector
Specifications
Parameter Value
Type External antenna
Frequency range 136–174 MHz
Standard VHF
Communication range up to 10–12 km (depends on terrain)
Design Flower Pot
Connector BNC + Motorola Bolt adapter
Cable included 5 m
Frequency tuning Possible correction by turns at the end
Flexible tuning to your frequency
The antenna is assembled and initially tuned to ≈155 MHz (145–165 MHz at SWR ≤ 2).
• Bend the end by ~3 cm → frequency ↑ by ~5 MHz
• Unbend the turns → frequency ↓
This allows optimizing operation for a specific channel and achieving maximum communication range.
Advantages
High efficiency and stable operation
Flexible and lightweight for transport
Can be suspended at height — trees, buildings, towers
Included:
• Flower Pot antenna
• 5 m coaxial cable
• Motorola Bolt adapter
Specifications
Connector type
BNC + Motorola Bolt Adapter
Housing type
external, Flower Pot design
Material
coaxial cable + polymer insulation
Polarization
vertical
Weight (depends on size)
300 g
Antennas
Frequency range
136–174 MHz
Beam angle
360° (Omnidirectional)
Enhancements
2–3 dBi
