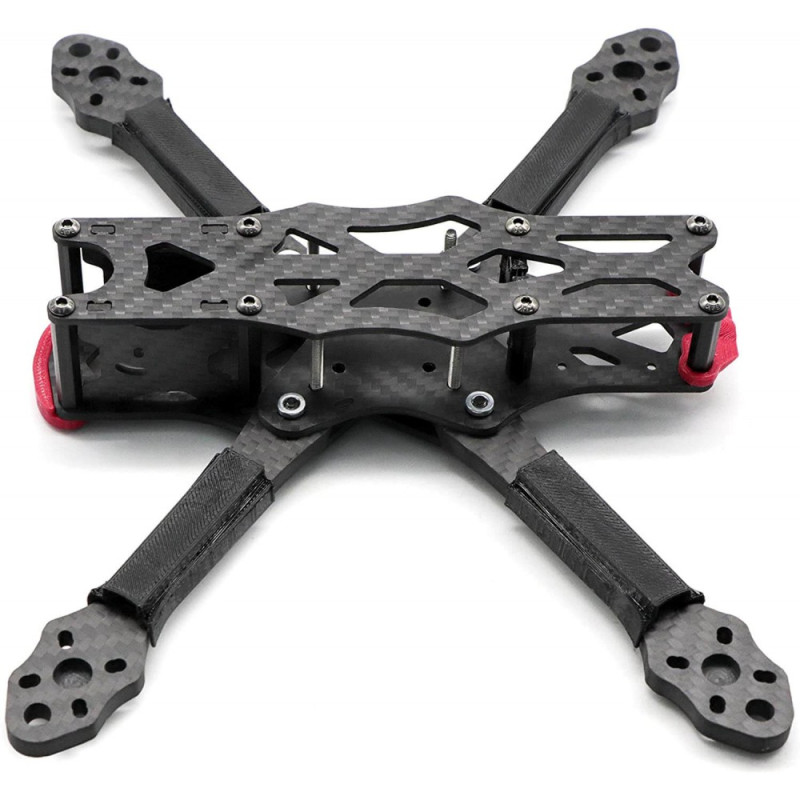

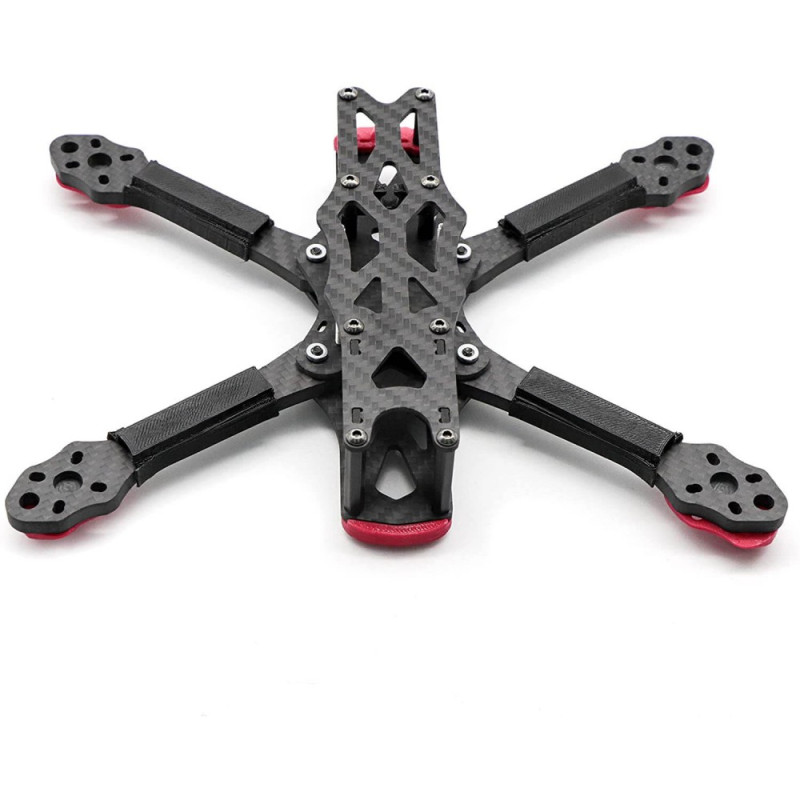

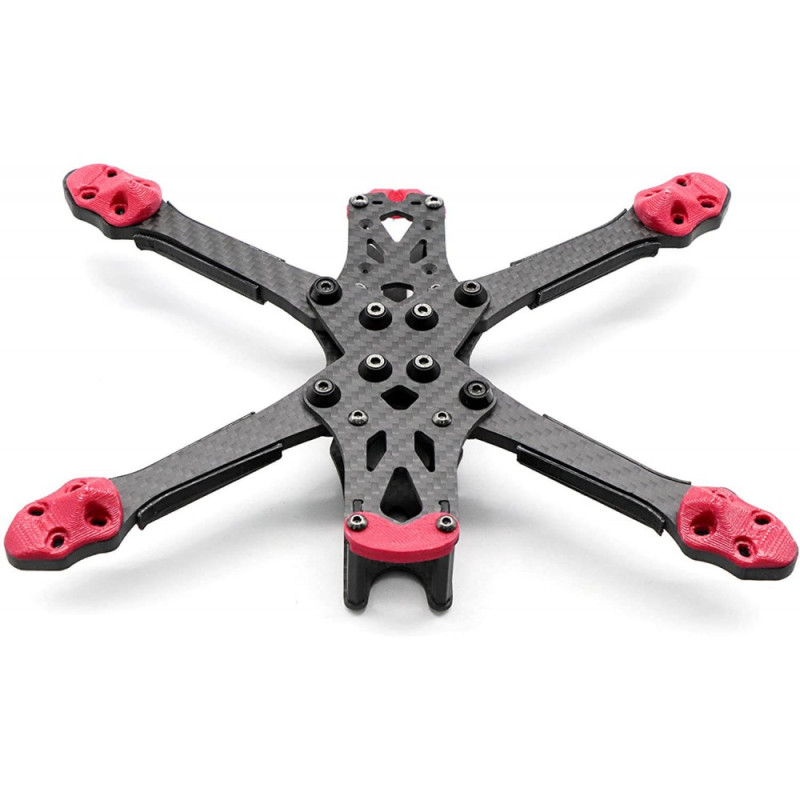

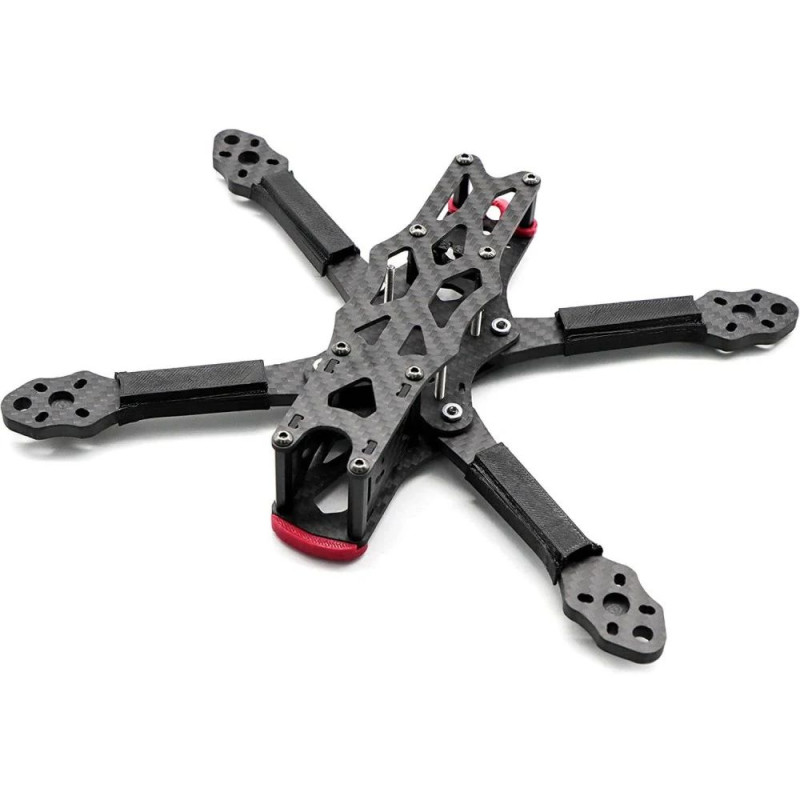

Readytosky APEX-5 HD 225mm Carbon Fiber Frame

Brand: APEX. Product type: Drones & Quadcopters > Frames. This lightweight and durable frame is designed for FPV enthusiasts who value structural rigidity and minimal weight. The name indicates 225mm, however, the frame's diagonal in the specification is 220mm — please note both values when selecting components.

Description and Features

The Readytosky APEX-5 HD is made of high-quality carbon fiber and designed for quick component installation and durable flights. The design combines thin arms for reduced mass and reinforced plates for secure mounting of the flight controller and video equipment. The frame is well-suited for HD cameras and video transmission systems due to its thoughtful arrangement of mounting holes and optimal geometry.

Specifications

• Frame diagonal: 220 mm (225mm indicated in the name)
• Arm thickness: 4.5 mm
• Bottom plate: 2 mm
• Top plate: 2.5 mm
• Material: carbon fiber
• Mounting holes: 30.5 x 30.5 mm
• Weight: 115 g

Package Contents

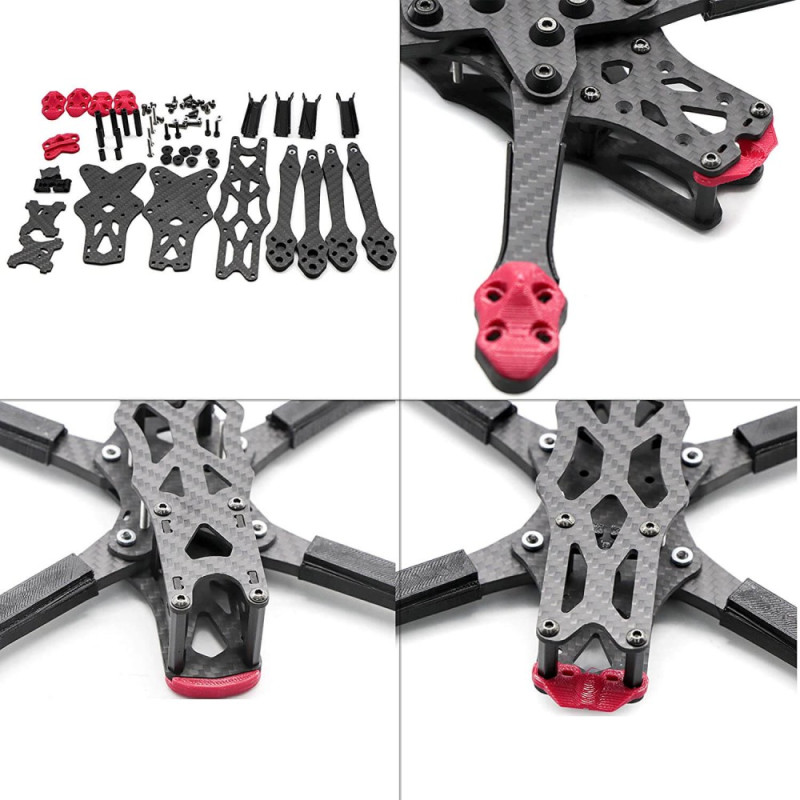

• Frame assembly parts – 1 set. The set includes all necessary parts for assembling the frame's structural components (without electronics, motors, and propellers). The frame is supplied without an SKU in the product description.

Advantages and Compatibility

Thanks to its carbon fiber construction, the APEX-5 HD frame combines rigidity and lightness, ensuring flight stability and durability during aggressive maneuvers. The 30.5 x 30.5 mm mounting holes make it compatible with a large number of modern flight controllers and mounting kits. Its low weight of 115 g contributes to better maneuverability and reduced load on the propulsion system.

This frame is ideal for building a medium-sized FPV drone with HD equipment, where both strength and weight are important. If you are selecting components, pay attention to the propeller diameter and the distances between motor mounts to ensure compatibility with the 220 mm diagonal.

Information from the original product description and parameters is preserved: product name, APEX brand, product type "Drones & Quadcopters > Frames", technical parameters (diagonal 220 mm, arm thickness 4.5 mm, bottom plate 2 mm, top plate 2.5 mm, carbon fiber material, mounting holes 30.5 x 30.5 mm, weight 115 g) and package contents (frame assembly parts – 1 set).
