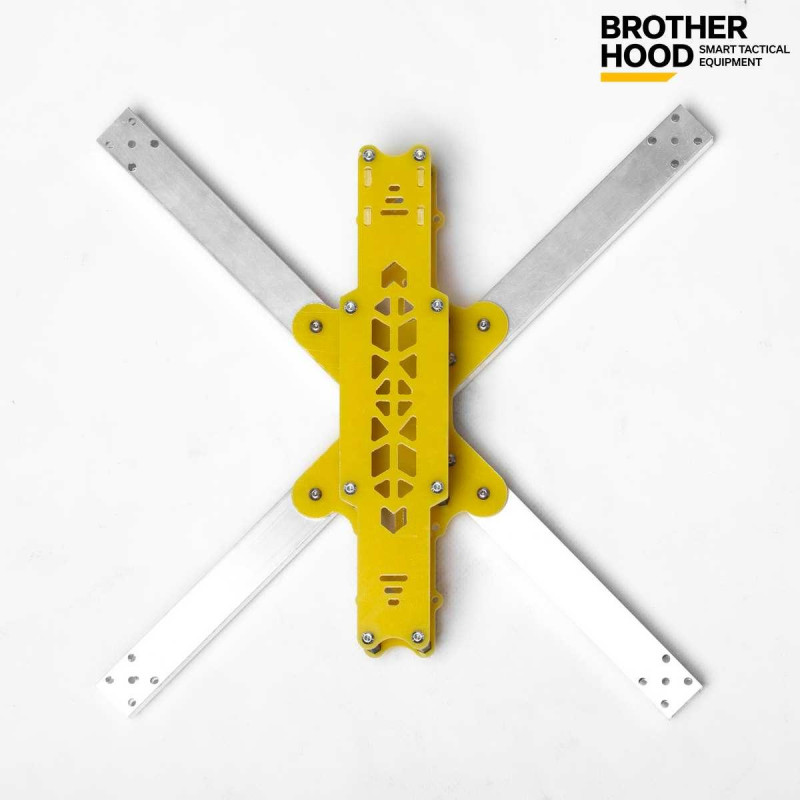

Brotherhood 7" Drone Frame made of Fiberglass Laminate and Aluminum
The drone frame from Brother Hood combines lightness, enhanced strength, and versatility for various applications. The structure is made of aluminum alloy for the arms and STEF-1 fiberglass laminate for the body, ensuring high resistance to mechanical stress and environmental factors. The model is optimized for 7-inch propellers, suitable for racing drones as well as video or industrial platforms where rigidity and precise mounting points are crucial.
Key Features
- Country of origin: Ukraine
- Type: Frames, arms, dampers
- Configuration: Assembled frame (also available disassembled)
- Video camera: mountable
- Body color: yellow
- Brand: Brother Hood

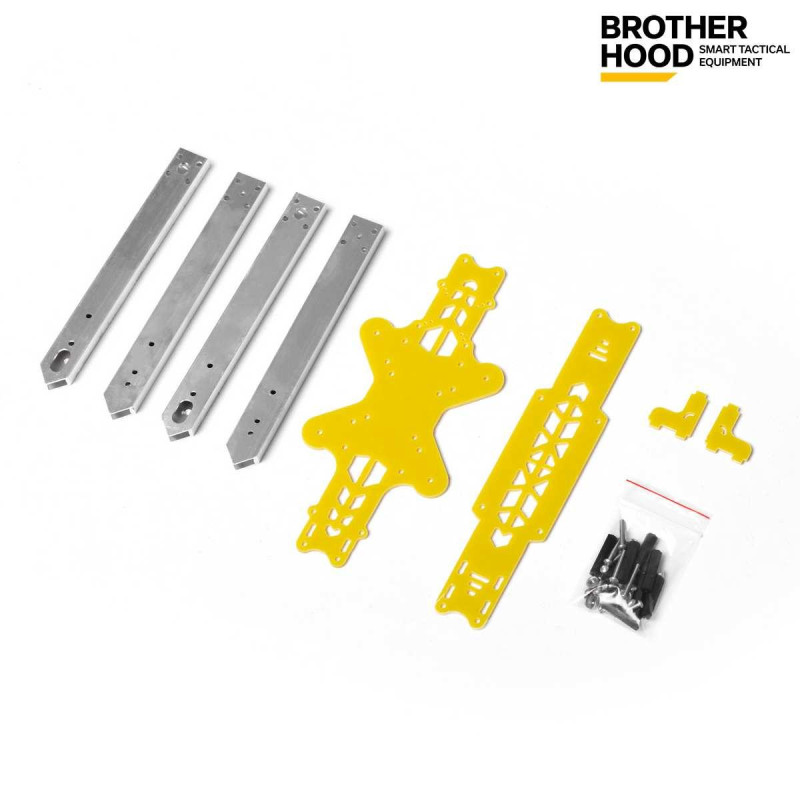

The frame is offered in two configuration options: assembled frame and disassembled frame. In both options, all parts and hardware are included in the price. An additional service — custom frame painting — is available. Please note that the prices listed are excluding VAT.
Technical Specifications
| Parameter | Value |
|---|---|
| Assembled frame weight | 256 g |
| Fiberglass laminate weight | 92 g |
| Arm weight | 142 g |
| Size with arms (mm) | 259x259x41 |
| Size without arms (mm) | 209x91x31 |
| Distance between motor centers (mm) | 227 |
| Motor mounting size (mm) | 19 |
| Camera mounting size (mm) | 19 |
| Arm (aluminum profile), wall (mm) | 10x20x172 / 1.5 |
| Bottom plate (fiberglass laminate) (mm) | 209x91x3 |
| Top plate (fiberglass laminate) (mm) | 209x45x3 |
| Camera bracket (fiberglass laminate) (mm) | 31x26x3 |
| Additional plate (fiberglass laminate) (mm) | none |
| Perimeter according to arms | Perimeter size 250/250 mm |
| Material | Aluminum alloy and STEF-1 fiberglass laminate |

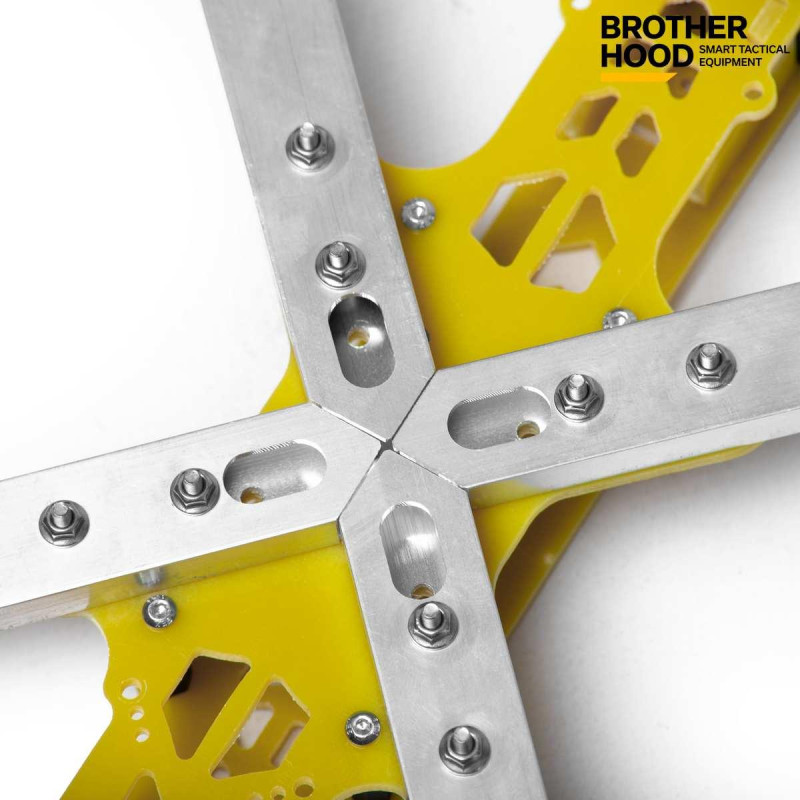

The frame features a well-thought-out geometry and standardized mounting points for motors and cameras (19 mm), significantly simplifying assembly and future upgrades. Aluminum arms ensure structural rigidity with minimal weight, while fiberglass laminate top and bottom plates protect electronics and allow for easy component replacement during service. The arm parameters of 10x20x172 / 1.5 mm provide an optimal combination of rigidity and weight for 7-inch propellers.
The frame is suitable for individual projects: it is possible to order changes to mounting holes for motors and other electronic components, make structural modifications, and arrange serial production of complete drones or individual components to meet your needs. The painting option allows for adapting the appearance to corporate colors or project style.
This product is ideal for users who value reliability, lightweight construction, and customization options. If you need an assembled or disassembled frame with a complete set of hardware — the Brotherhood model will be an optimal choice for racing, video, and industrial tasks.
