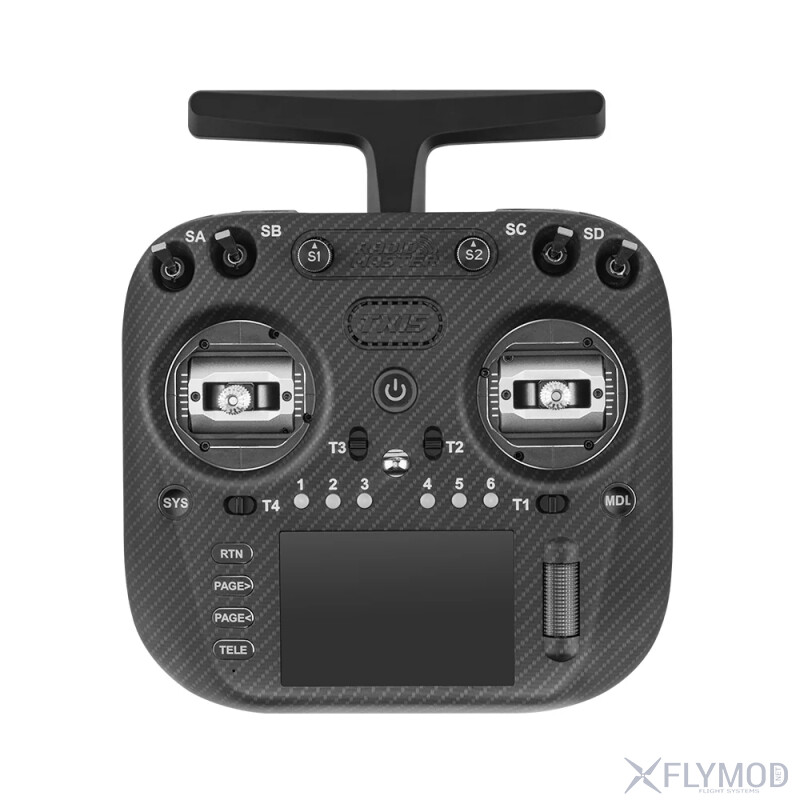

The RadioMaster TX15 Max radio control system is powered by an STM32 H7 processor, ensuring high speed and precise response when using EdgeTX firmware. The TX15 Max differs from the standard version by using red, black, or gold AG02 CNC aluminum gimbals, as well as updated metal buttons and a scroll wheel. The carbon fiber body enhances durability and adds a modern look. Integrated RGB backlighting around the gimbals is customizable via LUA scripts. The design includes 4Gb of flash memory with the possibility of expansion using a MicroSD card for storing models, scripts, and updates. The model supports ExpressLRS in two bands, 2.4GHz and 900MHz (one frequency can be used, but not simultaneously), allowing for long-range operation with minimal signal delay. The gyroscope with TiltX/TiltY functions enables control of switches, telemetry, or camera panning by tilting the remote. The 3.5-inch high-brightness IPS touchscreen display ensures readability even in direct sunlight. The cooling system, based on a fan and an aluminum heatsink, stabilizes the temperature during intensive operation.

Features

• Premium AG02 gimbals for enhanced smoothness
• ExpressLRS 2.4GHz/900MHz integration for reliable long-range control
• Fast STM32 H7 chip performance powers the radio
• AG02 gimbal: weight reduced by over 20%, with adjustable travel on both vertical and horizontal axes
• Integrated RGB LED backlighting around the gimbals allows for customizable lighting with LUA control
• 3.5-inch IPS touchscreen with 480x320 resolution, vibrant colors, and clear detail
• Built-in microphone for future function expansion
• 4Gb built-in flash memory and support for external MicroSD cards
• Low noise, powerful fans, and an aluminum heatsink keep the radio cool

Specifications

• Version: FCC (international)
• Chip: STM32 H7
• Frequency: 2400MHz or Sub-G 900MHz (switchable)
• Number of channels: 16 channels (depending on receiver)
• Gyroscope: yes (ICM-42607-C)
• Protocols: Express-LRS
• Transmitter module: built-in ELRS
• Flash memory: 4Gb
• Module firmware: ExpressLRS
• Antenna gain: 2dB
• Display: 3.5-inch 480x320 IPS touchscreen
• Current: 875mA at 8.4V
• Voltage range: 6.6- 8.4V DC
• Radio firmware: EdgeTX (transmitter) (version 3.0.0 or later required)
• Gimbals: AG02 CNC Hall sensor
• Cooling fan: yes
• Built-in microphone: yes (future expansion possible)
• Module bay: JR-compatible bay for additional modules
• Connectivity: USB-C
• Gimbal sticks: M4
• Update method: USB-C (UF2)
• MicroSD card: 32Gb/FAT32 (not included)
• Recommended battery: 7.4Vх2 Li-Po/3.7Vх2 18650 Li-Ion/21700 5000mAh
• Color: red/black/gold (optional)
• Size: 178*168*81mm
• Weight: 672g (without battery)

Package Contents

• 1 x RadioMaster TX15 Max radio control system
• 1 x Branded carrying case
• 1 x Short 2-position latching shoulder switch
• 1 x Short 2-position momentary shoulder switch
• 1 x 18650 battery tray
• 1 x USB-C cable
• 1 x Screen protector film
• 1 x 1.5mm hex key
• 4 x High-tension gimbal stick springs
• 2 x Gimbal stick end screws
• 1 x User manual

Attention! Batteries are not included in the package!
