Wartex Collinear (Stick) Antenna for EW

The Wartex Collinear (Stick) Antenna for EW is a professional and reliable antenna from the Wartex brand, designed for integration into electronic warfare (EW) systems. Its collinear design ensures stable coverage and effective suppression or reception of radio signals across a wide frequency range. The device is distinguished by increased durability, long service life, and resistance to intense mechanical loads, making it suitable for field and mobile applications.

Specifications

• Frequency range: 400-500/500-600/700-860/860-1020/820-940/2400/5800 MHz;
• Gain: 3 ± 1 dBi;
• Voltage Standing Wave Ratio (VSWR): not more than 2.0;
• Input impedance: 50 Ω;
• Horizontal beamwidth: 360° (omnidirectional in the horizontal plane);
• Input connector type: N-Type Male;
• Weight: approximately 1 kg;
• Dimensions: 30x30x400 mm.

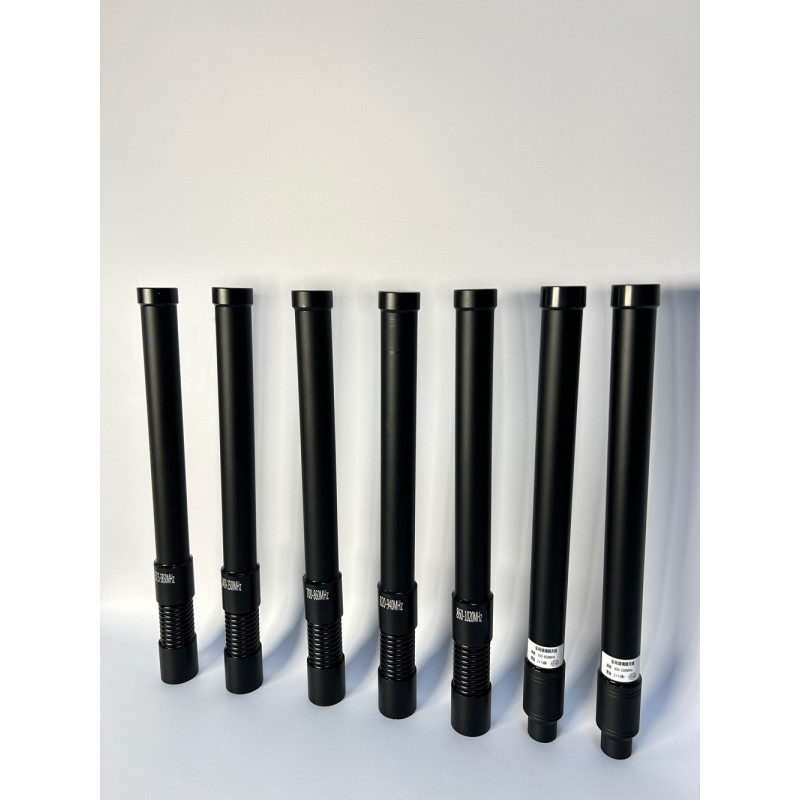

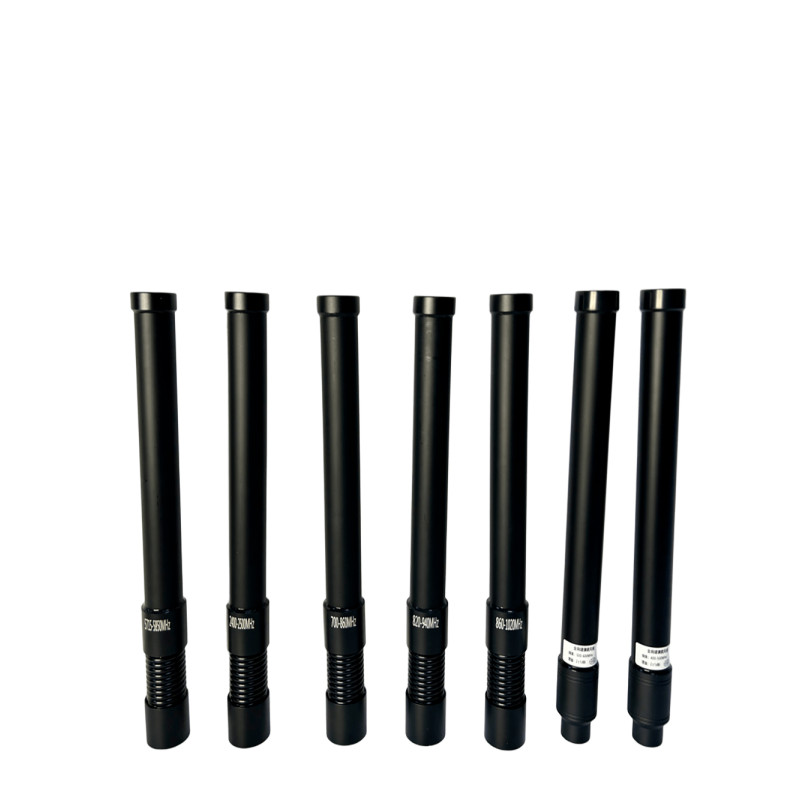

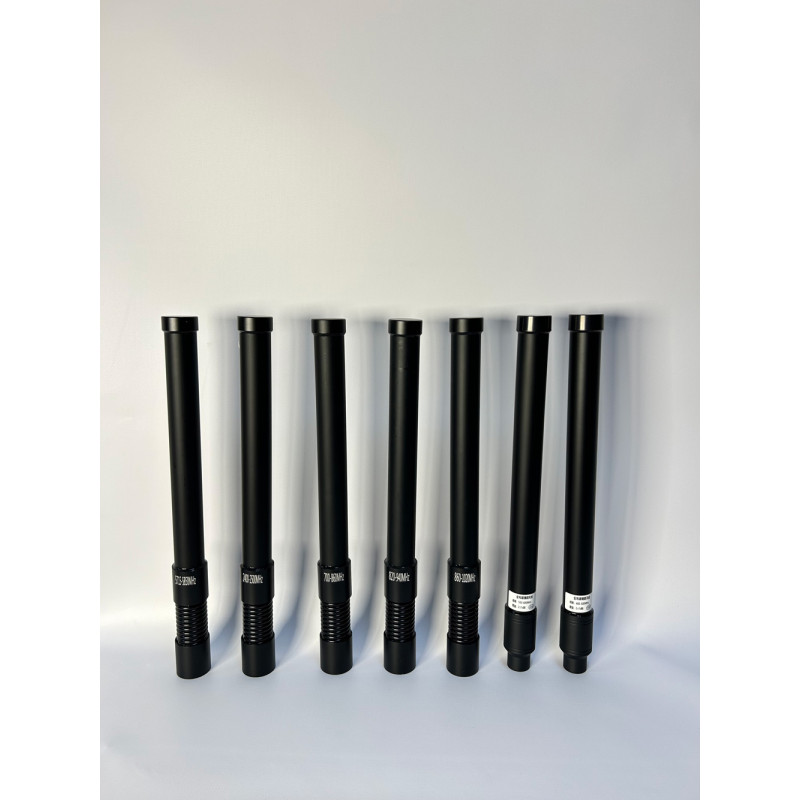

The antenna is equipped with a sealed radio-transparent protective collar, which may have folds; such folds do not affect the quality of the device's operation. To ensure compatibility with various systems, it can be supplied with different connector types — female or male — providing flexibility in connection. A special feature for the 400-500 and 500-600 MHz ranges is a spring-loaded design, which increases the antenna's endurance and resistance to physical loads and impacts.

Wartex collinear (stick) antennas are recommended for integration into EW systems where reliable signal suppression or reception in the specified ranges is required. Thanks to the 360° horizontal beamwidth, antenna installation and orientation in the field are significantly simplified: there is no need for precise aiming to cover an area in the horizontal plane.

The 50 Ω input impedance, low VSWR, and 3 ± 1 dBi gain ensure efficient power transmission without significant losses. The N-Type Male connector provides reliable contact and compatibility with military and industrial equipment. The antenna's design allows for mobility: a weight of approximately 1 kg makes the device convenient for transportation and installation on various carriers and setups; dimensions of 30x30x400 mm allow for easy integration into confined spaces.

Antenna interface: Male. 1 antenna is supplied in the set.

Brand: Wartex. Product type: Antennas. The model combines ease of installation, reliable design, and technical parameters necessary for professional applications in the EW field. The antenna is suitable for use in stationary and mobile systems where stable collinear coverage and high resistance to mechanical stress are required.

Special notes: possibility of equipping with female or male connectors for compatibility with various devices; spring-loaded versions for 400-500 and 500-600 MHz ranges increase resistance to impacts and mechanical loads; a sealed radio-transparent collar protects the internal elements of the antenna from environmental influences.
