VideoLink VA-Sw-3/4 Video Switch-Splitter — Compact Solution for Multi-Camera Systems

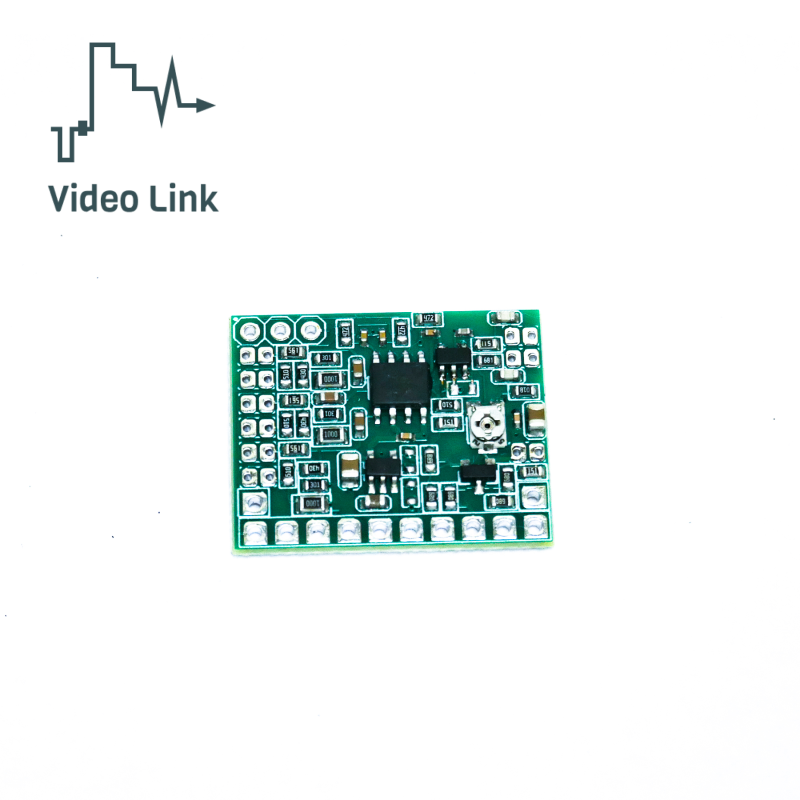

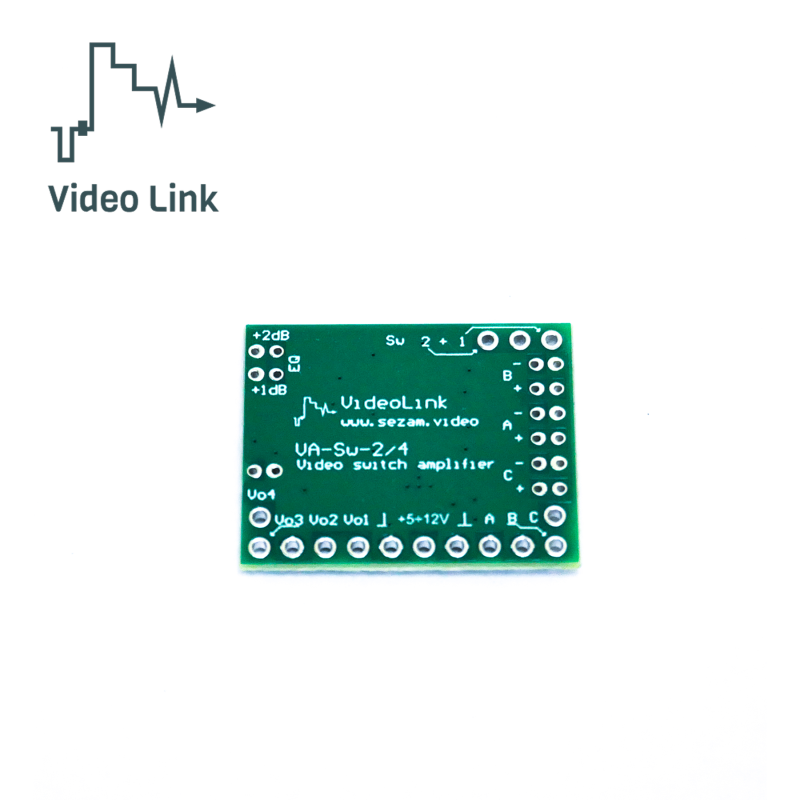

VideoLink VA-Sw-3/4 — a professional video switch-splitter designed for use in drones, repeaters, and ground stations. This compact and energy-efficient module allows selecting one of three video sources and simultaneously duplicating the video signal to multiple receivers, ensuring flexible integration into a video transmission system.

Key Features

• Three video inputs for connecting up to three cameras or other video signal sources.
• Four video outputs for transmitting the signal to multiple devices (model designated as 3 inputs and 4 outputs). Please note: the original description also mentions "built-in splitter for three outputs" — when selecting a configuration, clarify the actual output layout for your unit with the seller.
• Individual video level correction for each input and overall output signal level correction, allowing equalization of signals from cameras with different sensitivities.
• Built-in equalizer for restoring clarity and improving image quality during cable transmission.
• Low power consumption and compact dimensions, making the module suitable for flight platforms with limited power.

Technical Specifications

All technical parameters according to the description:
Supply voltage: 5 to 12 V
Current consumption: up to 50 mA
Number of inputs: 3
Number of outputs: 4
Size: 27x22x3 mm

Application and Integration

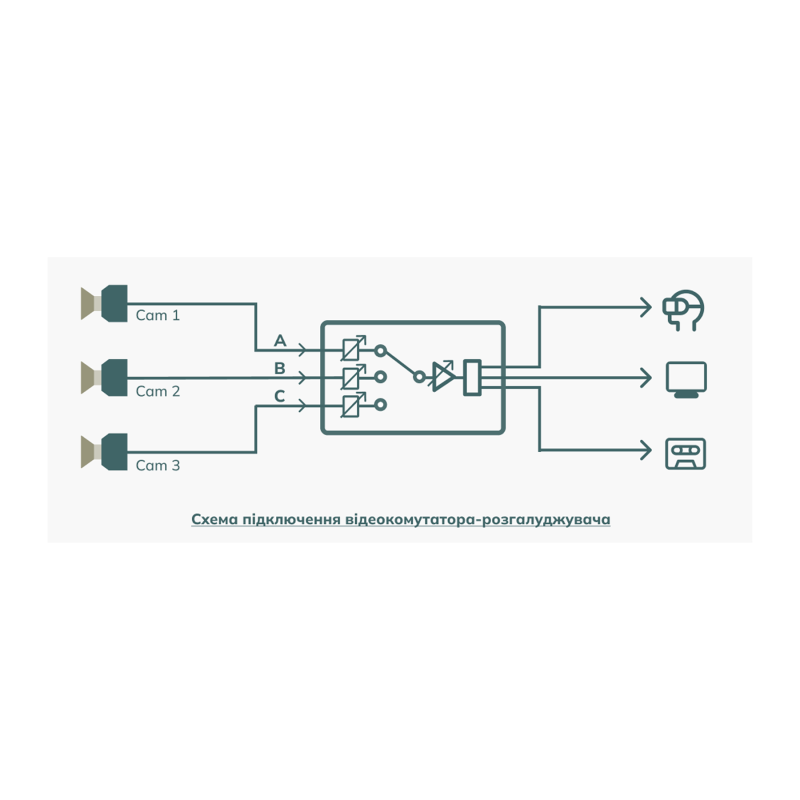

The module is ideal for integration into multi-camera drone systems, organizing video stream duplication to multiple receivers, and use in repeaters and ground stations. Thanks to individual correction on each input and overall level correction, the device allows for quick adjustment of the optimal signal level from various cameras and maintains stable transmission during flight. Compact dimensions of 27x22x3 mm and consumption of up to 50 mA make the module an energy-efficient choice for platforms with limited power.

Operates from a standard 5–12 V power range, simplifying integration with most flight controllers and transmitters. Before purchasing, we recommend checking connector compatibility and video signal level requirements in your system. If you see a mention of a "splitter for three outputs" in the description or on the packaging, clarify the output configuration for your specific unit with the seller.

Manufacturer: VideoLink.
Product type: Drones & Quadcopters > Drone Components > Drone Accessories.

This description contains all key technical data and application recommendations necessary for making a purchase decision and integrating the device into your video system.
