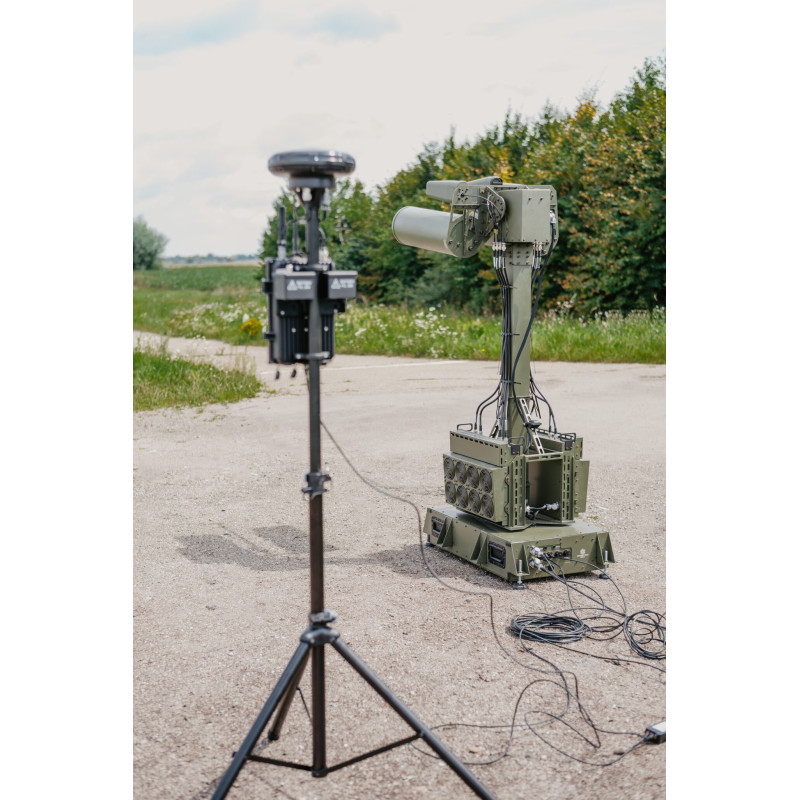

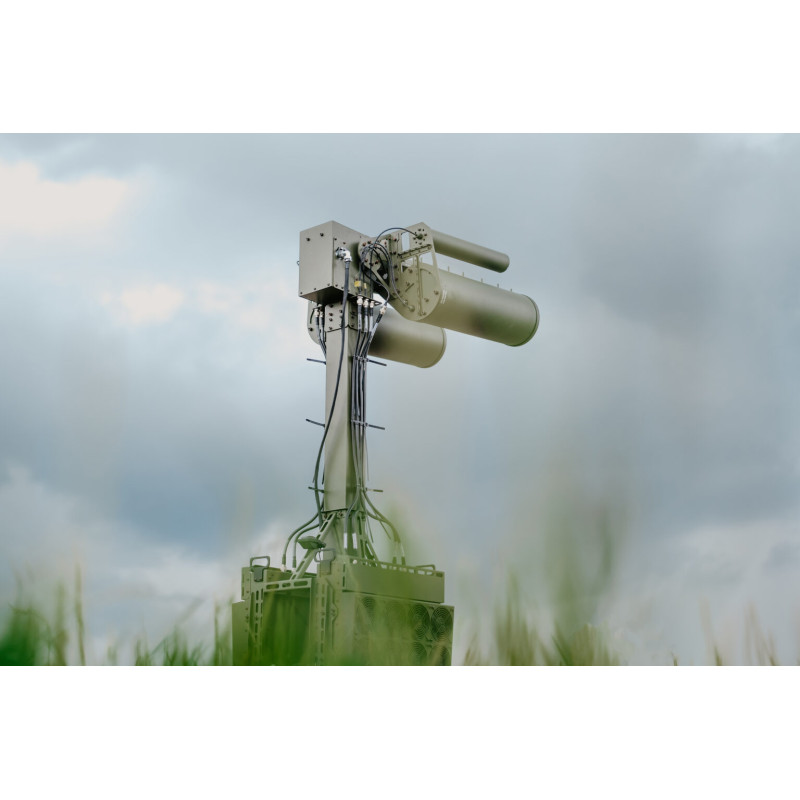

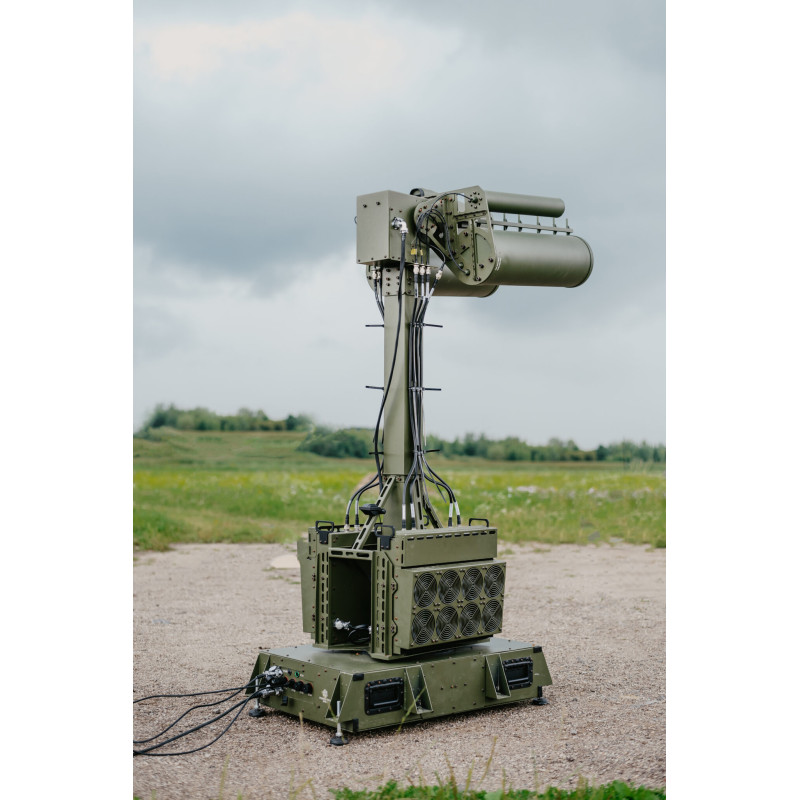

UAV Countermeasure System SPR "Closed Sale" from manufacturer Piranha-Tech is a stationary EW engineering solution designed to protect strategically important objects from unauthorized drone flights. System type: EW – Trench EW Jammers. The price is indicated for marketing purposes. Please inquire about the actual price with our manager. The calculation is made individually for your request!

SPR is designed for automatic detection and suppression of threats through integration with external systems for determining coordinates or direction to the target. The complex can operate as a standalone stationary unit, providing reliable UAV countermeasures across a wide range of frequencies and application scenarios, as well as in conjunction with external sensors to enhance response accuracy.

Key Features

• Total output power: up to 400 W

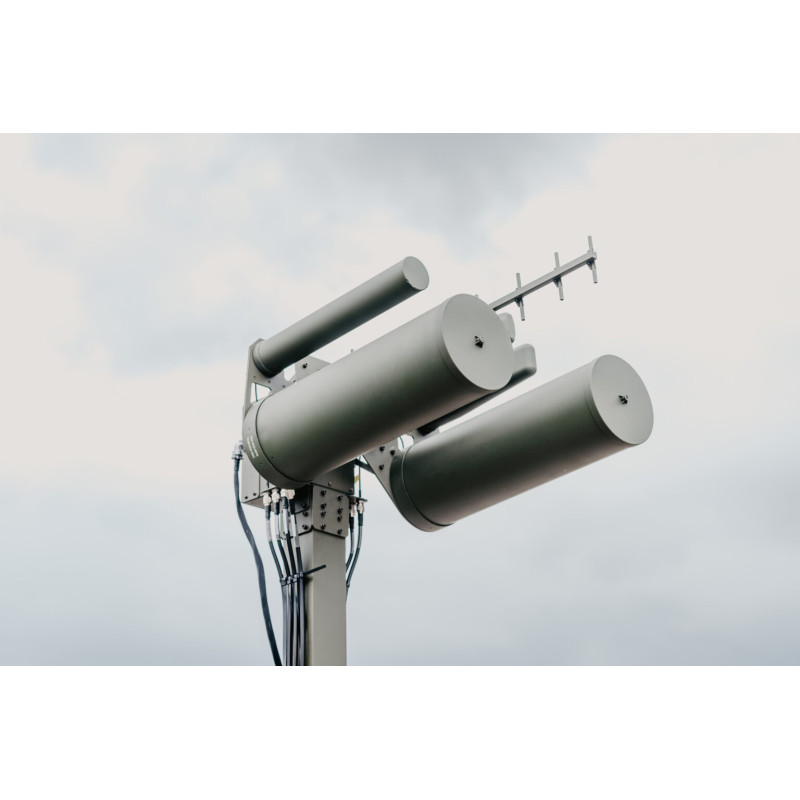

• Number and type of antennas: up to 8 directional antennas
• Antenna gain: at least 8 dBi for low frequencies and at least 12 dBi for high frequencies
• Generator type: VCO+PLL/PLL
• Protection: VSWR, overheating protection
• Control: control panel in a protected shockproof case
• Built-in PC with specialized software
• Internal power supply: 24/28 V DC
• External power supply: 220 V, 50 Hz AC
• Consumption: no more than 4 kW

Operating Conditions

• Operating temperature: -20…+40°С
• Humidity: 5%…95%

Principle of Operation

The SPR system implements directional radio jamming across several frequency bands. By using directional antennas and controlled generators (VCO+PLL/PLL), the complex effectively jams UAV communication and navigation channels, minimizing impact on adjacent systems and maintaining high target engagement effectiveness. The integration with third-party sensors allows for automatic determination of target coordinates or direction, which reduces reaction time and ensures rapid switching between priority threat directions.

Countermeasure Effect

• Loss of drone operator control or significant control difficulties
• Loss of video signal from the drone
• Blocking access to drone geopositioning systems
• Loss of UAV telemetry data
• Possible consequences: drone crash, disorientation, mission interruption, or forced return to takeoff point

The delivery set includes a control panel in a protective case and a built-in PC with specialized software for setup and monitoring. The SPR system is suitable for protecting critical objects, perimeters with enhanced airspace control, and defense lines where reliable, controlled, and adjustable UAV countermeasures are required.

Manufacturer information: Piranha-Tech. It is recommended to contact a manager to clarify the price, delivery terms, and individual integration requirements.
