EW Wartex backpack fpv 110w — mobile electronic warfare jammer

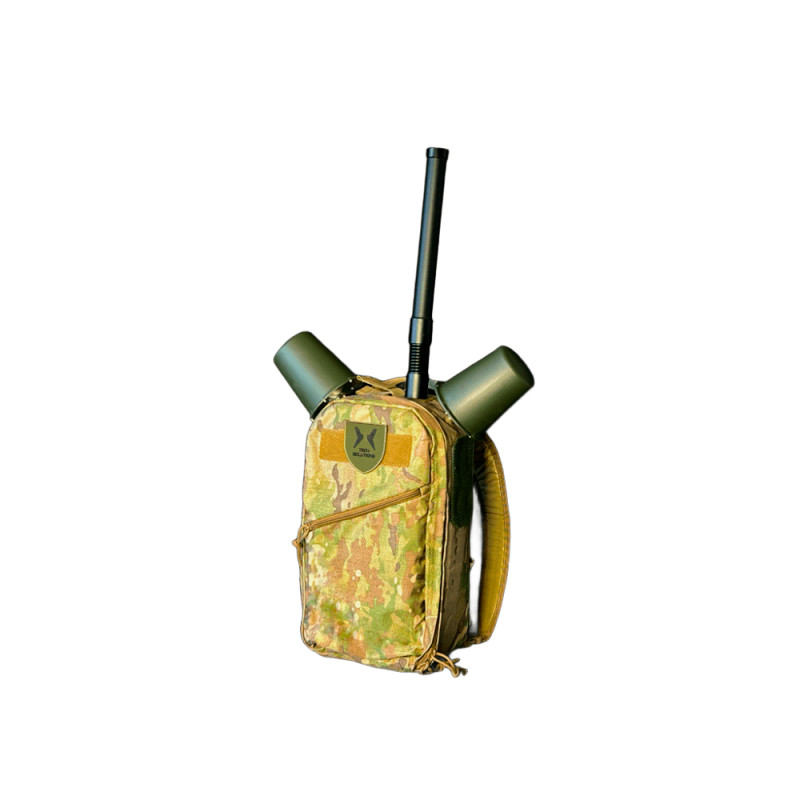

EW Wartex Backpack LOW FPV 110W from Wartex is a modern portable device in a backpack form factor, designed for effective suppression of FPV drone control and video signal transmission. With a total power of 110W, the device reliably blocks popular communication bands, providing operational protection in the field and high mobility during tactical missions. The device combines compact dimensions, a well-thought-out ergonomic design, and the ability for quick deployment without additional equipment.

Technical Specifications

• Operating bands: 700-860 MHz, 860-1020 MHz, 2400 MHz.
• Power per channel: 30 W / 30 W / 50 W respectively.
• Total output power: 110 W.
• Power consumption: 300 W.
• Power input: 12-28 Volts.
• Antenna directionality: 360 degrees.
• Antennas: omnidirectional collinear dome antennas.
• Weight without battery: approximately 4 kg.
• Weight with battery: approximately 10 kg.
• Dimensions without antennas: 450x250x200 mm.
• Dimensions with antennas: 850x450x200 mm.

The backpack design includes an integrated control panel and battery charge indicator directly in the shoulder strap, allowing for quick monitoring of the device's status without unnecessary actions. The kit includes antennas, a battery, and a charger, so the Wartex Backpack LOW FPV 110W is ready for use immediately after deployment. Power in the 12–28V range allows connection to various power sources on the ground or on vehicles, with a power consumption of 300W.

The Wartex Backpack is designed for use in various tactical scenarios: in trenches, on vehicles, or while on the move. Thanks to omnidirectional collinear antennas with 360° coverage, uniform suppression is achieved in the area of responsibility. The device effectively enhances the suppression of the most common FPV control frequencies, including ELRS and TBS, both in stock settings and with programmatically shifted frequencies, and also supports the 2.4 GHz band.

The device operates for up to 4 hours, ensuring prolonged use without frequent recharging. Compact dimensions without antennas of 450x250x200 mm and a weight of about 4 kg (10 kg with battery) make it a balanced solution in terms of autonomy and mobility for quick deployment in the field.

The EW Wartex backpack fpv 110w model belongs to the family of electronic warfare (EW) devices and is aimed at protecting against drones and limiting control channels. It combines high output power, versatile operating bands of 700-860 MHz, 860-1020 MHz, and 2400 MHz, a convenient ergonomic backpack design, and a complete set (antennas, battery, charger), making it an optimal choice for units requiring operational and reliable neutralization of FPV drones in combat zones or at protected facilities.

Other technical and operational features of this solution ensure flexibility of application, ease of maintenance, and compatibility with typical tactical scenarios where mobility, speed of deployment, and reliability of control channel blocking are important.
