Main specifications
Jamming range: 300-800 m
Device type: Trench & Vehicle EW Jammer
Number of jamming channels: 3
Total system power: 120 W
Power per channel: 50/20/50 W
All specifications
We will deliver this product:
Payment
Description

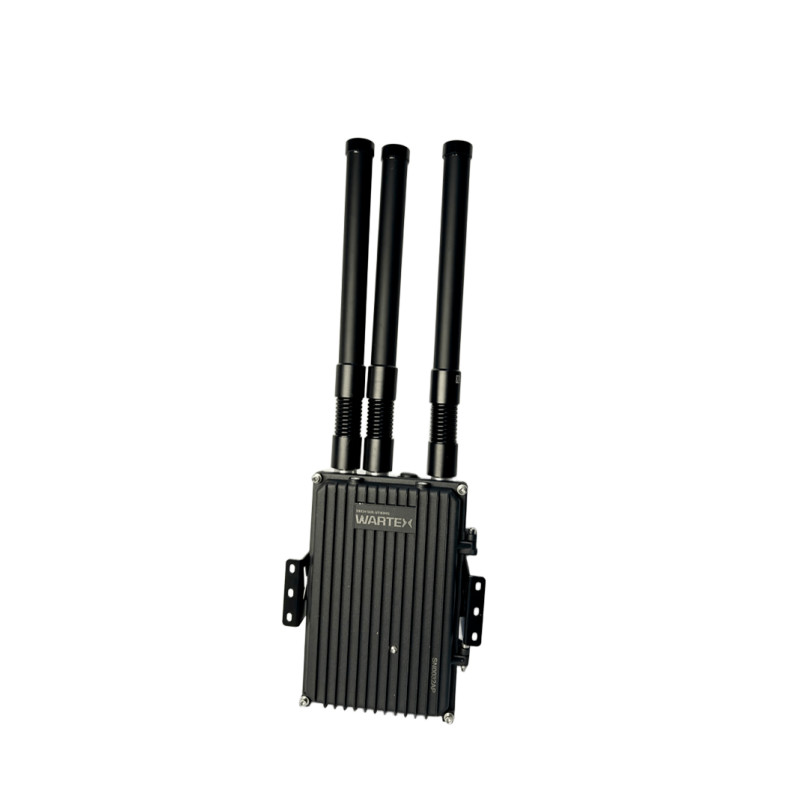

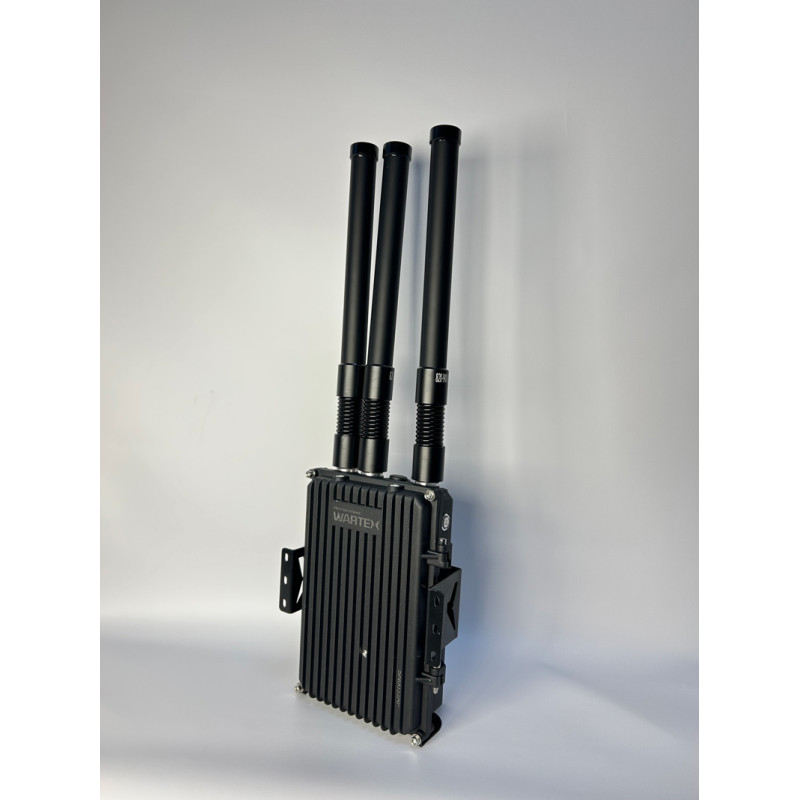

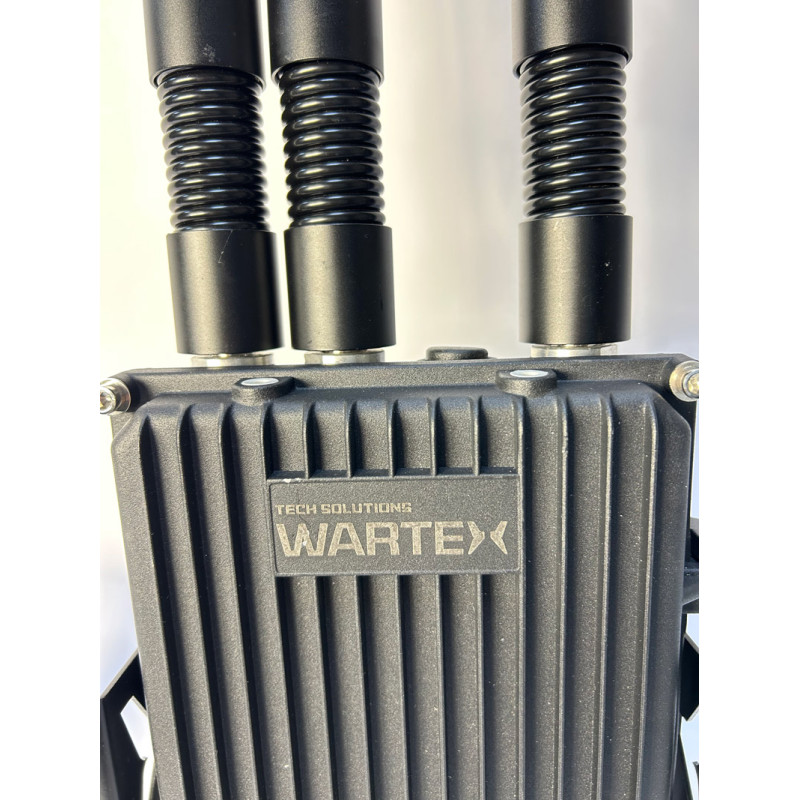

EW Wartex apostol fpv + mavic 120w

The Wartex Apostol FPV Mavic 120W electronic warfare (EW) jammer from the manufacturer Wartex is a high-performance device for jamming remote control and data transmission channels of unmanned aerial vehicles. The model is positioned as a mobile and reliable solution for protection against FPV drones and the entire DJI Mavic line, providing a total power of 120W for effective suppression of common frequencies.

Key Features

  • Operating ranges: 2.4 / 5.8 / 900 MHz.
  • Power per channel: 50 / 20 / 50 W (total power 120 W).
  • Power consumption: 340 W.
  • Power input: 12-28 Volts, XT60 connector.
  • Antenna directivity: 360 degrees (omnidirectional operation due to antenna configuration).
  • Antenna type: all directional, collinear dome-action.
  • Weight without battery: approximately 4 kg.
  • Dimensions without antennas: 260x167x85 mm.
  • Dimensions with antennas: 860x167x85 mm.

The device is designed as a compact and easy-to-use module, allowing deployment in field conditions — in trenches, on vehicles, or on stationary platforms. Thanks to the directional antenna design and 360-degree coverage capability, the Wartex Apostol FPV Mavic 120W effectively suppresses the most popular FPV control protocols (ELRS/TBS with typical settings) and DJI drone communication channels, ensuring the blocking of both control commands and video stream transmission.

Package Contents and Autonomy

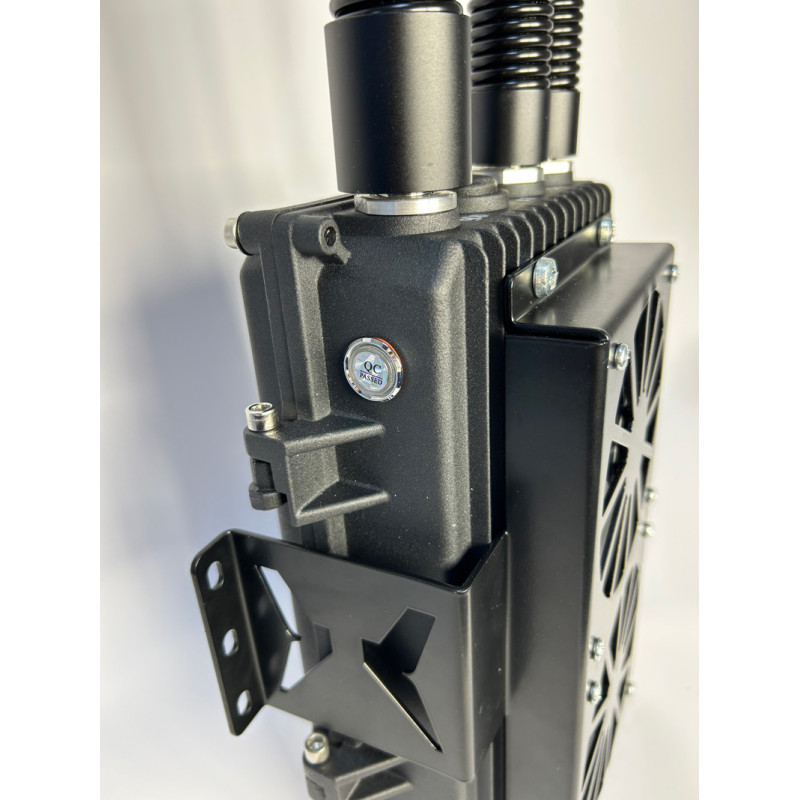

The kit includes antennas, a battery, and a charger, providing autonomous operation for up to 90 minutes without additional external power. For ease of installation and operation, the device is equipped with additional mounting elements that allow reliable fastening of the housing on flat surfaces or on vehicle brackets.

With 120W of power, robust construction, and 12 to 28V power options via an XT60 connector, this EW jammer becomes a versatile solution for military and special units requiring mobile electronic warfare protection.

The model combines modern technical solutions, reliability, and ease of use, making the Wartex Apostol FPV Mavic 120W an optimal choice among EW jammers for protection against unmanned aerial vehicles in various application conditions.

Other technical and operational details are listed above, including dimensions, weight, antenna characteristics, and power supply.

Other products in this category here EW Jammers

Specifications
Jamming range 300-800 m
Frequency range 900 MHz; 2400–2500 MHz; 5725–5850 MHz
Trench EW Jammer
Device type Trench & Vehicle EW Jammer
Number of jamming channels 3
Total system power 120 W
Power per channel 50/20/50 W
Suppression Frequencies 900 MHz; 2.4 GHz; 5.8 GHz
Antenna type Omnidirectional, Dome
Effective jamming range up to 400 m
Power Supply 12 V
Power source Network, Battery

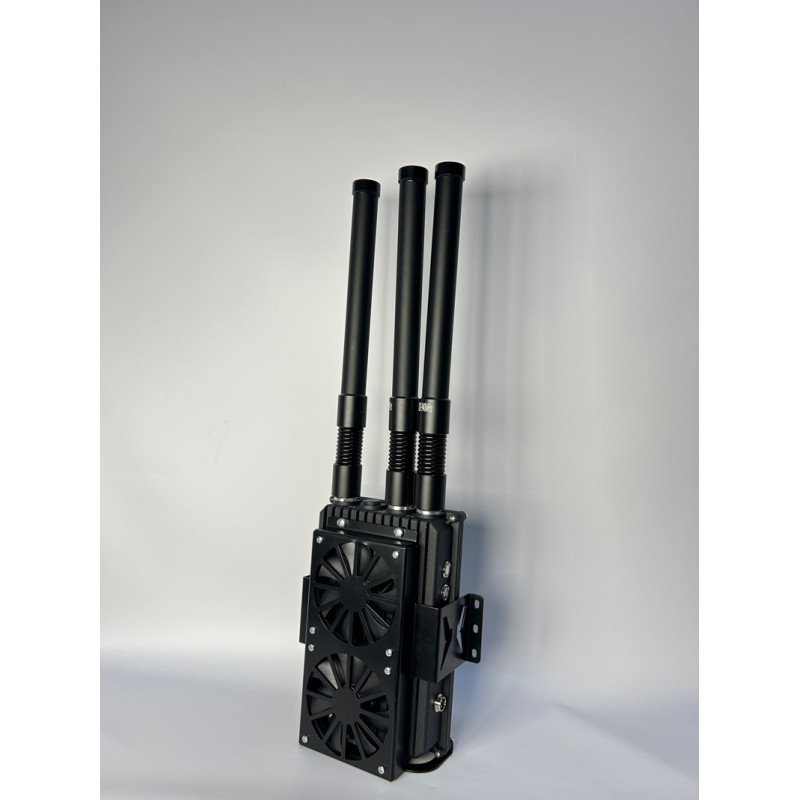

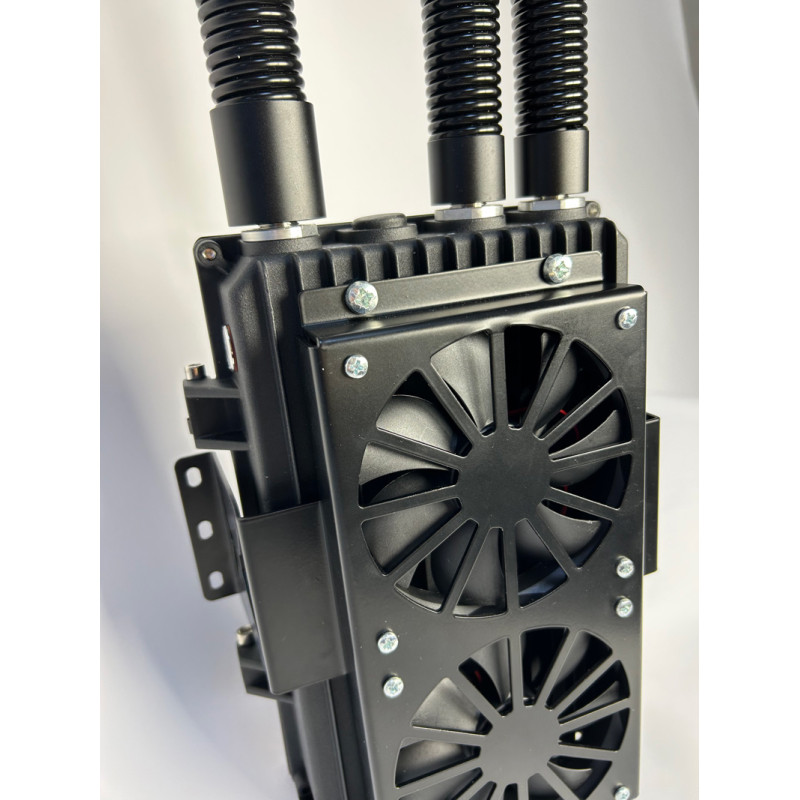

Cooling type Active
Mounting Type Trench, Trench/Vehicle
Operating time up to 90 min
