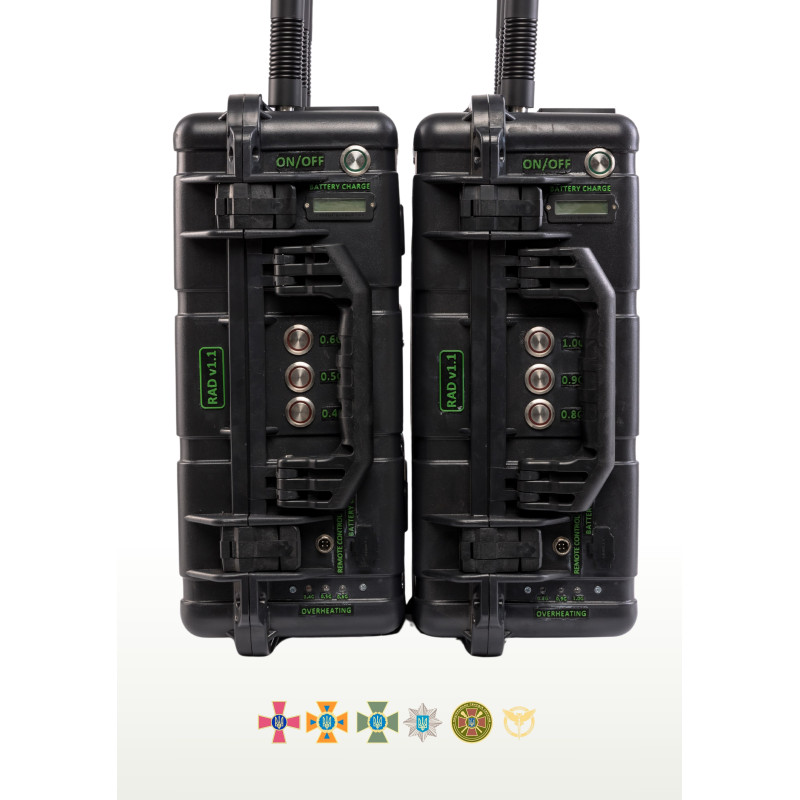

Trench EW Jammer RAD V1.1 400–1100 MHz (2 cases)
The RAD V1.1 EW jammer is a Ukrainian dome electronic warfare system designed for reliable protection of personnel, equipment, and defensive positions from drones, including FPV drones. The system comes as two modules (2 cases); each module can operate autonomously and covers its own frequency range, together covering the total range of 400–1100 MHz, divided into six sub-bands: 400–500, 500–600, 600–700, 700–850, 850–950, and 950–1100 MHz.
Specifications
- Brand: RAD
- Product type: EW jammers (trench EW jammers)
- Operating range: 6 sub-bands within 400–1100 MHz (400–500; 500–600; 600–700; 700–850; 850–950; 950–1100 MHz)
- Output power: 300 W
- Suppression range: up to 500 m
- Operating time: up to 9 hours of continuous operation on one band; up to 3.5 hours when operating on all three bands simultaneously
- Power supply: built-in LiFePO4 50 Ah battery in each module
- Full charge time: 2.5 hours

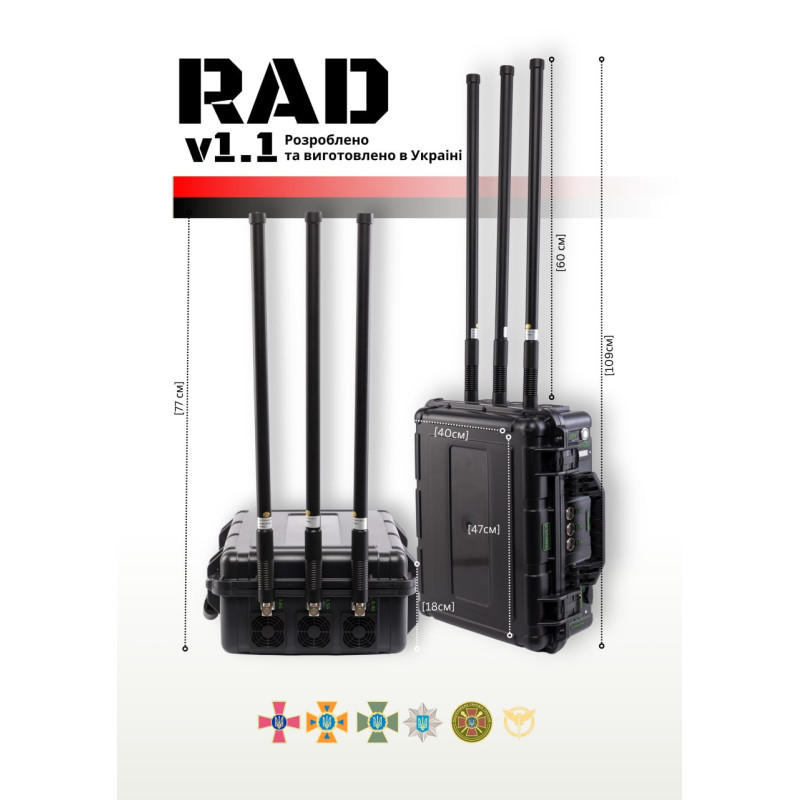

- Size (one module): 430 x 400 x 180 mm
- Weight (one module): 12.64 kg
- Enclosure protection rating: shockproof IP54 enclosure
Features

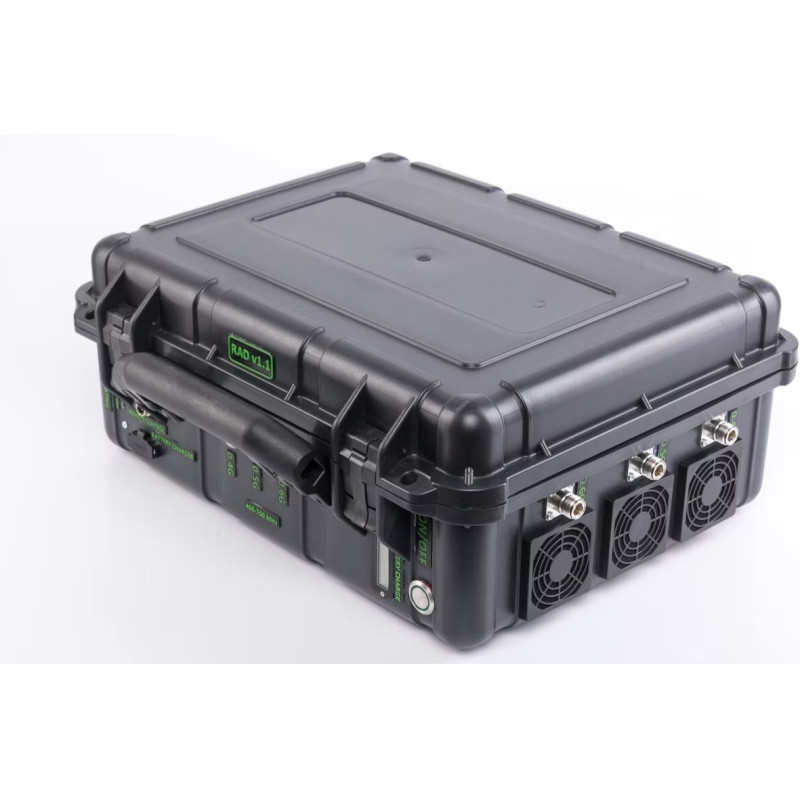

- Active cooling for stable operation under load
- Ability to connect a remote start button for ease of use

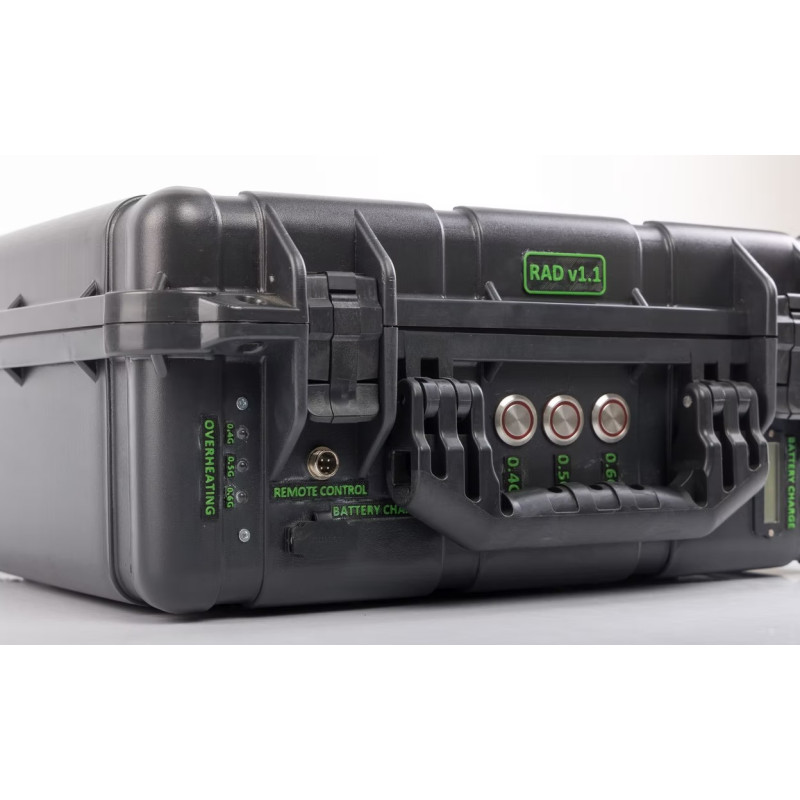

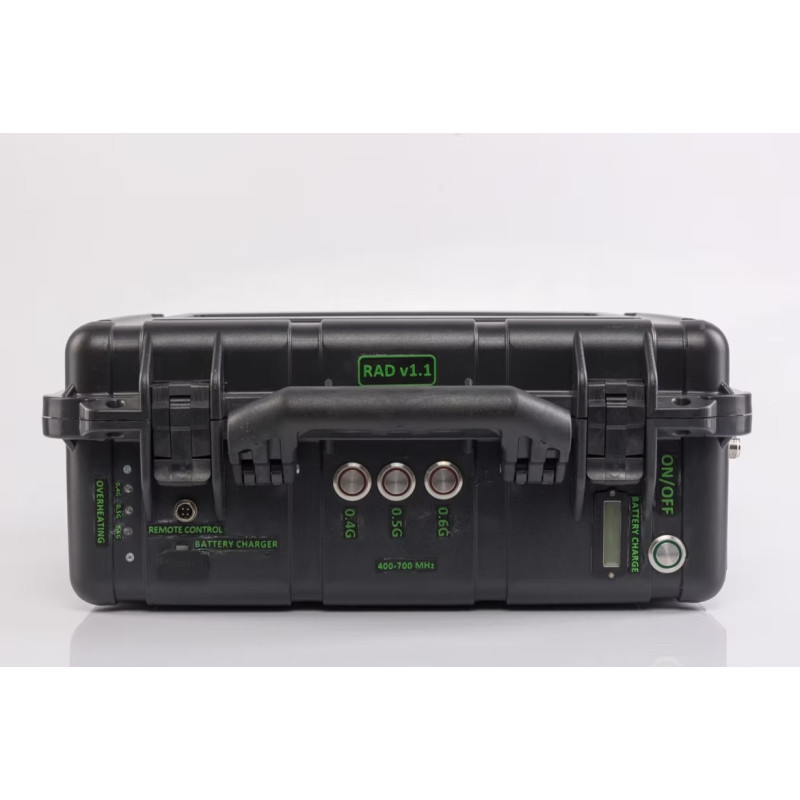

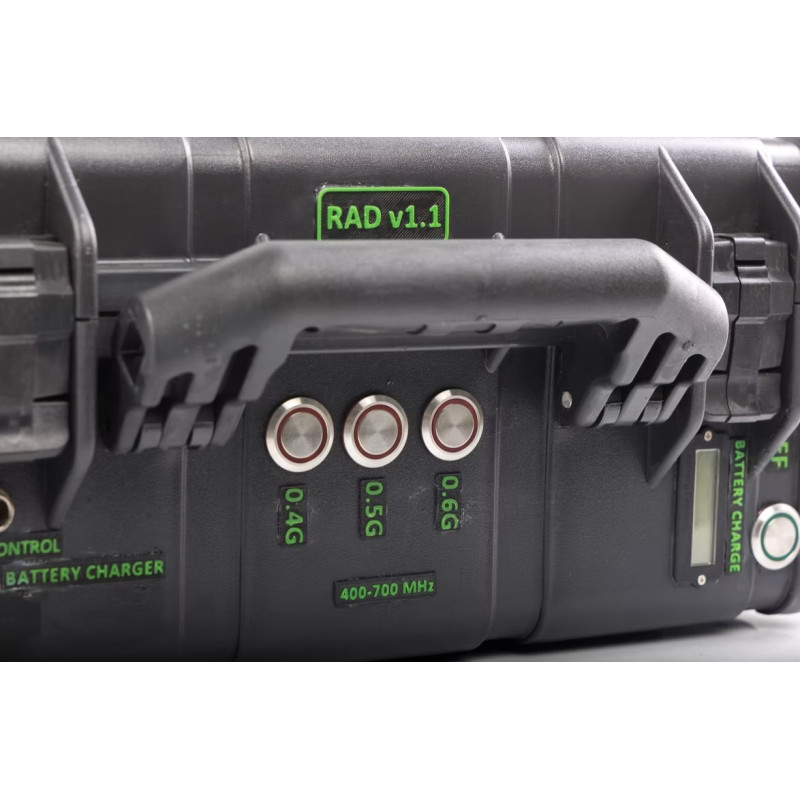

- Band selection buttons on the enclosure for quick mode switching
- Overheat and overvoltage protection
- Shockproof enclosure with IP54 protection rating for field use

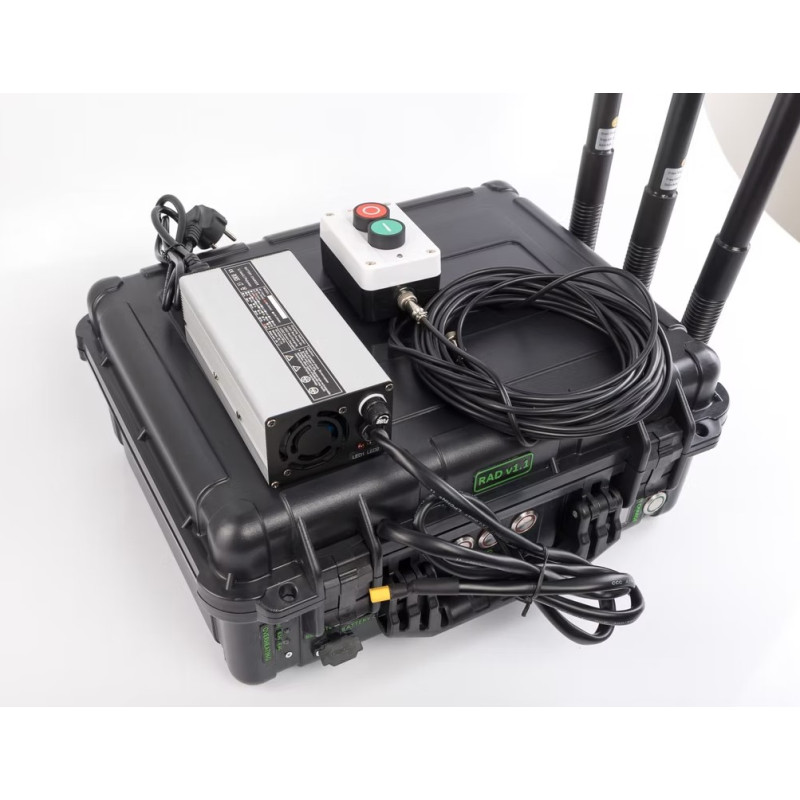

Package contents
1. EW jammer — 2 pcs.
2. Omnidirectional antennas — 6 pcs.:
- 400–500 MHz — 1 pc.
- 500–600 MHz — 1 pc.
- 600–700 MHz — 1 pc.
- 700–850 MHz — 1 pc.
- 850–950 MHz — 1 pc.
- 950–1100 MHz — 1 pc.
3. Wired remote control for turning the EW jammer on/off — 2 pcs.
4. Remote control cable — 10 m
5. Right-angle adapters for antenna connection — 6 pcs.
6. User manual — 1 pc.

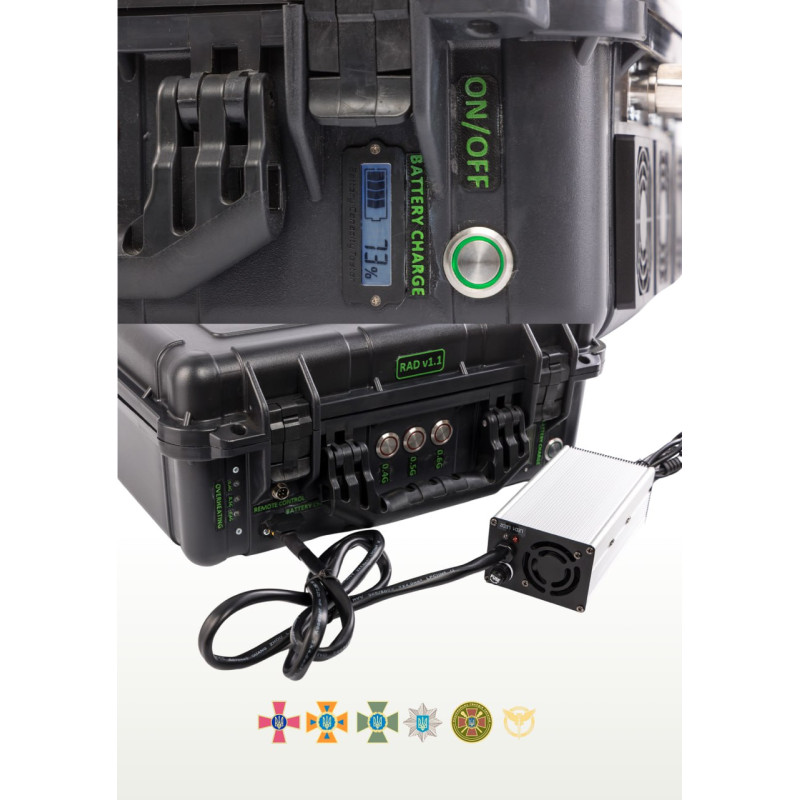

7. Charger 20.0 A, 14.6 V — 2 pcs.
Advantages and service
The RAD V1.1 is designed and manufactured in Ukraine, ensuring access to full technical support, personnel training, operational consultations, and prompt repairs throughout its service life. The design is confirmed by positive feedback from frontline units and has proven effective in real-world conditions, helping to protect lives and equipment.
Purpose
The system is effectively used to protect field positions, strongholds, and equipment from reconnaissance and attack UAVs by jamming control and video transmission channels within the specified frequency sub-bands. The RAD V1.1 is a reliable and proven solution for combating drones, designed with safety, mobility, and durability requirements in field conditions in mind.
