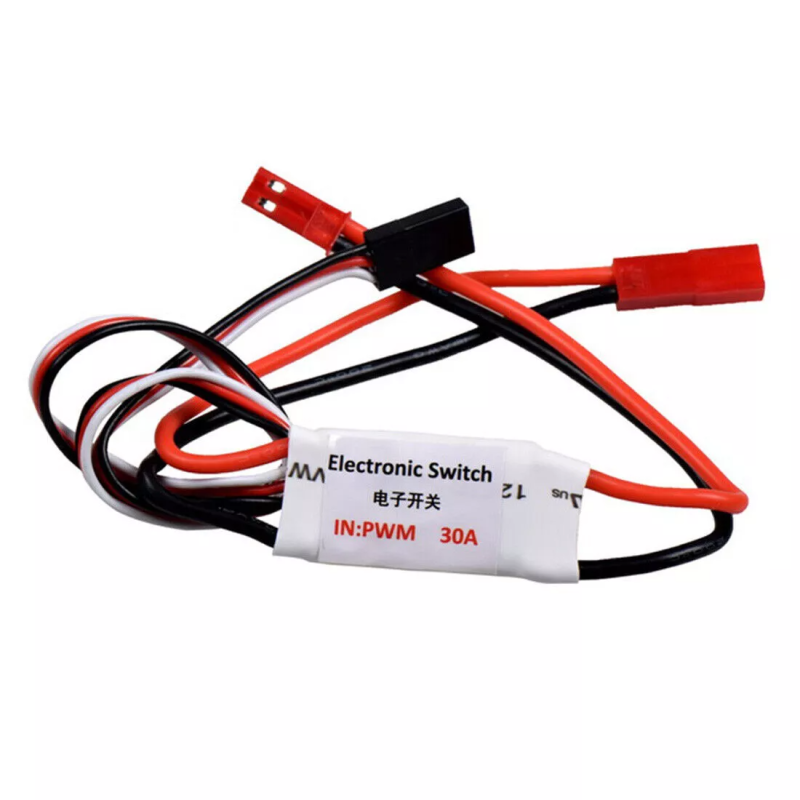

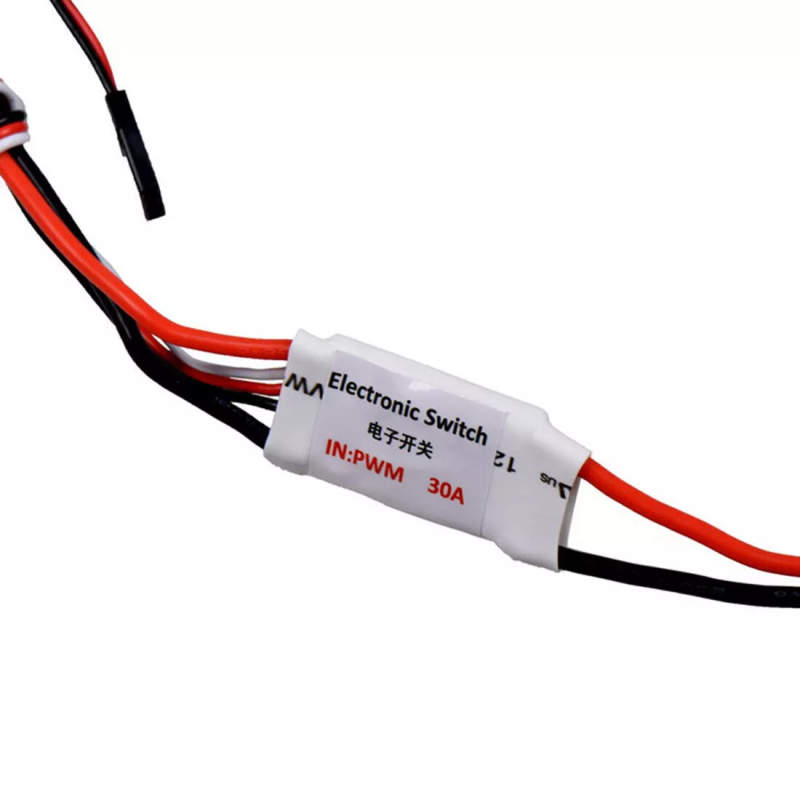

Remote Control Electronic Switch 30A 3.7V-27V RC PWM Signal (RCES-30A)

Brief Overview

The RCES-30A electronic semiconductor switch is designed for remote switching of loads in aviation models, cars, as well as in household and industrial devices that require control via a PWM signal. The device is compatible with a wide voltage range from 3.7V to 27V and withstands peak currents up to 30A, making it a reliable solution for controlling motors, pumps, LED strips, and heating elements.

Manufacturer and Purpose

Manufacturer: China. Category: Drones and Quadcopters > Drone Accessories.

Key Advantages

• Stable Operation: The device is pre-programmed for reliable switching without additional settings.
• High Throughput: A maximum current of 30A ensures operation with significant loads.
• Compactness: Small size and a weight of only 11g facilitate integration into model designs.
• Easy Connection: Intuitive connectors and standard signal connectors for quick installation.
• Quality Materials: Wires made of 18AWG high-current silicone and reliable JST and JR type connectors.

Areas of Application

• Remote control of model aircraft and cars.
• Switching LED strips on and off (not intended for direct use with LED lamps that have their own electronics).
• Electronic start and control of resistive heating elements.
• Control of water pumps in models and small fluid delivery systems.

User Manual

• Connection is made via the transmitter's control channel; a two-position (two-segment) switch is recommended for reliable control.
• Input Voltage: 3.7–27V.
• Connectors: Input — JST female; Output — JST male; Signal line — JR male.
• Maximum Current: 30A.
• LED indication on the housing shows the status — on/off.
• Wire Length: 20 cm, allowing for convenient routing of wires in the model's design.

Technical Specifications

• Type: Electronic switch (remote-controlled switch).
• Voltage: Input 3.7–27V.
• Current: Maximum 30A.
• Control Signal: PWM (Pulse Width Modulation).
• Connectors: JST (input/output) and JR (signal).
• Wire Materials: 18AWG high-current silicone wire.
• Weight: Approximately 11g.
• Wire Length: 20 cm.

Package Contents

• 1 x Electronic Switch 30A (RCES-30A).

This remote-controlled electronic switch will be a useful addition for hobby and professional projects where compactness, reliability, and a wide range of operating voltages are important. Thanks to standard JST and JR connectors, it is easy to integrate into most models and control systems, and the PWM signal allows for precise remote control.

Other technical and operational questions can be clarified with the seller or in the model's instructions. Brand: China. Product Category: Drones and Quadcopters > Drone Accessories.
