Skyzone SteadyView X 5.8GHz Video Receiver

Skyzone SteadyView X 5.8GHz — a compact, high-sensitivity video receiver from Skyzone, designed for integration into FPV ground stations, goggles, and monitors. This module offers reliable signal reception in the 5.3–6 GHz range with support for 48 channels and advanced operating modes, making it a versatile solution for both professional pilots and hobbyists.

Key Advantages

• High sensitivity: -98 dBm ± 1 dBm, ensuring stable reception of weak signals.

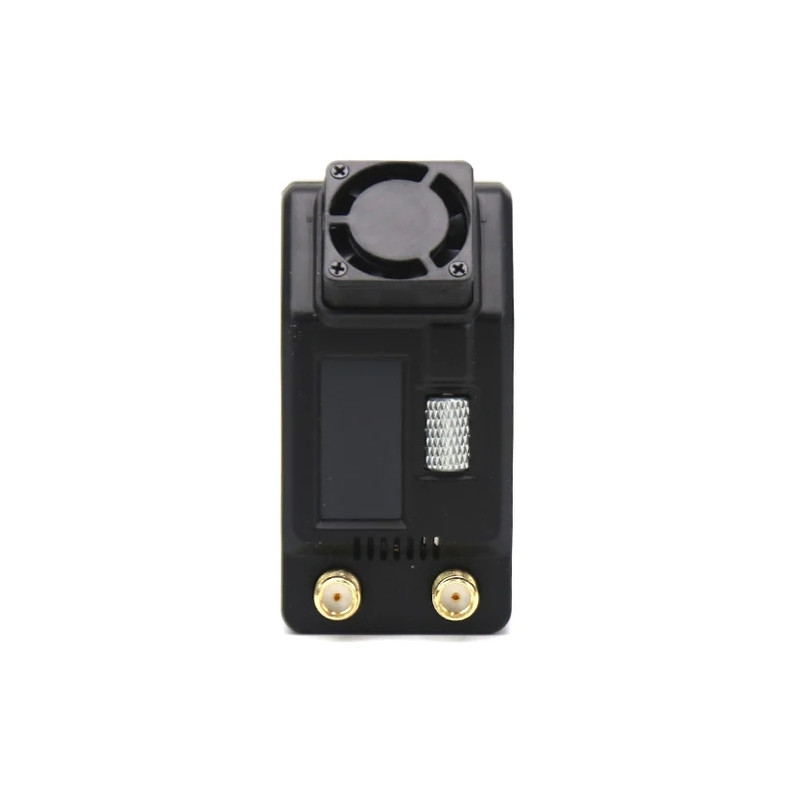

• IPS screen and 0.96-inch color LCD for quick status and parameter indication.
• Convenient wheel control for quick menu navigation.

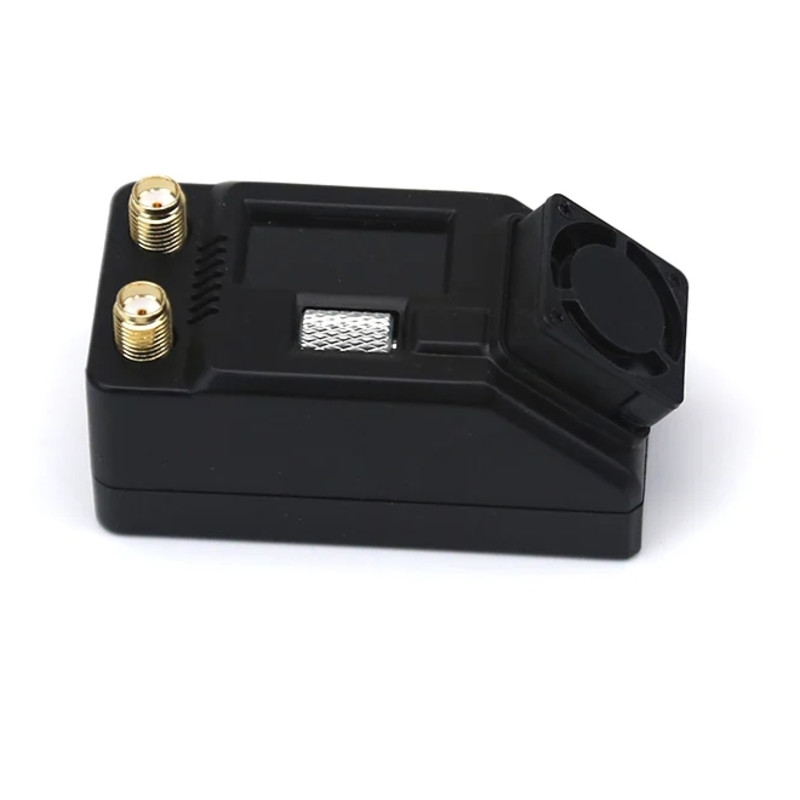

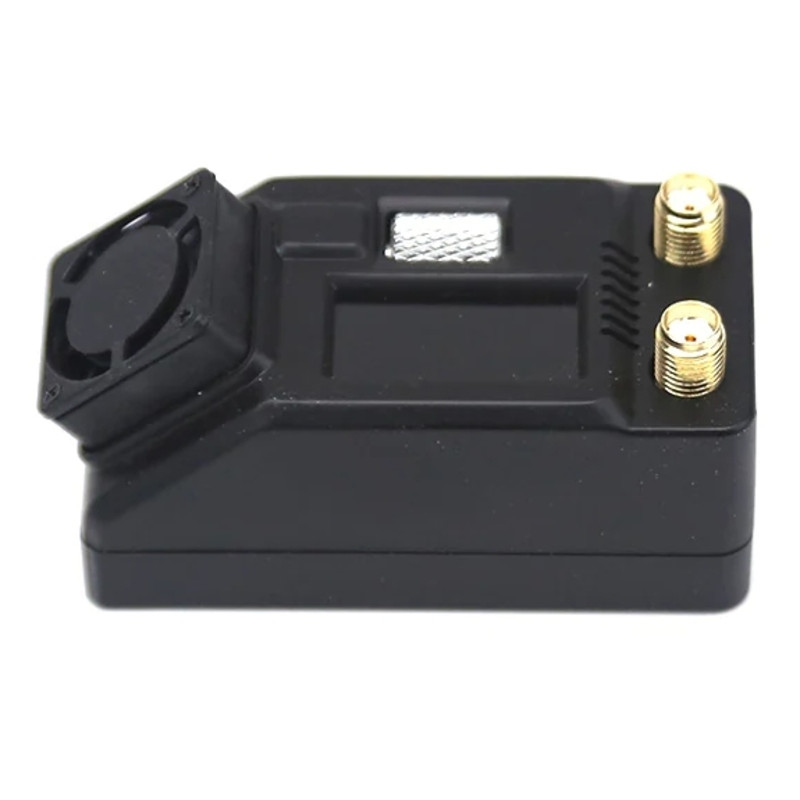

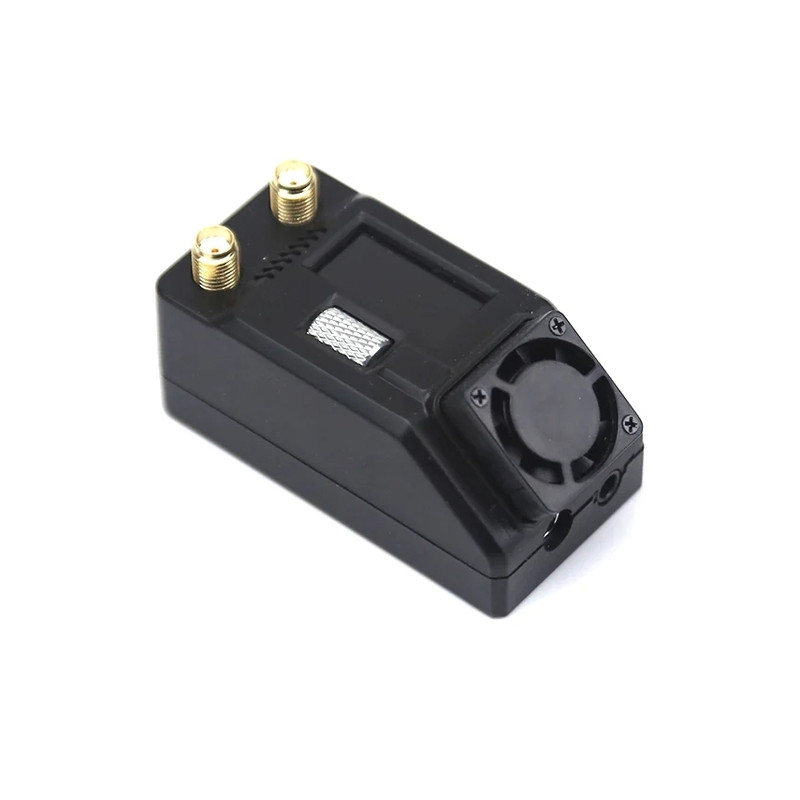

• Dual SMA connectors (2x standard SMA-K, 50 Ohm) for connecting various antennas or using Diversity mode.
• Built-in narrowband filter, improving performance in noisy environments.
• USB-C port for firmware updates and the ability to power the module in the field.
• ELRS support for compatibility with relevant controllers and ecosystem.

Technical Specifications

• Frequency range: 5.3–6 GHz, 48 channels (adjacent 5.8GHz frequencies).
• Sensitivity: -98 dBm ± 1 dBm.
• Display: 0.96" color LCD (IPS).
• Operating modes: Mix1, Mix2, Mix3, Diversity, Single RX — allowing reception to be adapted to various antenna configurations.
• Video output: 1.0 Vp-p Typ. / 75 Ohm.
• Audio output: none.
• Power supply: operating voltage 6.5–26 V; power consumption: at 12 V approximately 240 mA in normal mode and about 180 mA in Single RX mode.
• Interfaces: DC input 5.5 mm × 2.1 mm, A/V output 3.5 mm, USB-C for firmware updates and power.
• Dimensions: 65 × 32 × 32 mm; weight: 49 g.

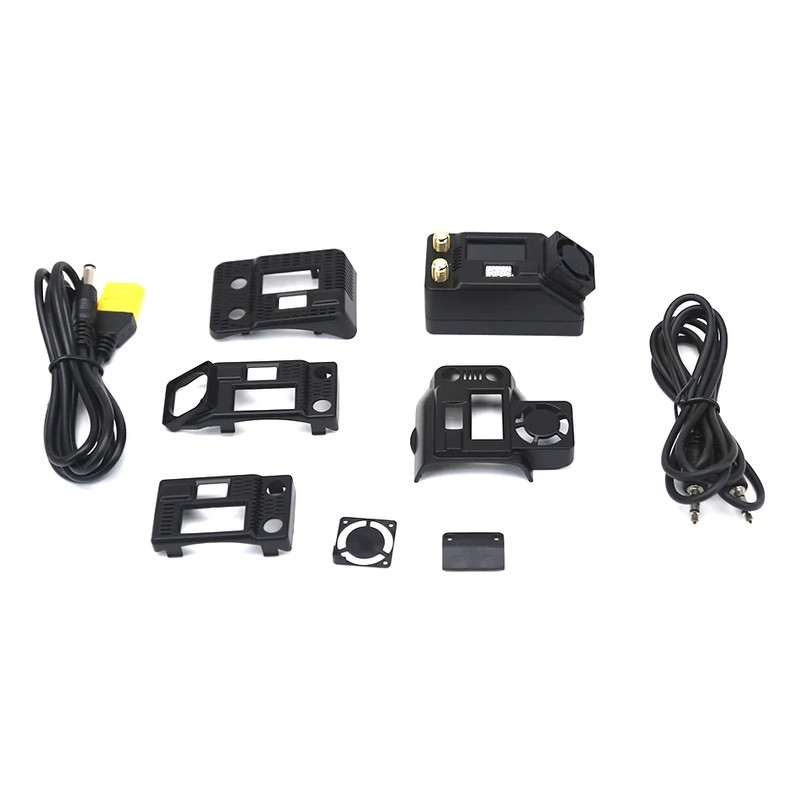

Package Contents

• 1x SteadyView X receiver module.
• 1x Module bay cover for SKY04/EV300O/COBRA/Fatshark.
• 1x Ground station kit.
• 1x Power cable with XT60-Barrel connector.
• 1x 3.5 mm video output cable.
• 1x Patch antenna.
• 1x Omni antenna.

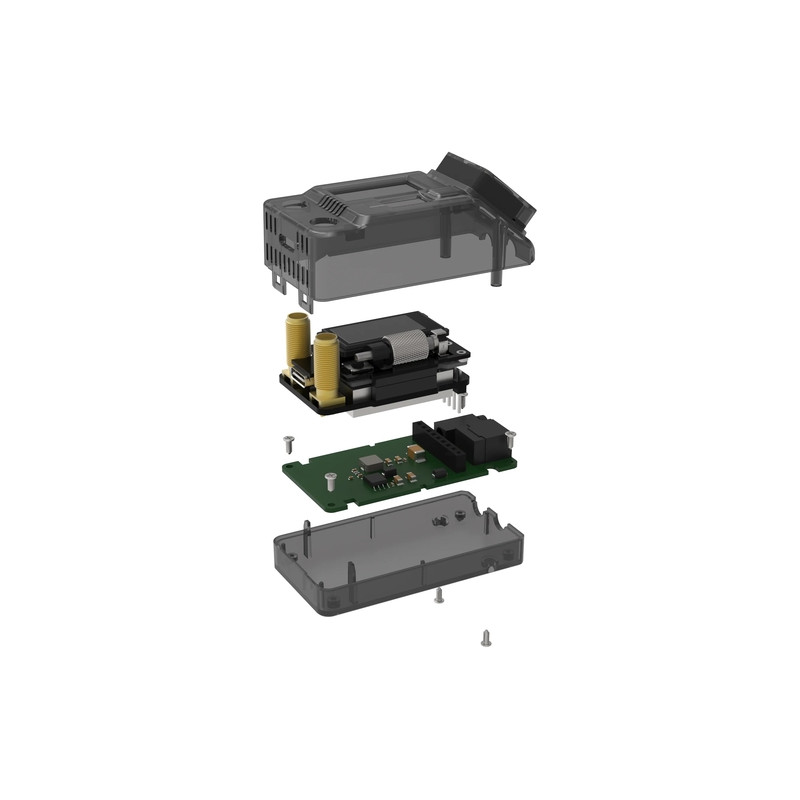

The Skyzone SteadyView X features well-thought-out hardware: two SMA connectors allow simultaneous connection of patch and omni antennas for improved directionality and coverage, while Mix and Diversity modes enable reception optimization depending on flight conditions. The presence of a narrowband filter enhances interference immunity in dense RF environments, and USB-C simplifies software updates and power without additional adapters. Its low weight and compact dimensions make the module convenient for integration into ground stations or compatible goggles, ensuring quick connection and setup in the field.

The video receiver is ideal for pilots who value compactness, a wide frequency range, and flexible reception modes. Thanks to a full set of interfaces and accessories included in the package, you get a practical kit for various scenarios — from competitions to training flights and video transmission system testing.
