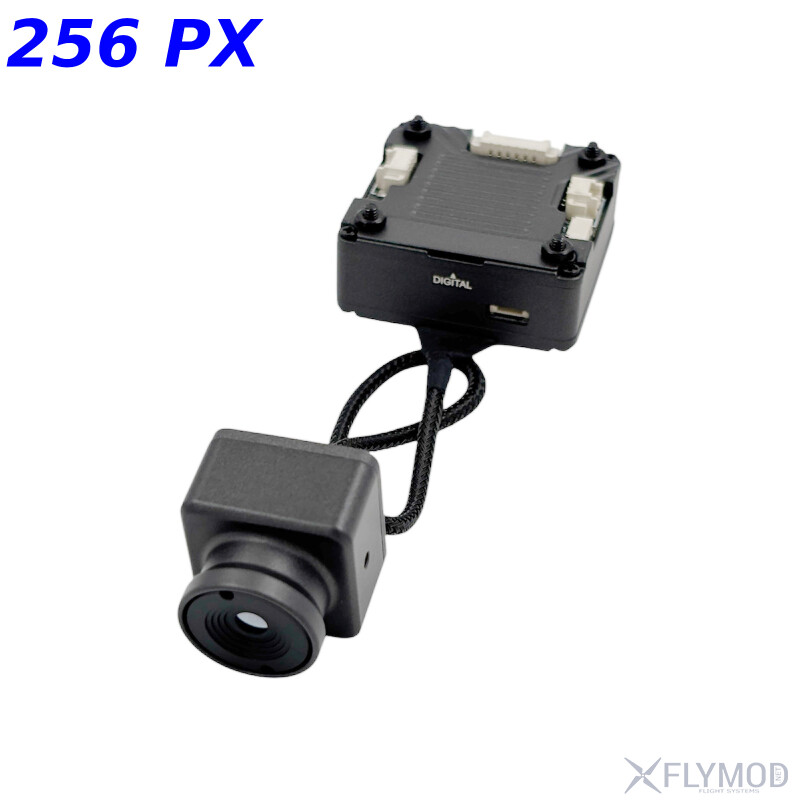

The ECLIPSE 002SL/004SL/006SL thermal imaging camera provides high-quality images thanks to vanadium oxide detectors. The models have the following resolutions: 002SL — 256x192, 004SL- 384x288, and 006SL - 640x512. The cameras operate in the mid-wave infrared range: 8-14μm for 004SL/006SL and 8-12μm for 002SL. The frame rate is up to 50 fps, ensuring smooth video. They feature compact dimensions, a CVBS analog interface, and a latency of up to 20 ms. Power is supplied at 9-24V with consumption less than 1.5W.

Features

• Operates in a wide wavelength spectrum 004SL/006SL - 8~14μm, 002SL - 8~12μm
• Low power consumption up to 1.5W with a power range of 9-24V
• Compact size and light weight

Specifications

• Detection type: uncooled vanadium oxide
• Resolution:
  • 002SL - 256x192
  • 004SL - 384x288
  • 006SL - 640x512@12um
• Wavelength range:
  • 002SL - 8~12μm
  • 004SL - 8~14μm
  • 006SL - 8~14μm
• Frame rate:
  • 002SL - 50 fps
  • 004SL - 25/50fps
  • 006SL - 25/50fps
• Power consumption:
