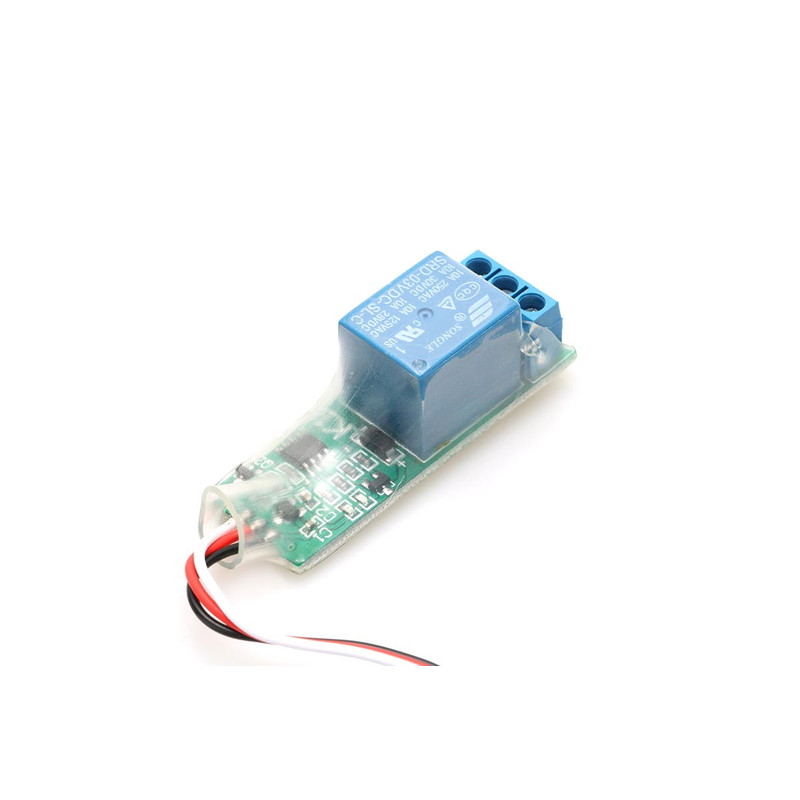

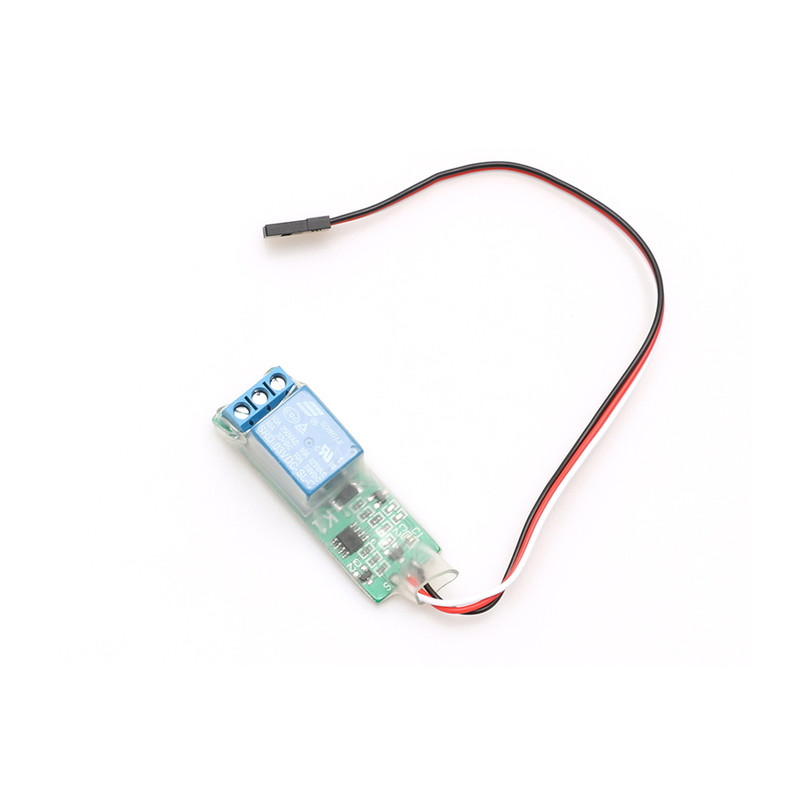

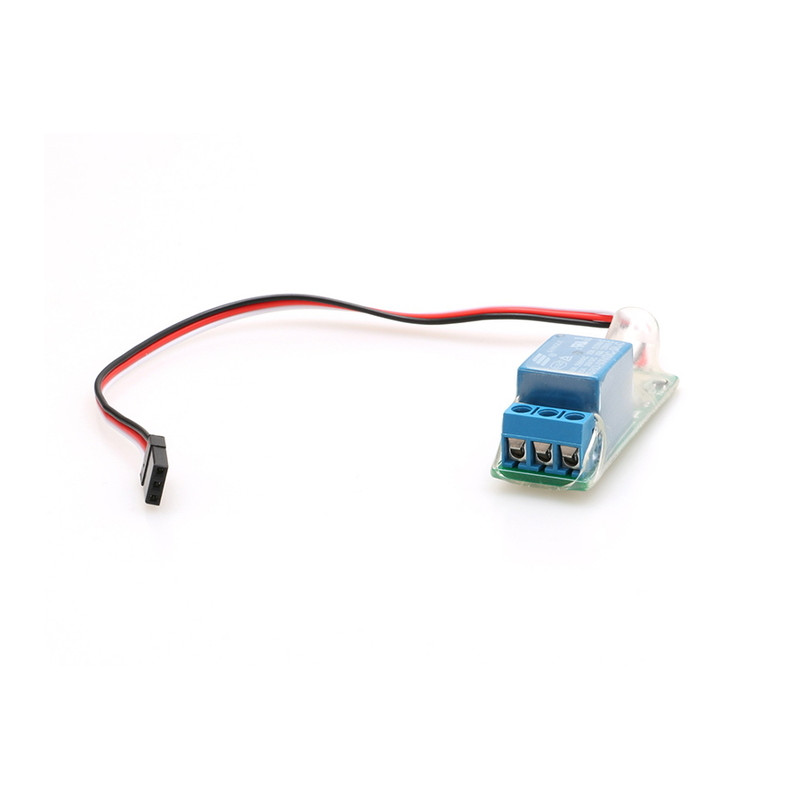

Songle PWM 5-12V 10A Relay — Reliable Load Control Module
The Songle PWM 5-12V 10A Relay is a compact and lightweight module for remote switching of electrical circuits using a PWM signal. The device is designed for use in drones, quadcopters, and other radio-controlled systems where power loads need to be controlled from a receiver or flight controller output. The module operates within a wide input voltage range of 5-12V, handles a maximum current of up to 10A, and features a single output channel for easy connection and integration into existing systems.
Key Parameters and Advantages
- Input Voltage: 5-12V — compatible with most onboard power sources.
- Maximum Current: 10A — suitable for medium-power loads.
- PWM Control: Yes — allows relay control from a PWM output.
- Output Channel: Single — controls one load for easy installation.
- Materials: Plastic, stainless metal, rubber — durable construction.
- Country of Manufacture: China.
The relay has an unlimited shelf life provided storage recommendations are followed. The module does not contain a lithium battery, which simplifies transportation and storage. To connect, attach the relay to the switching circuit and the control cable to the PWM output of the receiver or flight controller; to activate, set the level above 1700 µs. Operating recommendations: avoid mechanical impacts, use compatible electronics, and do not overload the relay to prevent overheating and damage.
Storage Conditions and Safety
Store the module in a place protected from direct sunlight; away from fire, moisture, and children; at temperatures from -10°C to +30°C. Warning: avoid mechanical impacts; use compatible electronics; do not overload the module to avoid damage and safety risks.
| Specifications Songle PWM 5-12V 10A Relay | Value |
|---|---|
| Input Voltage | 5-12 V |
| Maximum Current | 10 A |
| PWM Control | Yes |
| Output Channel | One |
| Country of Manufacture | China |
| Materials | Stainless plastic, metal, rubber |
| Shelf Life | Unlimited |
| Contains Lithium Battery | No |
| Storage Conditions | In a place protected from direct sunlight; away from fire, moisture, and children; at temperatures -10°C – +30°C. |
| Warning | Avoid mechanical impacts; use compatible electronics; do not overload. |
| Instructions | Connect the relay to the switching circuit, and the control cable to the PWM output of the receiver/flight controller; to activate, set the level above 1700 µs. |
| Unit of Measurement | 1 pc |
| Package Type | Bag |
| Weight in Package | 0.015 kg |
| Package Length | 11 cm |
| Package Width | 7 cm |
| Package Height | 2 cm |
| Package Dimensions | 11x7x2 cm |
| Package Volume | 0.0001 m. cube. |
| Quantity per Box | 1 pc |
The Songle PWM 5-12V 10A Relay is an excellent choice for those who need a simple and reliable solution for remote load control in electronic and radio-controlled systems. Thanks to its compatibility with PWM signals from modern receivers and controllers, it provides precise and prompt switching with minimal size and weight. Product category: Drones and Quadcopters > Drone Accessories.
